Ignition System
›
Firing Order
›
Firing Order (Galant 2.0L SOHC)
Firing Order (Galant 2.0L SOHC)

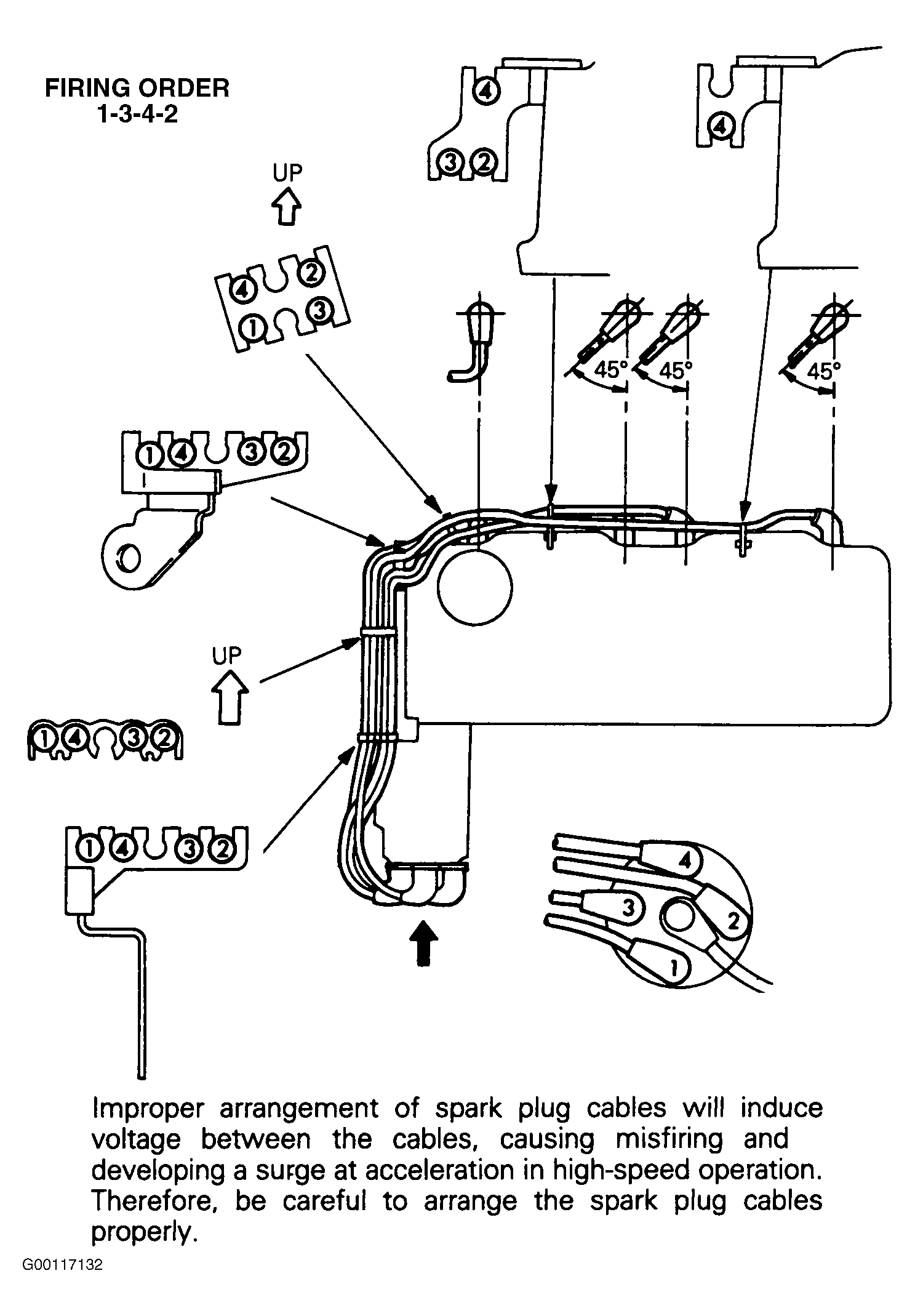

Fig 1: Firing Order & Plug Wire Routing (Galant 2.0L SOHC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
