Component Locations

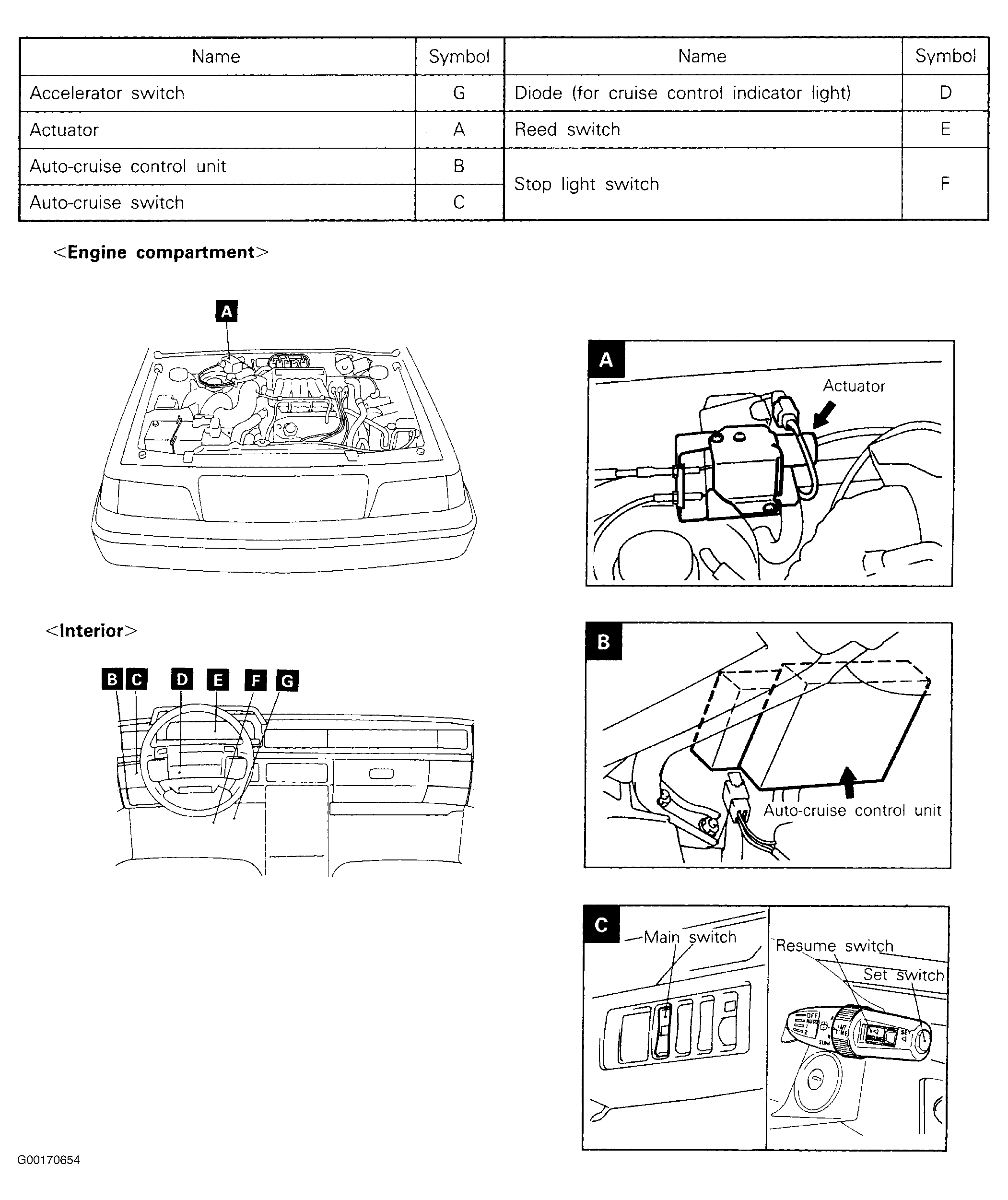

Fig 1: Locating Cruise Control Electrical Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

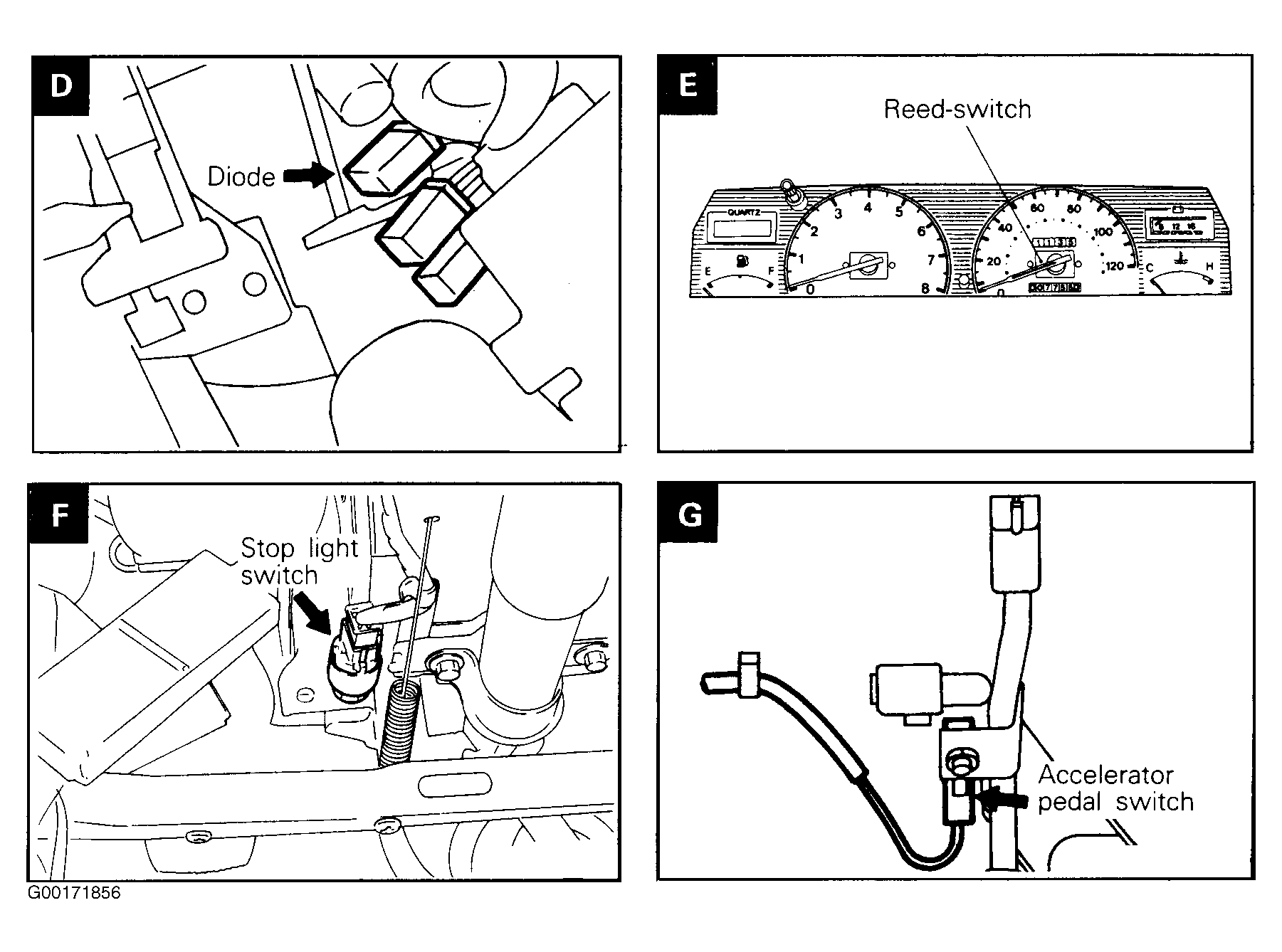

Fig 2: Locating Cruise Control Electrical Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

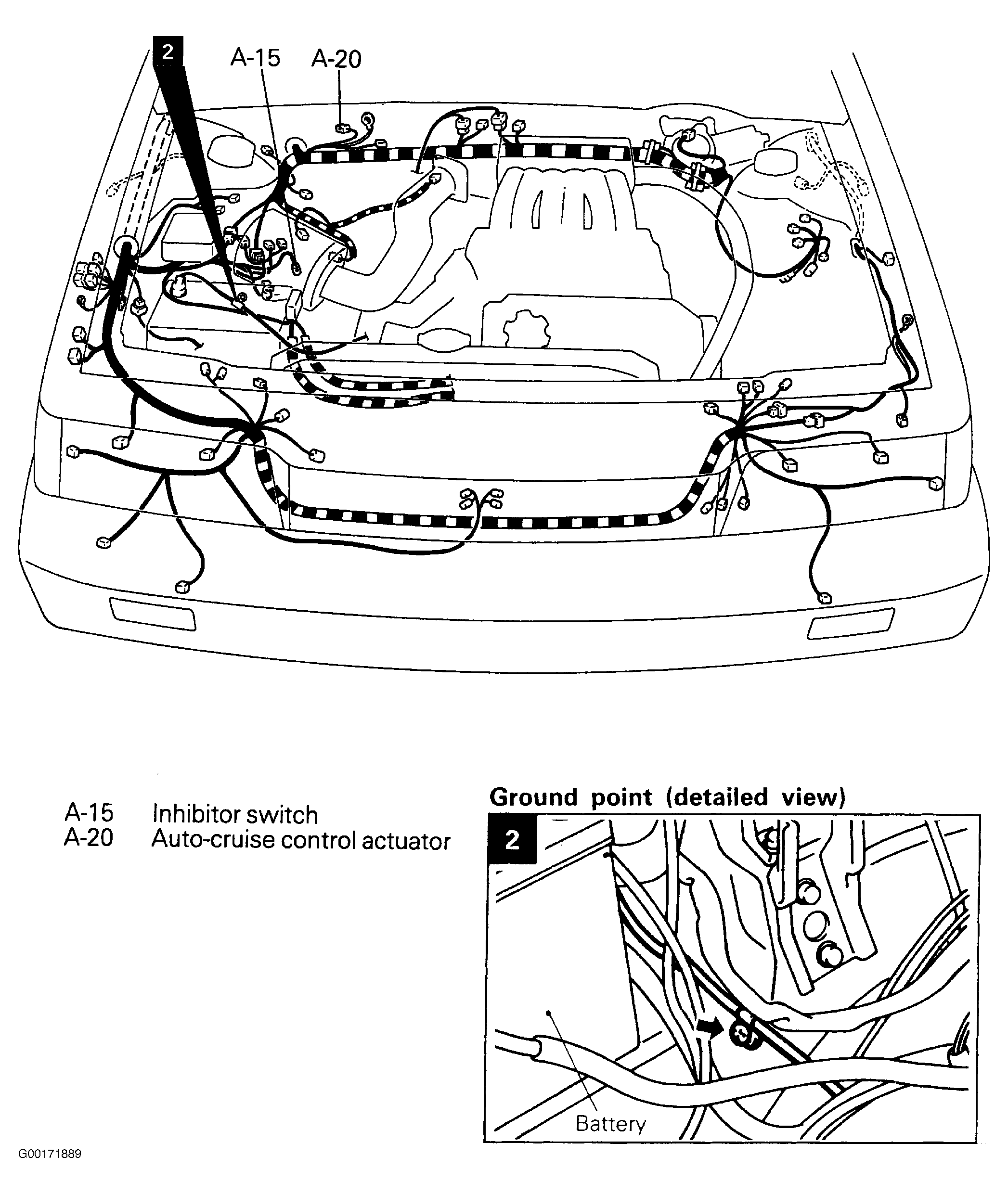

Fig 3: Locating Engine Compartment Wiring Harness & Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

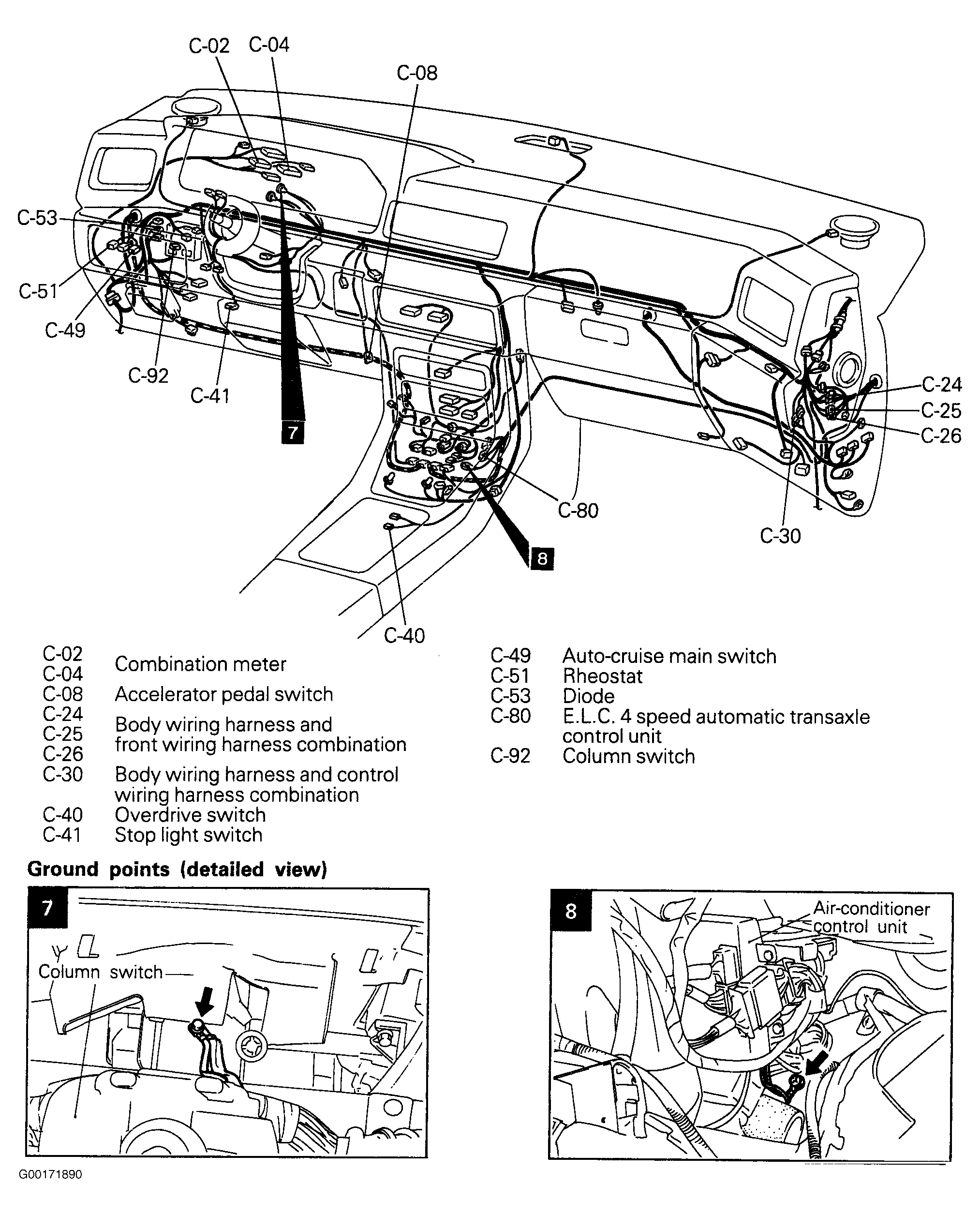

Fig 4: Locating Dash/Instrument Panel Wiring Harness & Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

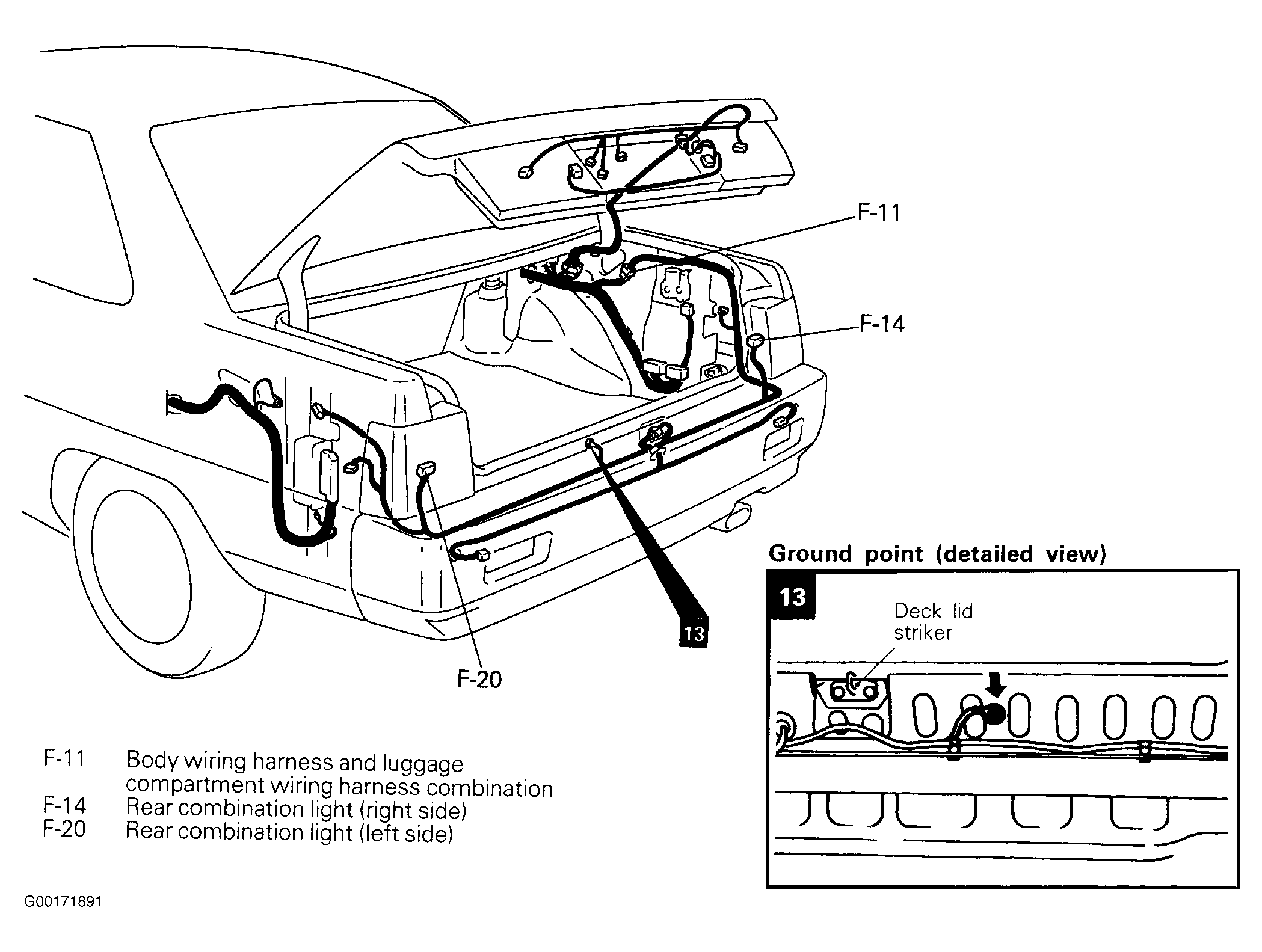

Fig 5: Locating Luggage Compartment Wiring Harness Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
