Remote Control Mirror Assembly

For component testing, see Fig 1 .

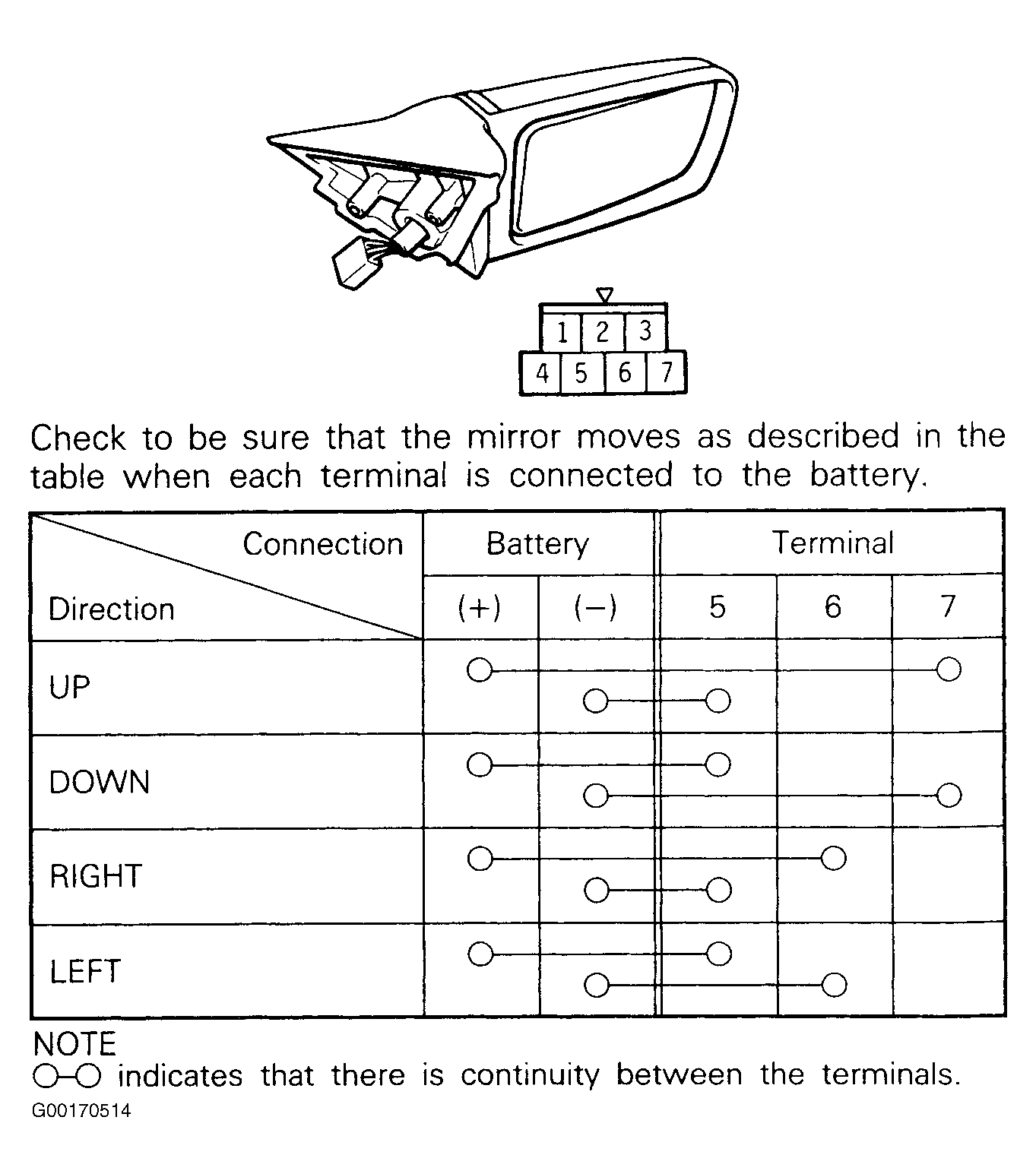

Fig 1: Testing Remote Control Mirror Assembly
G00170514Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
