Power Window Assembly

For help in troubleshooting power window assembly, see Fig 1 and Fig 2 .

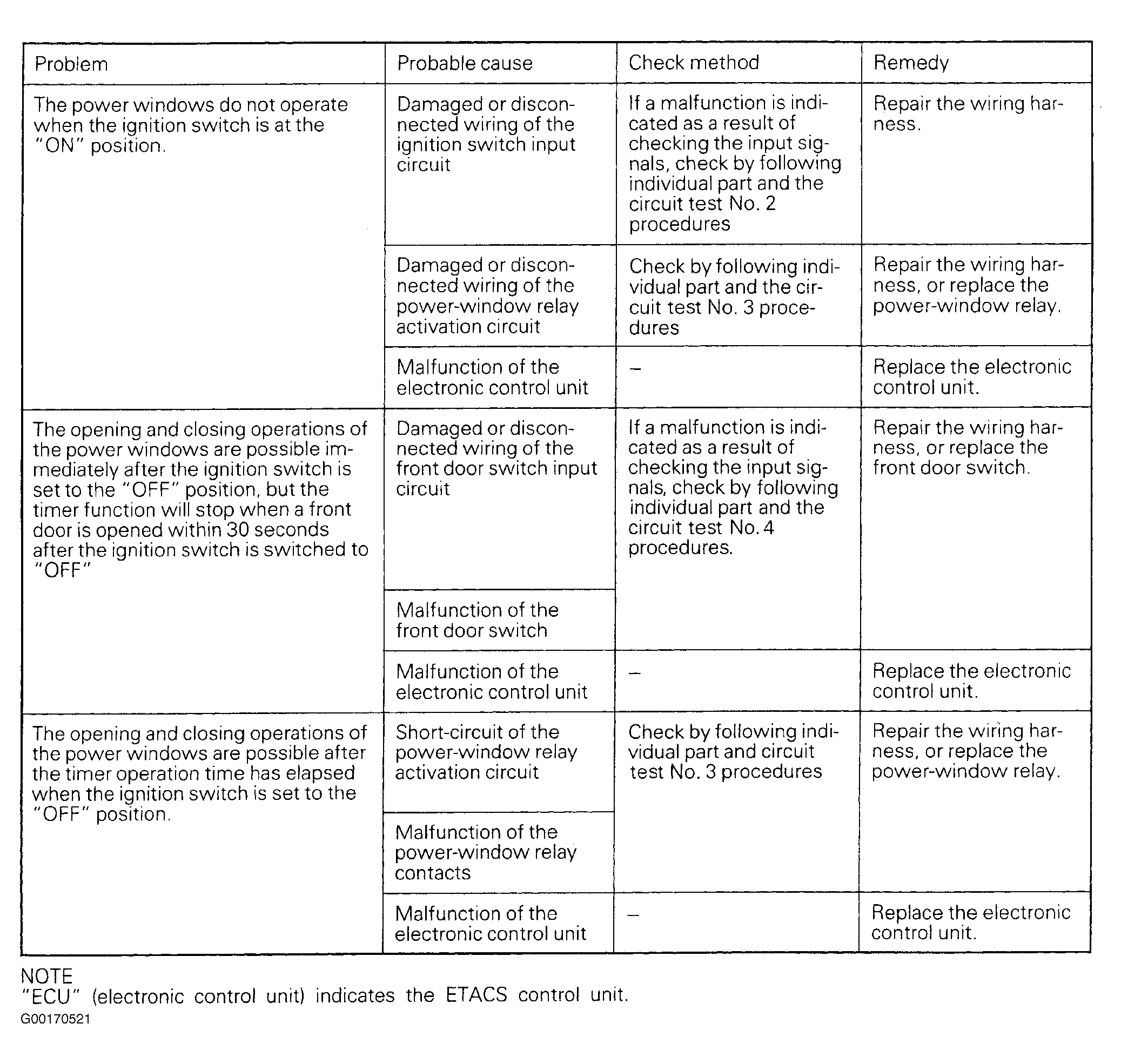

Fig 1: Trouble Shooting Quick Reference Table (ETACS)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

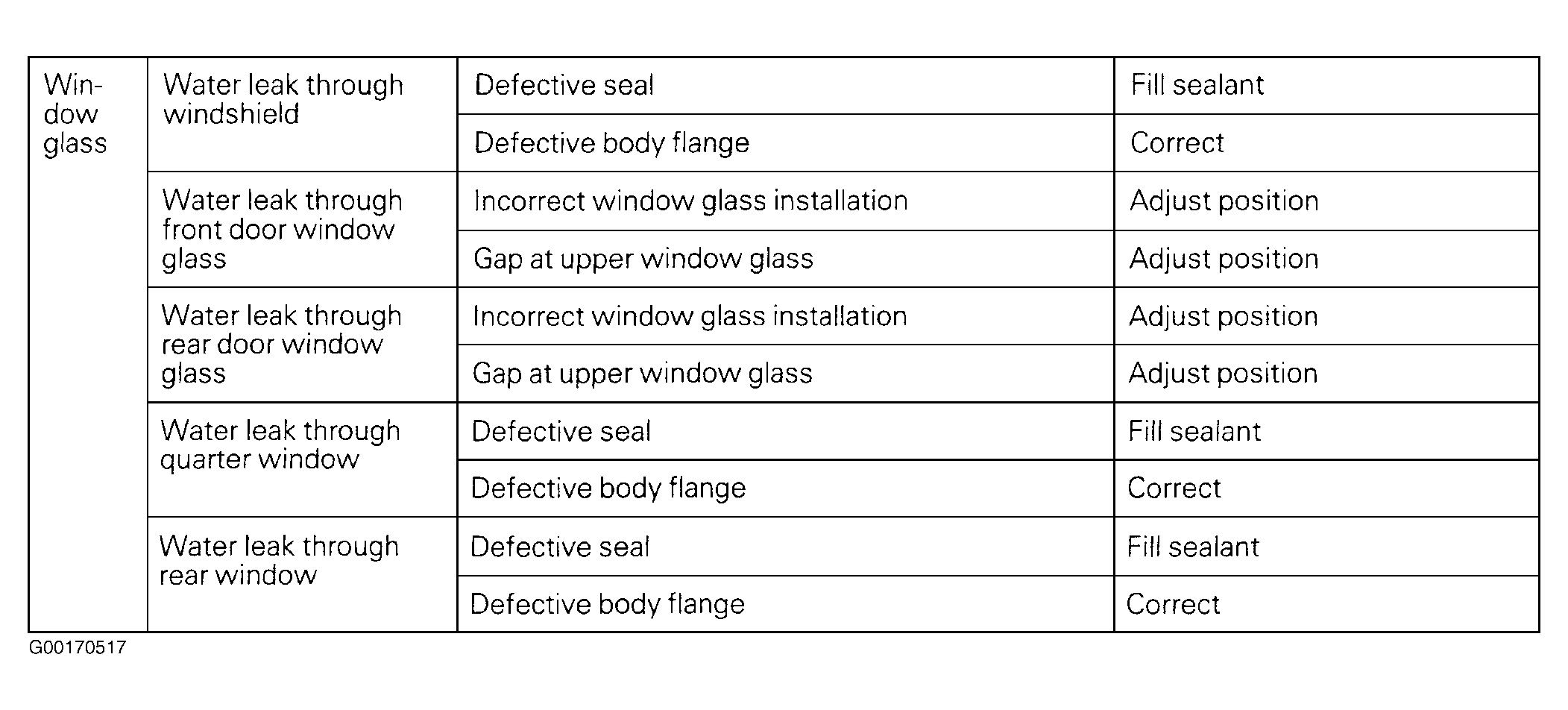

Fig 2: Window Glass Trouble Shooting Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
