Remote Control Mirror Assembly

For testing procedure, see Fig 1 .

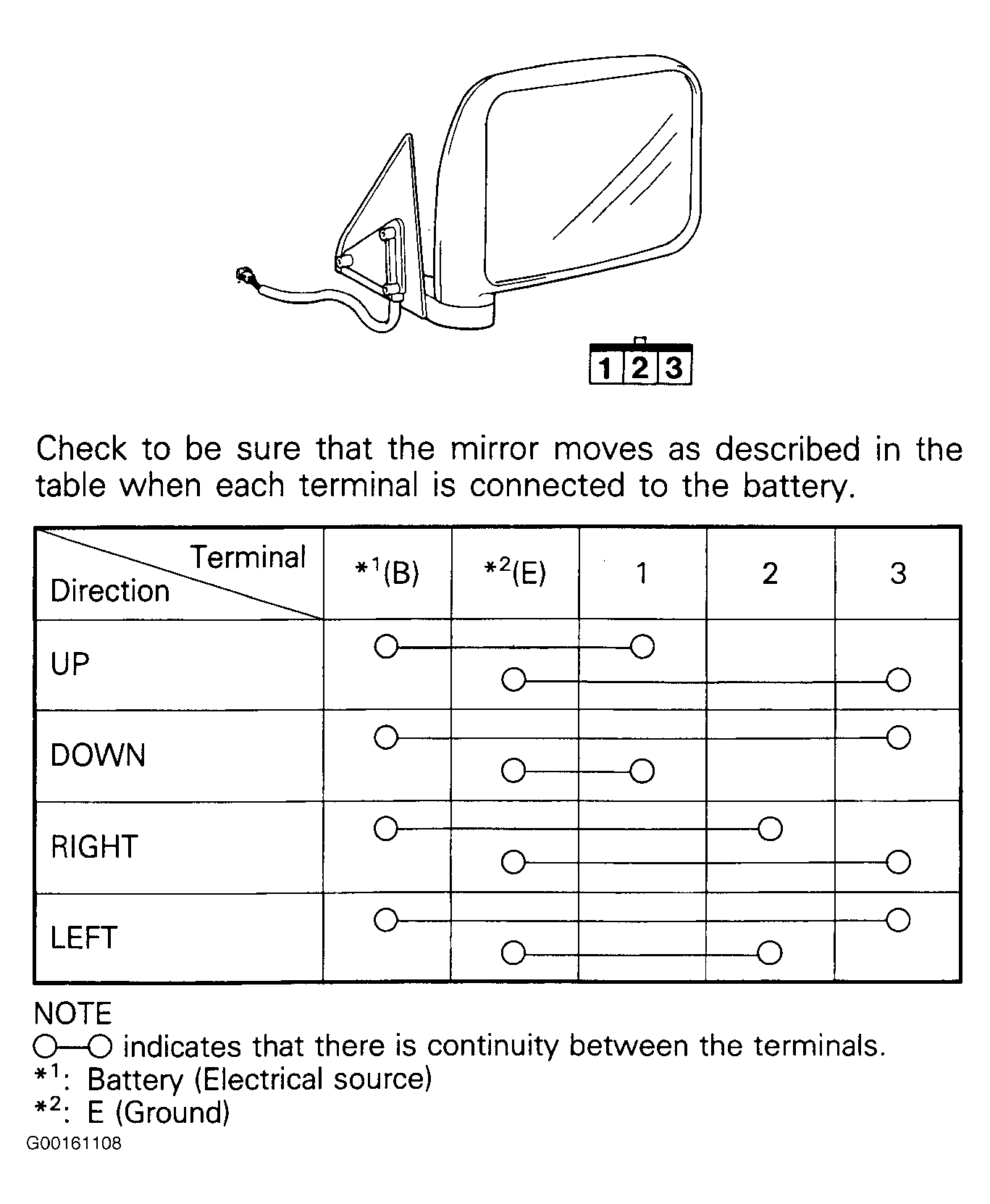

Fig 1: Testing Remote Control Mirror Assembly

G00161108

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
