Remote Control Mirror Switch

For testing procedure, see Fig 1 .

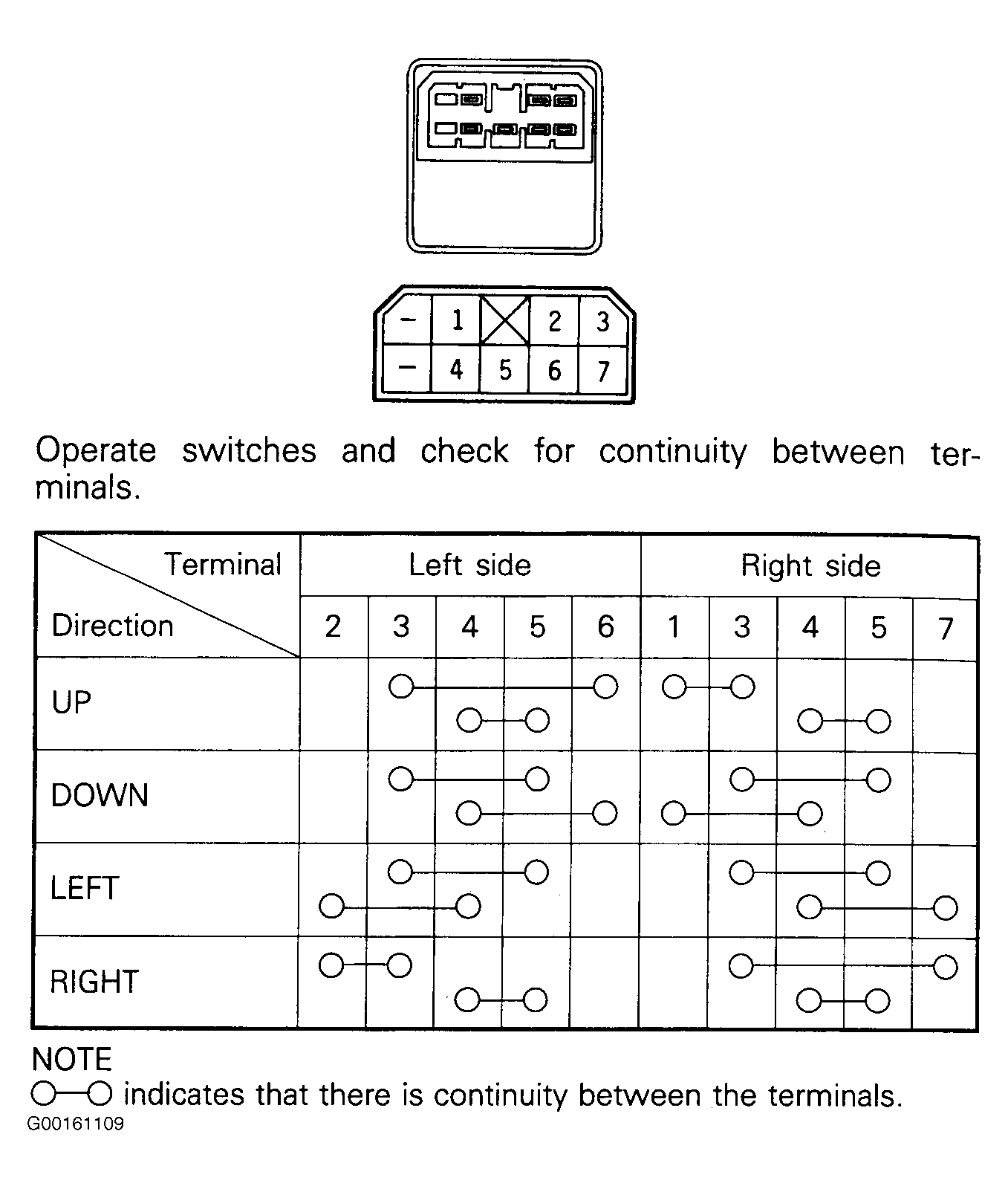

Fig 1: Testing Remote Controlled Mirror Switch

G00161109

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
