Cruise Control Unit Signal Circuit

Disconnect the connector of the cruise control unit and then check at the body side wiring harness according to the chart. See Fig 1 -Fig 3 .

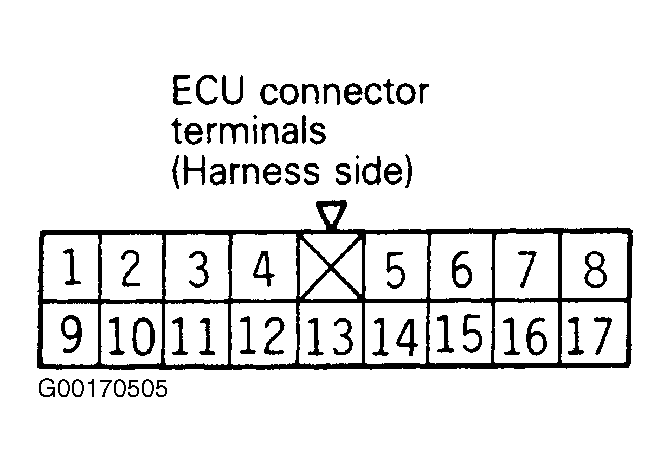

Fig 1: Identifying ECU Connector Terminals (Harness Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

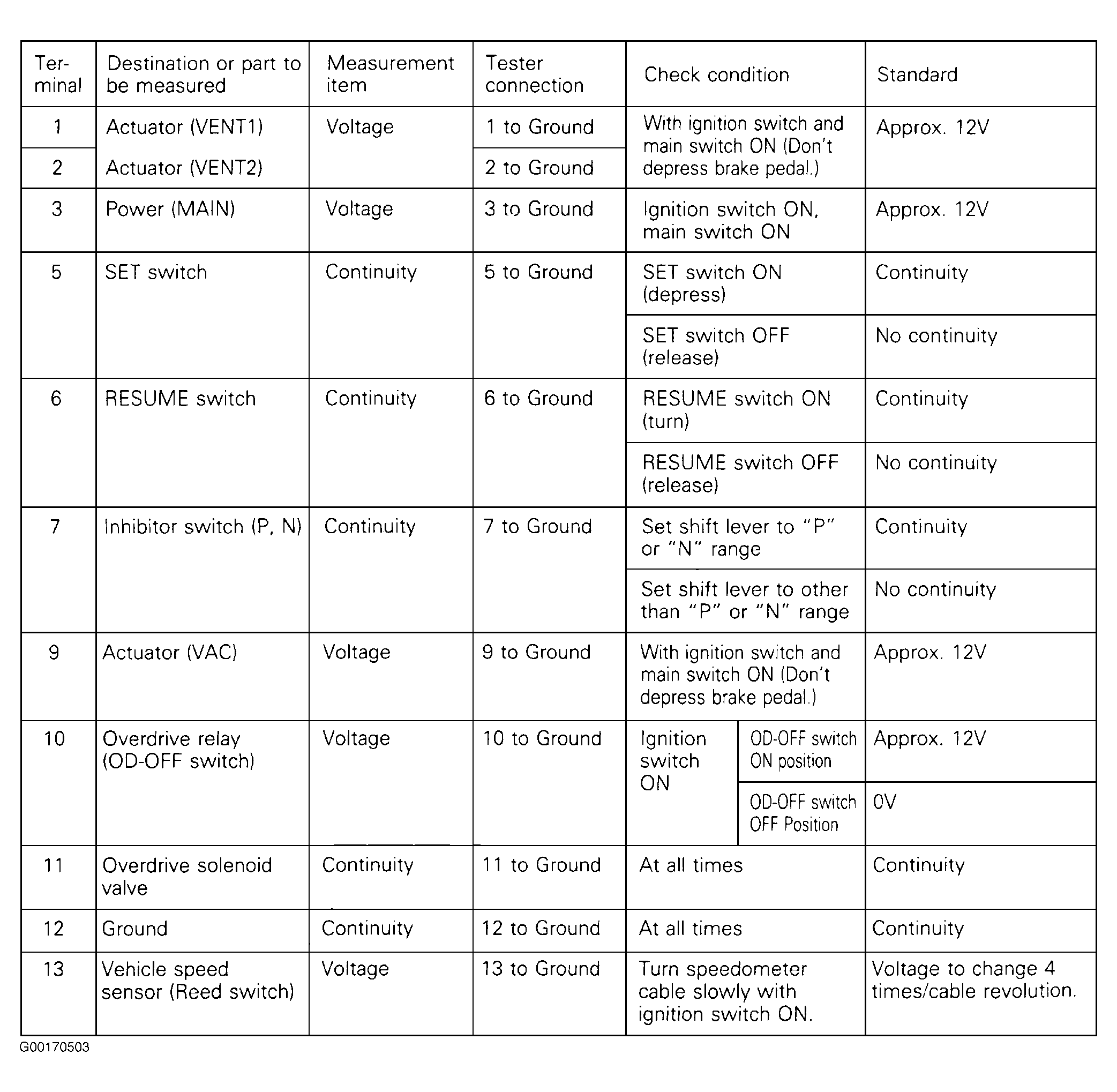

Fig 2: Testing Cruise Control Unit Signal Circuit Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

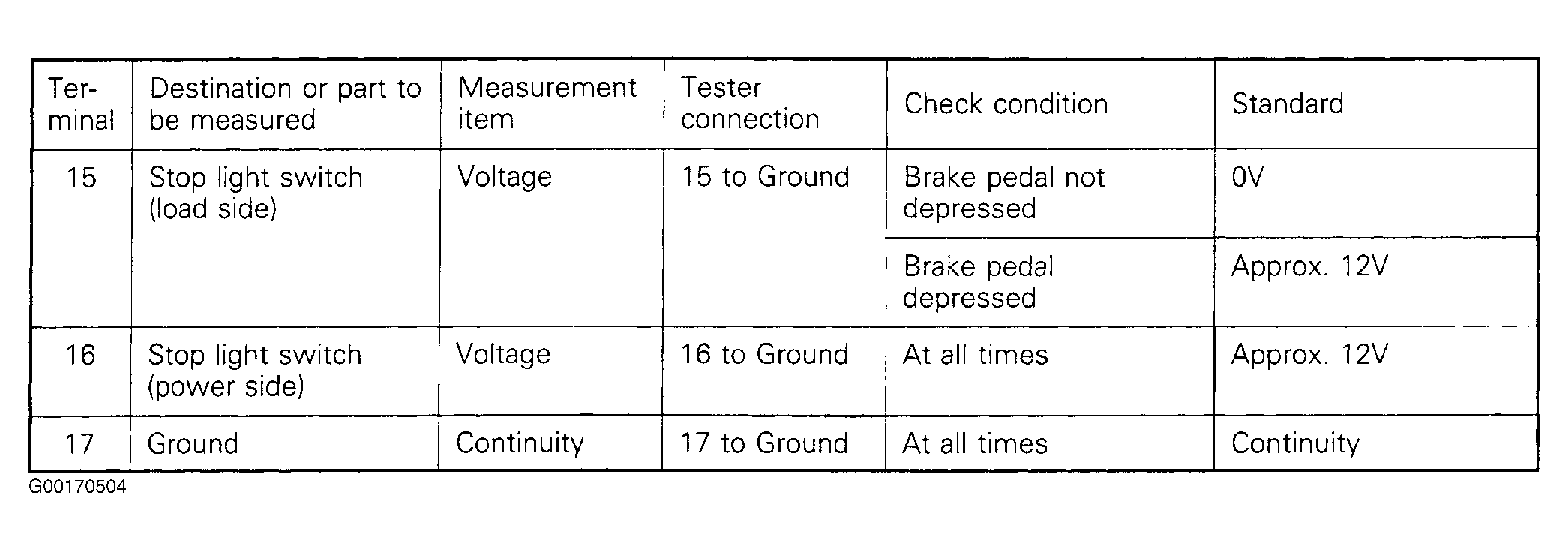

Fig 3: Testing Cruise Control Unit Signal Circuit Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
