Vehicle Speed Sensor

Using an ohmmeter, check that continuity and discontinuity alternates between terminals 4 times at every rotation of the shaft of the speedometer cable connection. See Fig 1 .

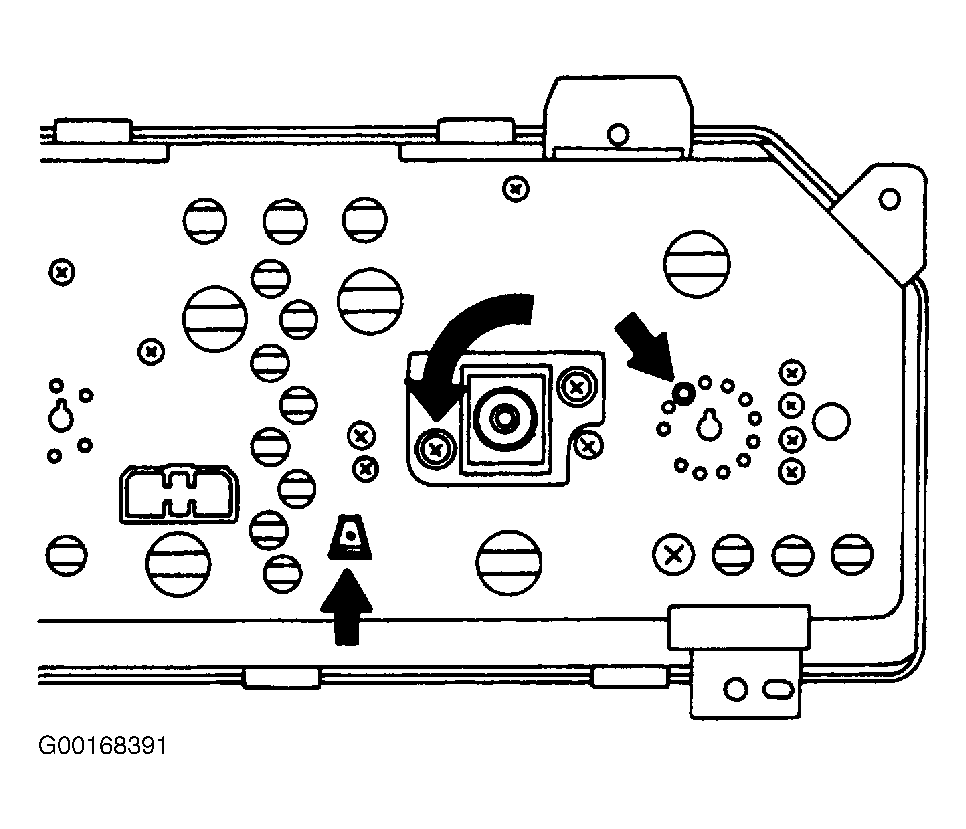

Fig 1: Testing Vehicle Speed Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
