Component Location
Component Location
NOTE:
The multipurpose (passenger compartment) fuse block is under lower left side of dash.

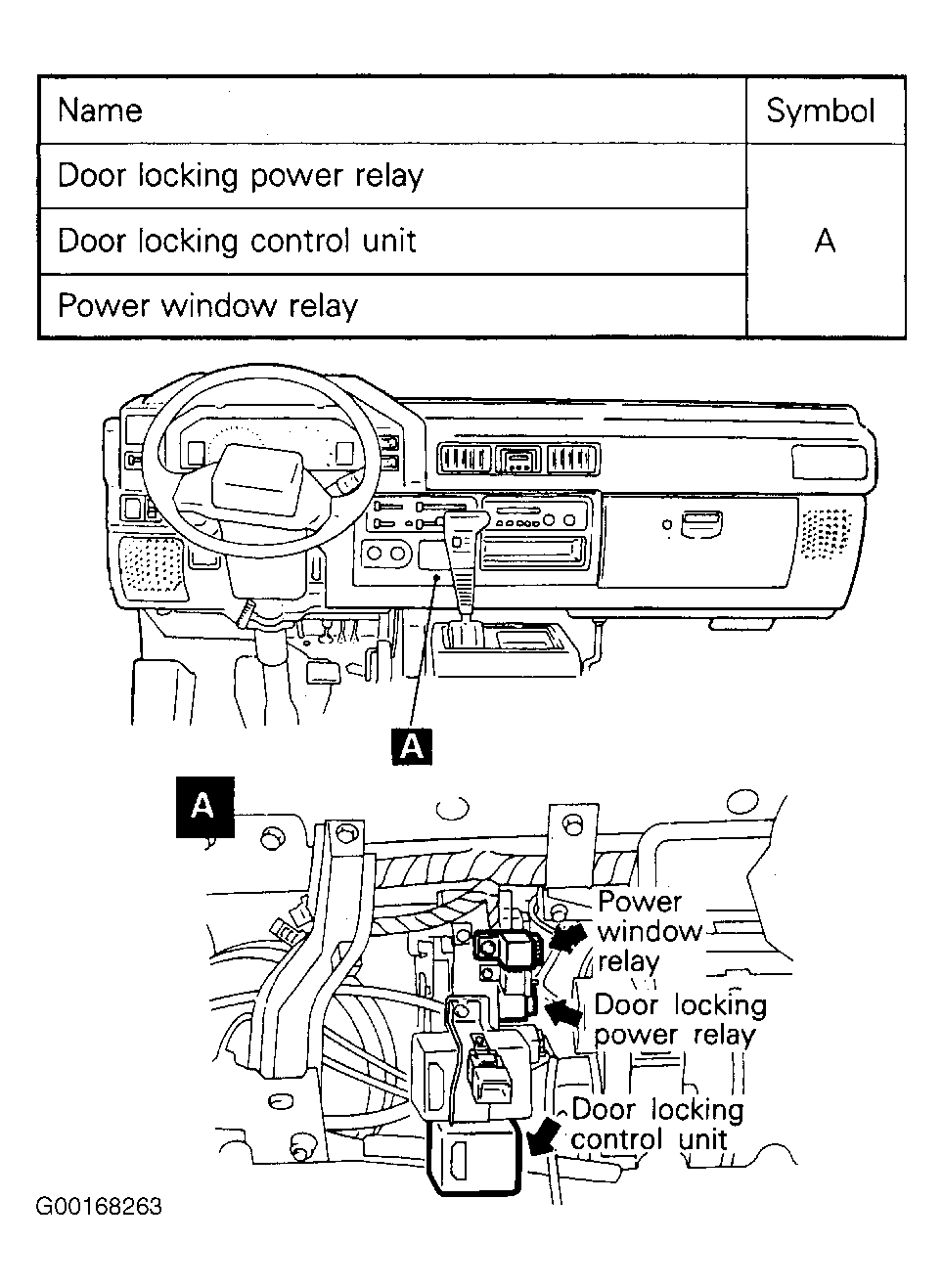

Fig 1: Locating Power Window Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
