Power Window Relay
Power Window Relay

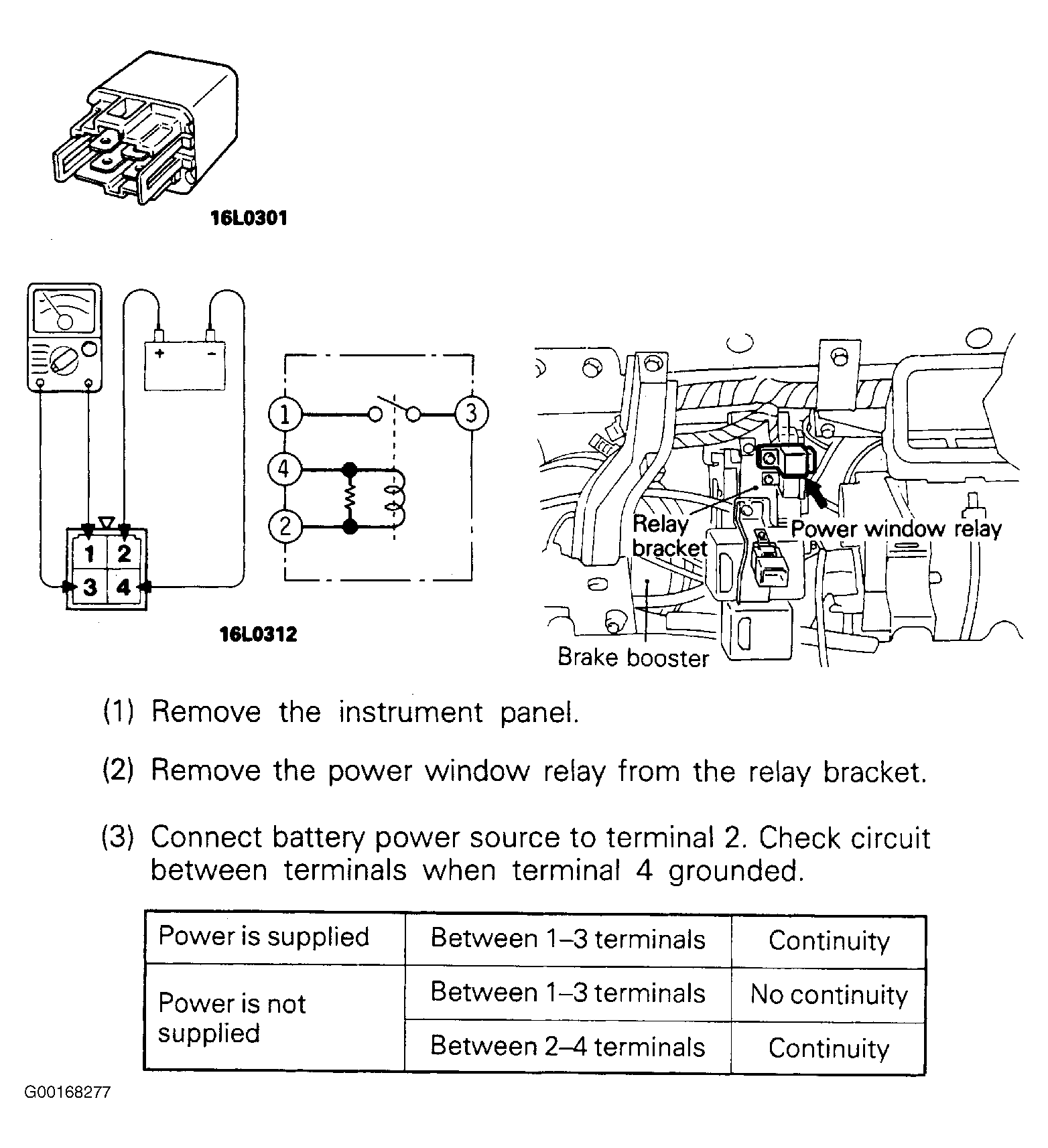

Fig 1: Testing Power Window Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
