Dr-11: Code 24 Vehicle Speed Sensor Circuit

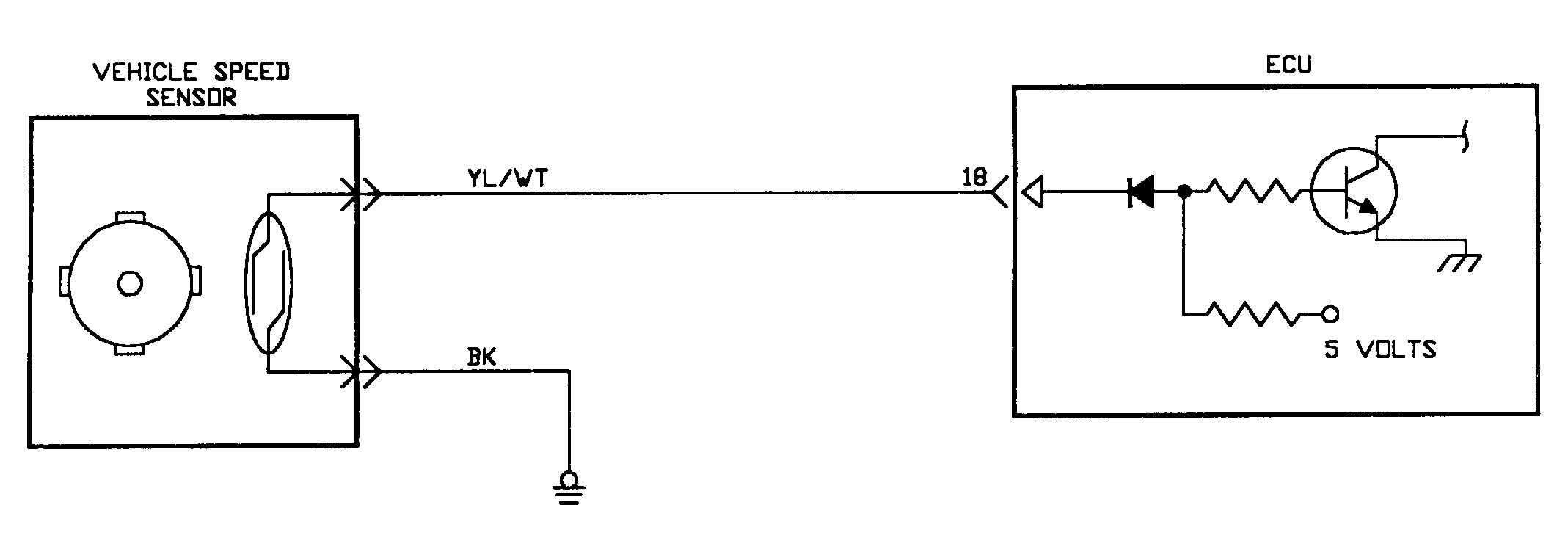

Fig 1: Circuit Diagram DR-11 (2.4L)

G90B19993

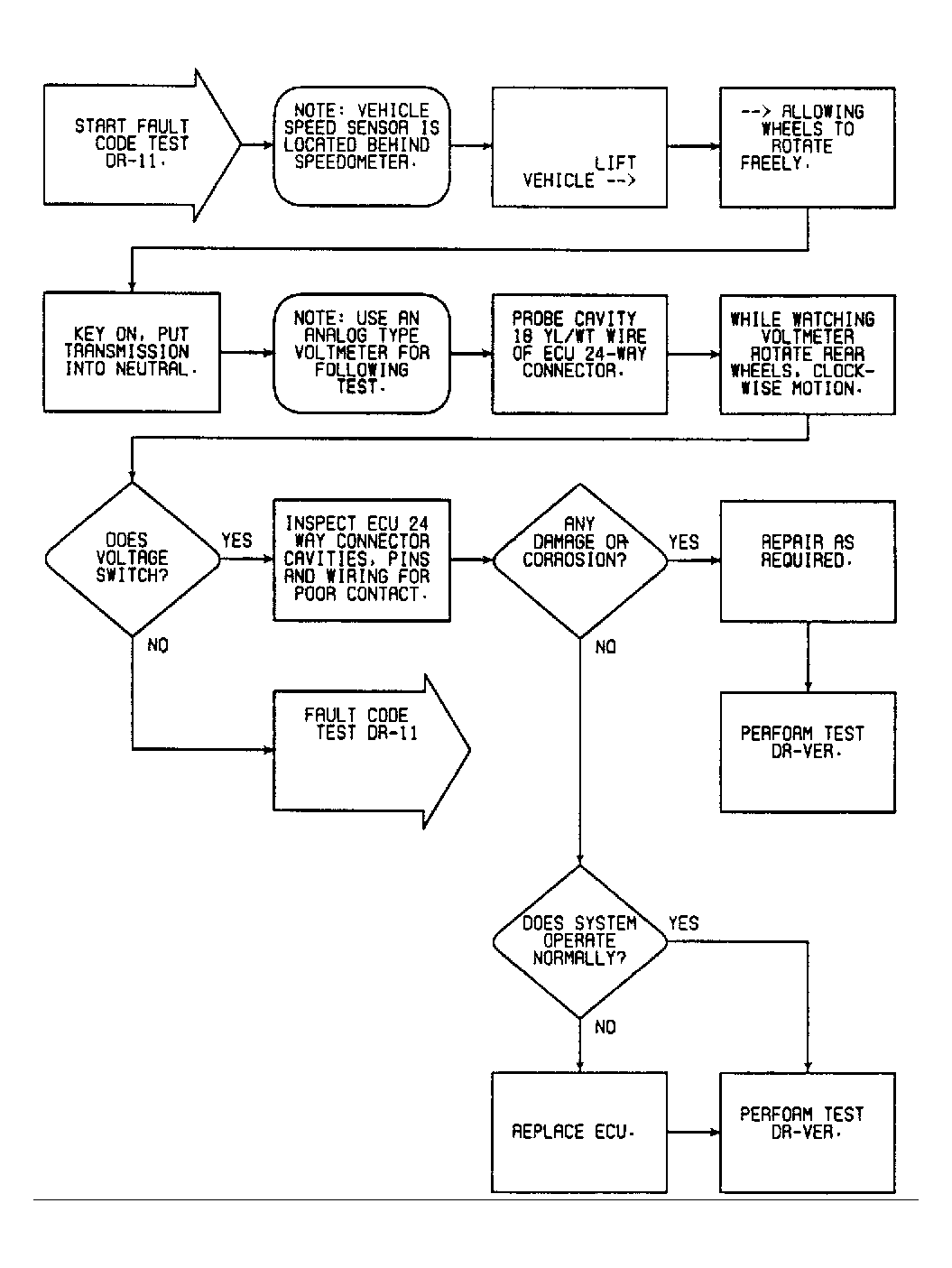

Fig 2: Flow Chart DR-11 (2.4L) (1 of 2)

G90A20040

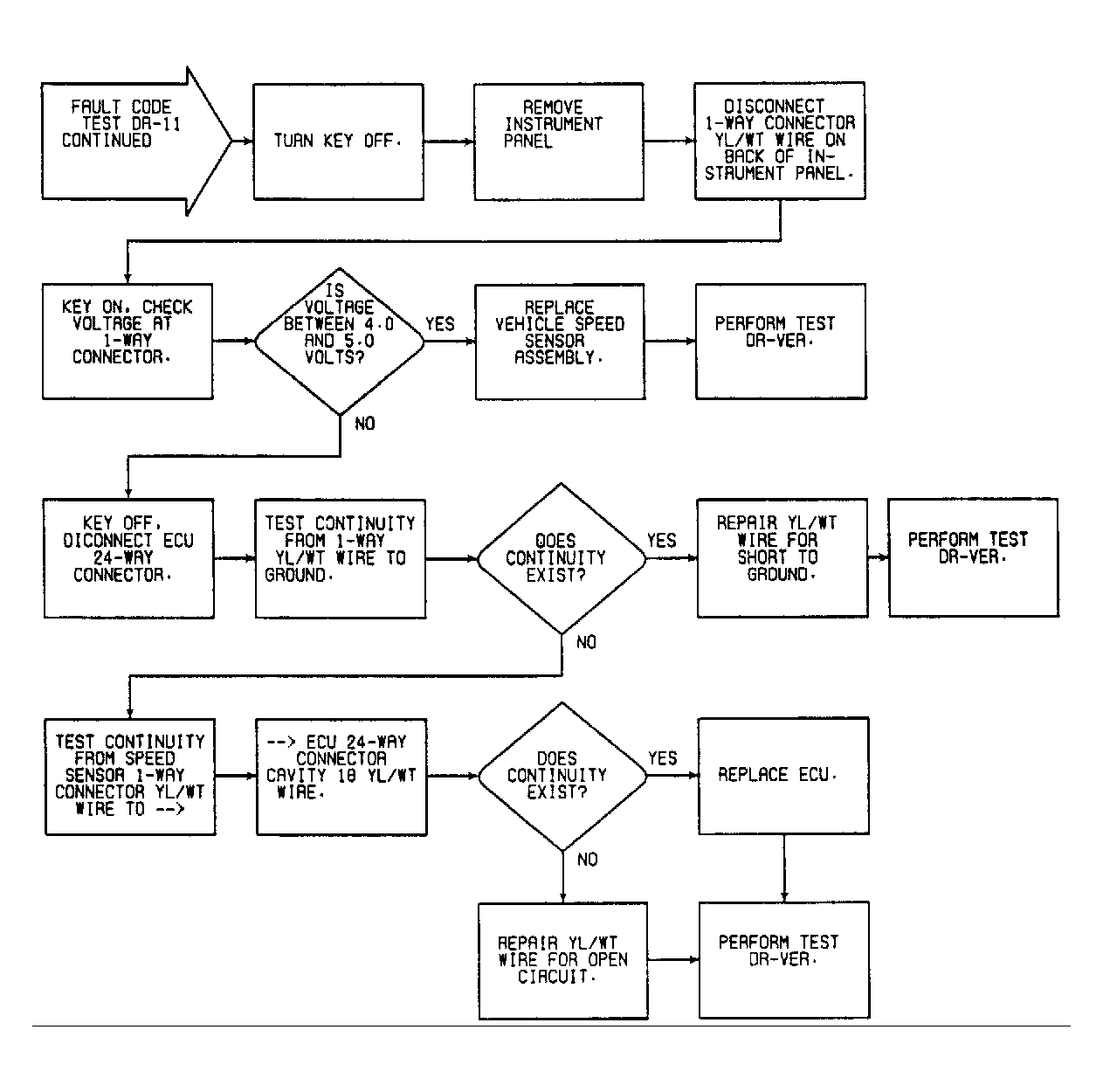

Fig 3: Flow Chart DR-11 (2.4L) (2 of 2)

G90B20041
