Dr-14: Code 42 Fuel Pump Control Circuit

Fig 1: Circuit Diagram DR-14 (2.4L)

G90F19997

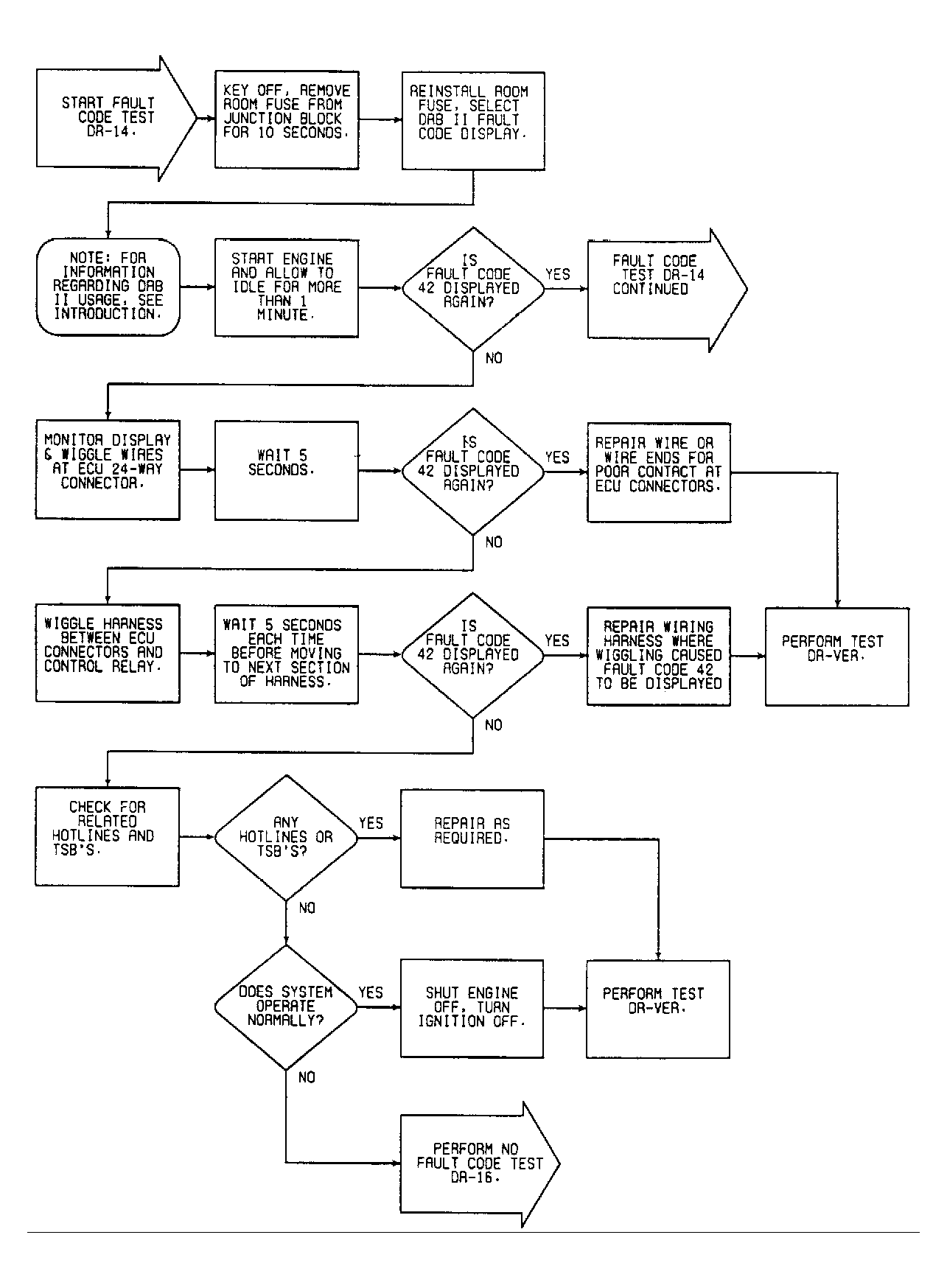

Fig 2: Flow Chart DR-14 (2.4L) (1 of 2)

G90J20049

Fig 3: Flow Chart DR-14 (2.4L) (2 of 2)

G90D20050
