Dr-20: No Fault Code Purge Control Test
Dr-20: No Fault Code Purge Control Test

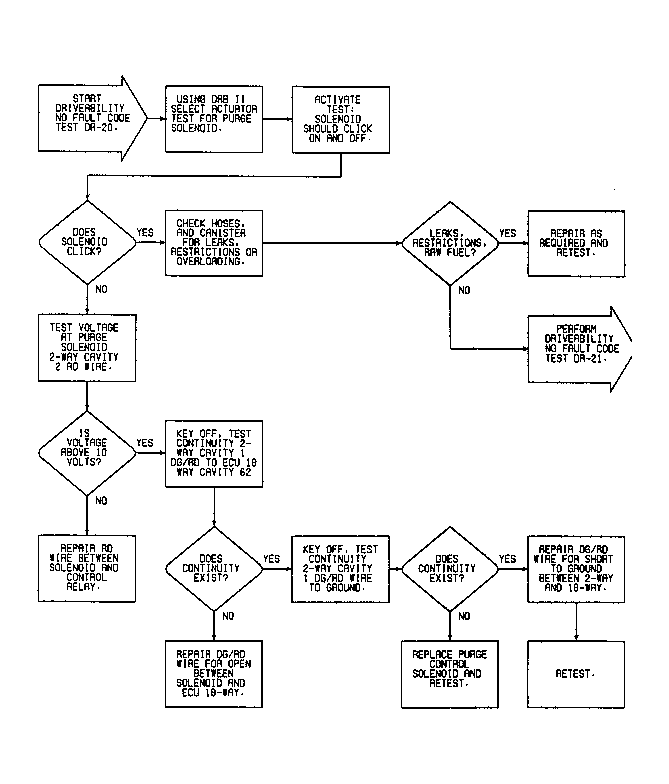

Fig 1: Flow Chart DR-20 (2.4L)
