Dr-2: Code 11 Oxygen Sensor Circuit
Dr-2: Code 11 Oxygen Sensor Circuit

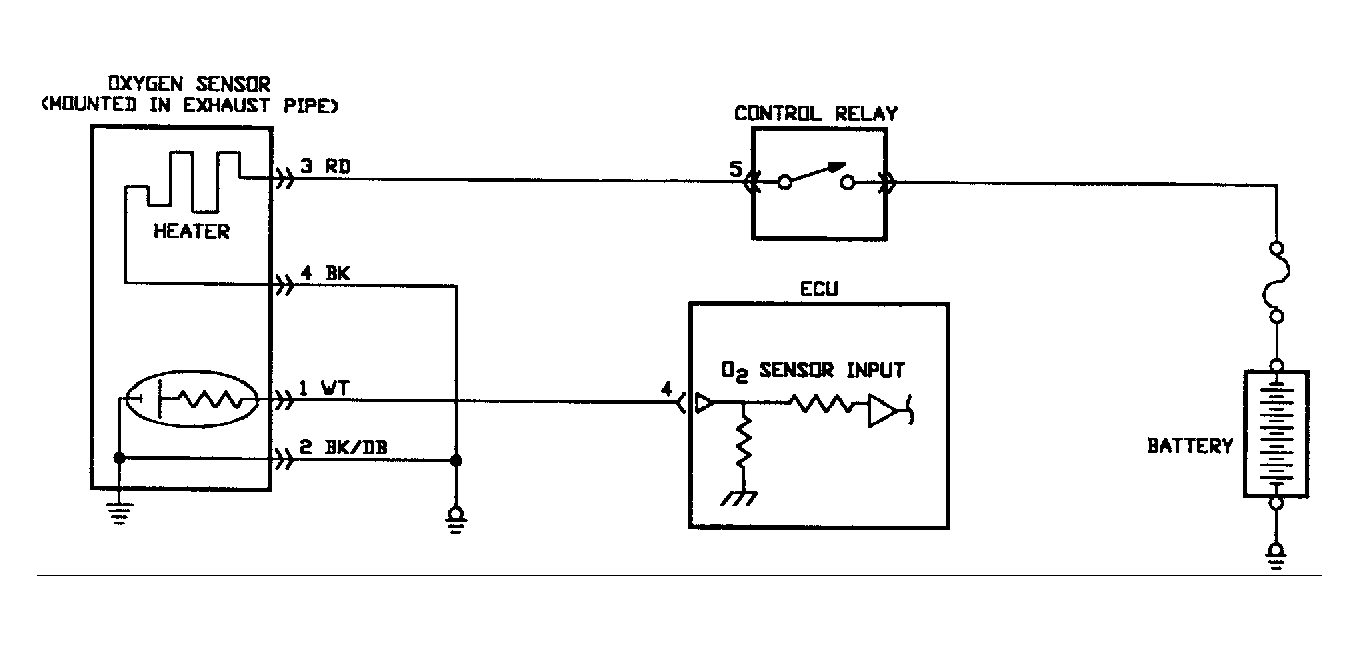

Fig 1: Circuit Diagram DR-2 (3.0L)

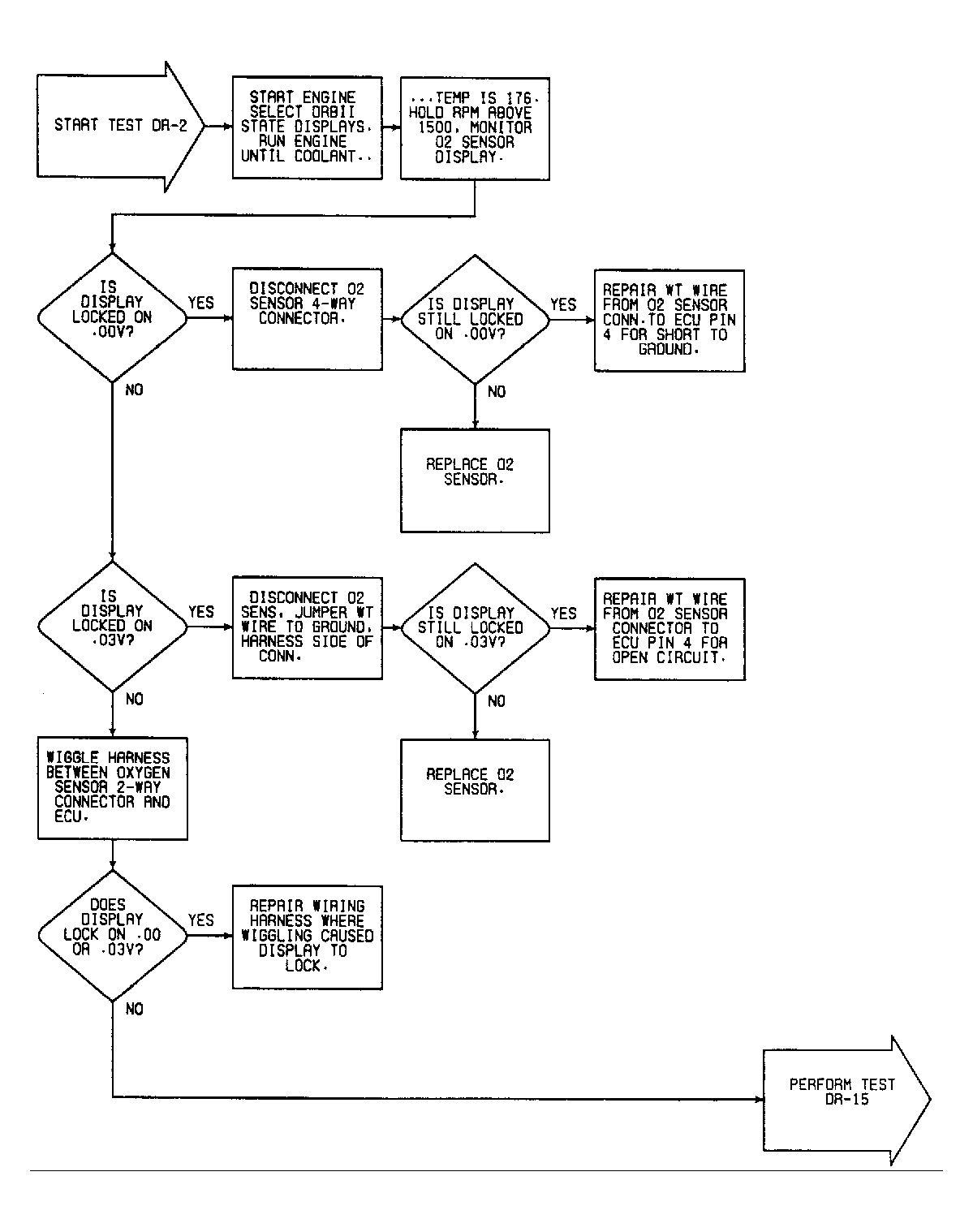

Fig 2: Flow Chart DR-2 (3.0L)
