NS-1: Testing Ignition Circuit

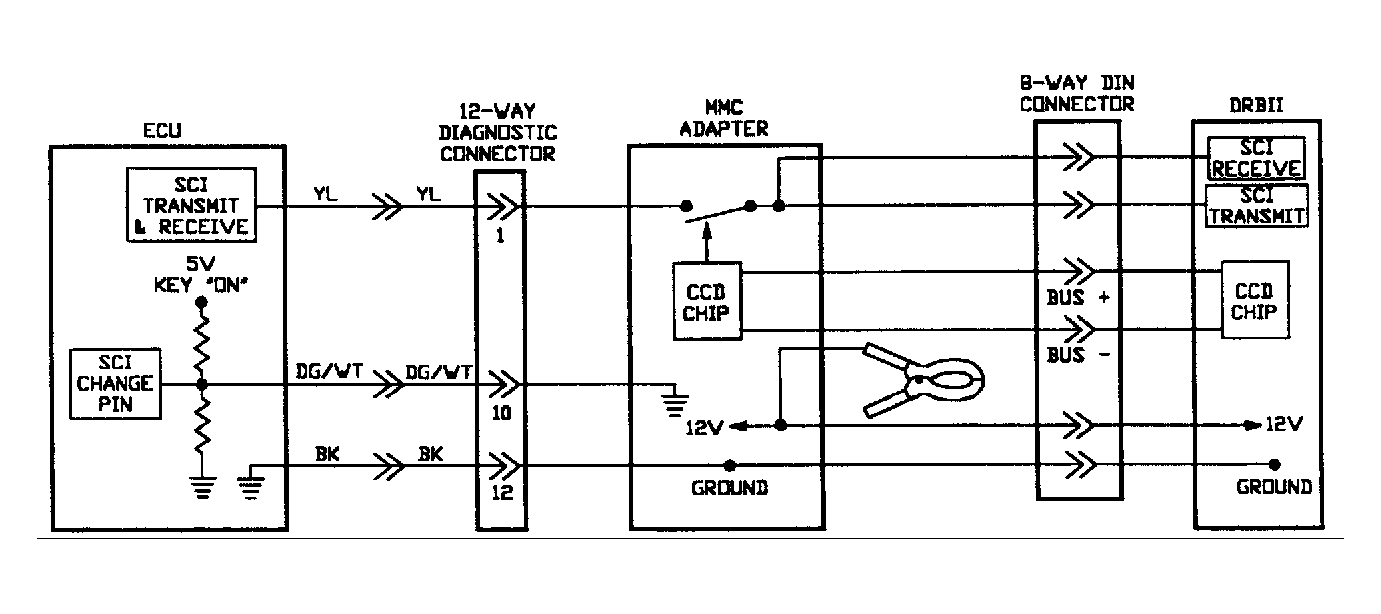

Fig 1: Circuit Diagram NS-1 (3.0L)

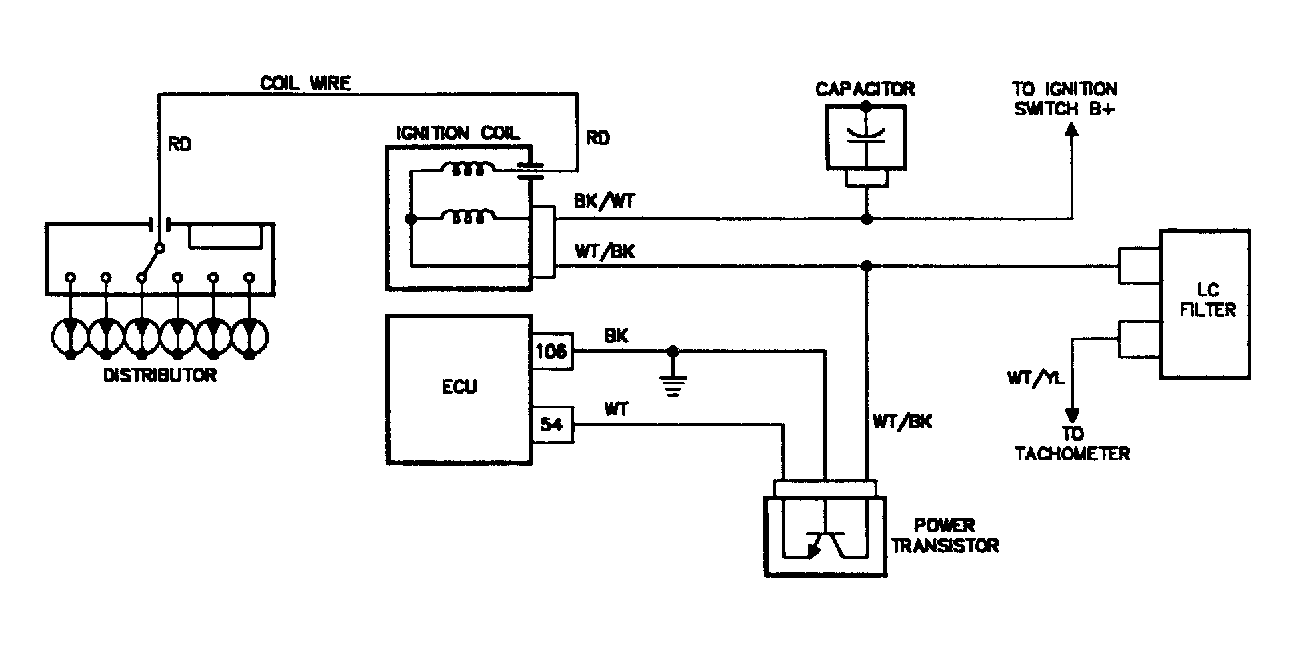

Fig 2: Circuit Diagram NS-1 (3.0L)

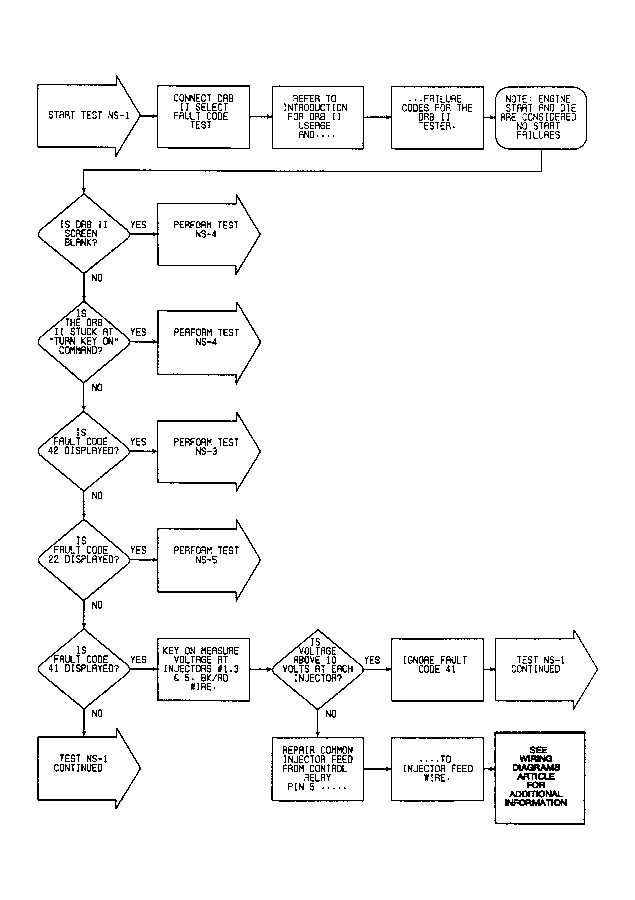

Fig 3: Flow Chart NS-1 (3.0L) (1 of 3)

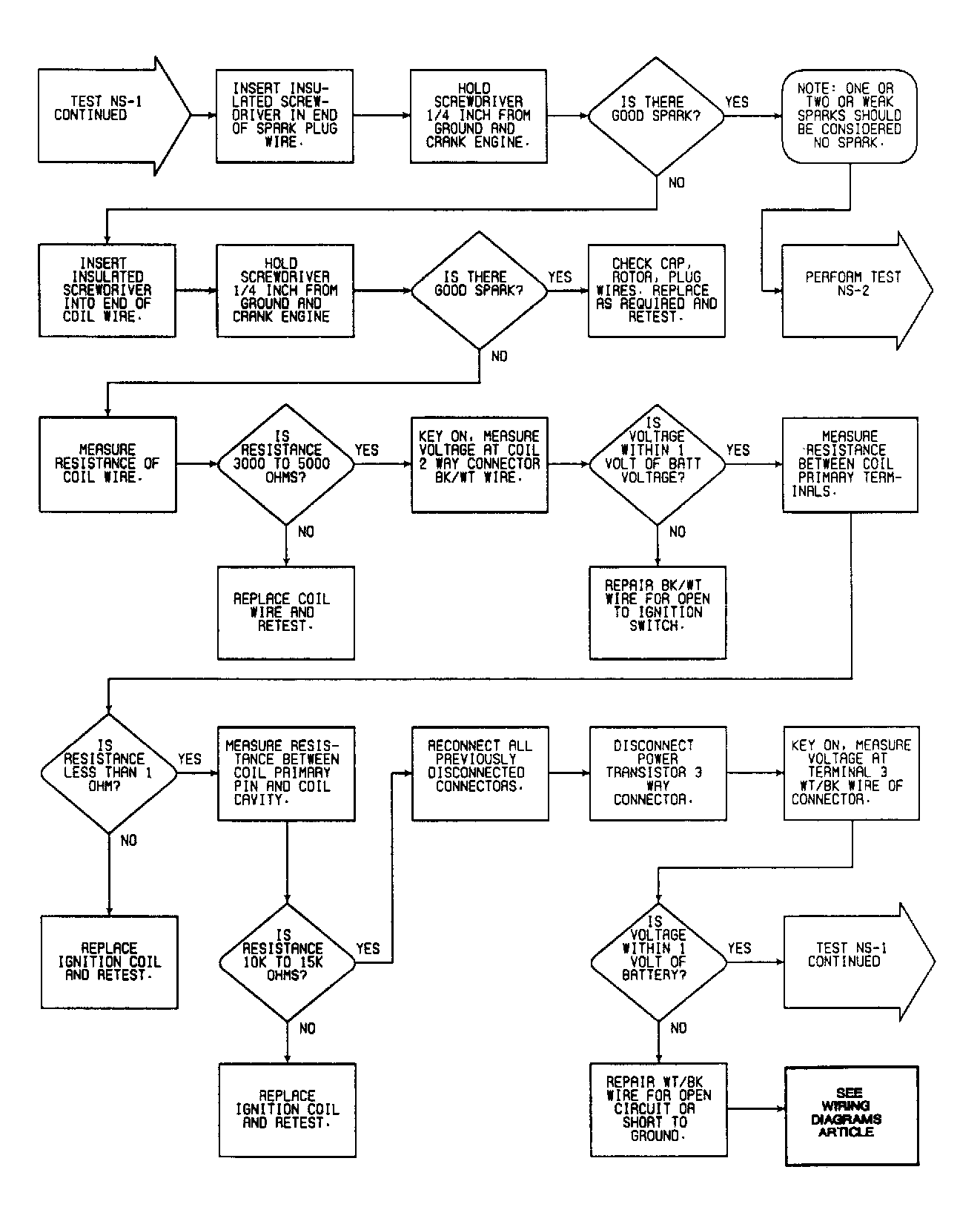

Fig 4: Flow Chart NS-1 (3.0L) (2 of 3)

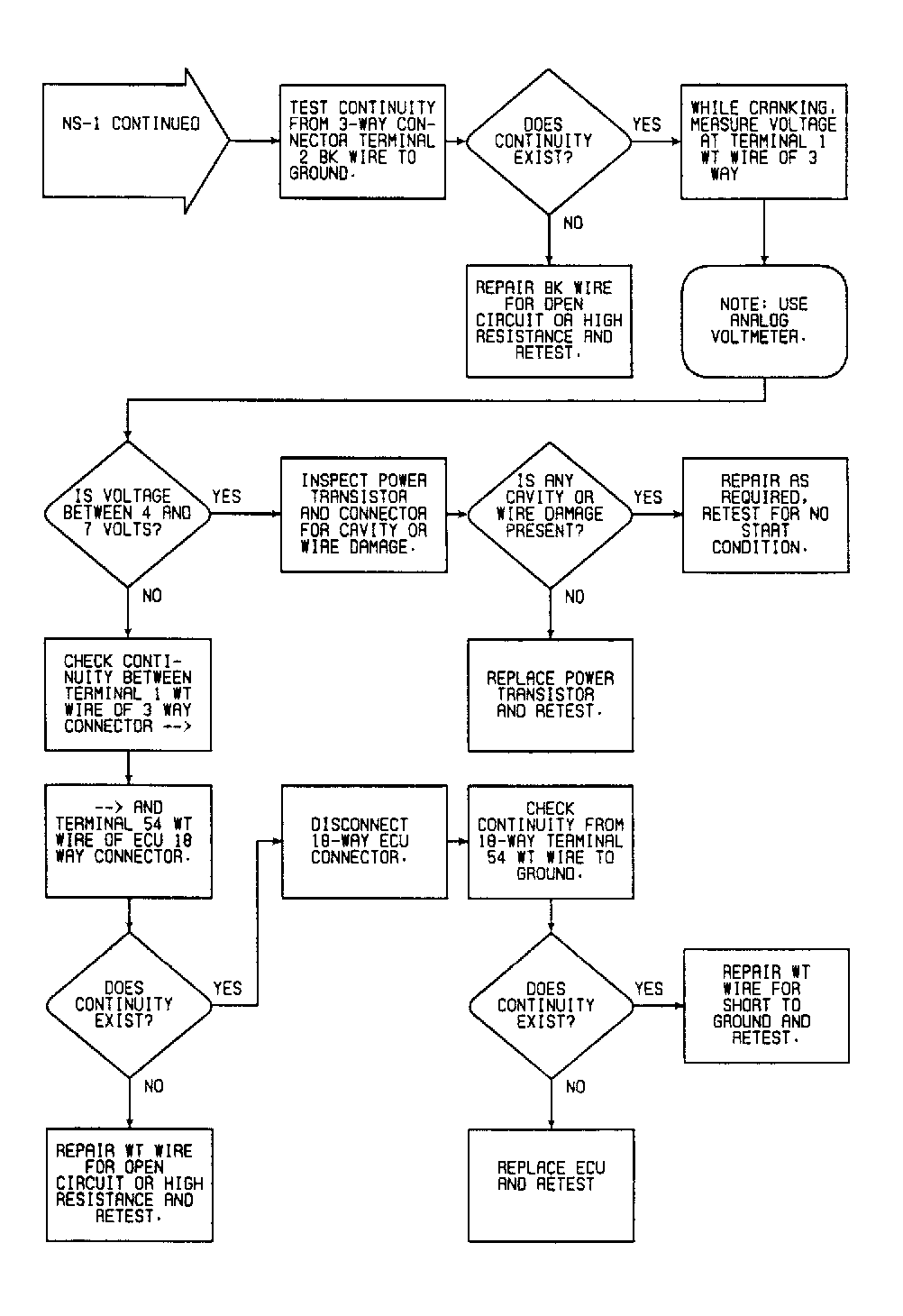

Fig 5: Flow Chart NS-1 (3.0L) (3 of 3)
