Electrical Load Switch

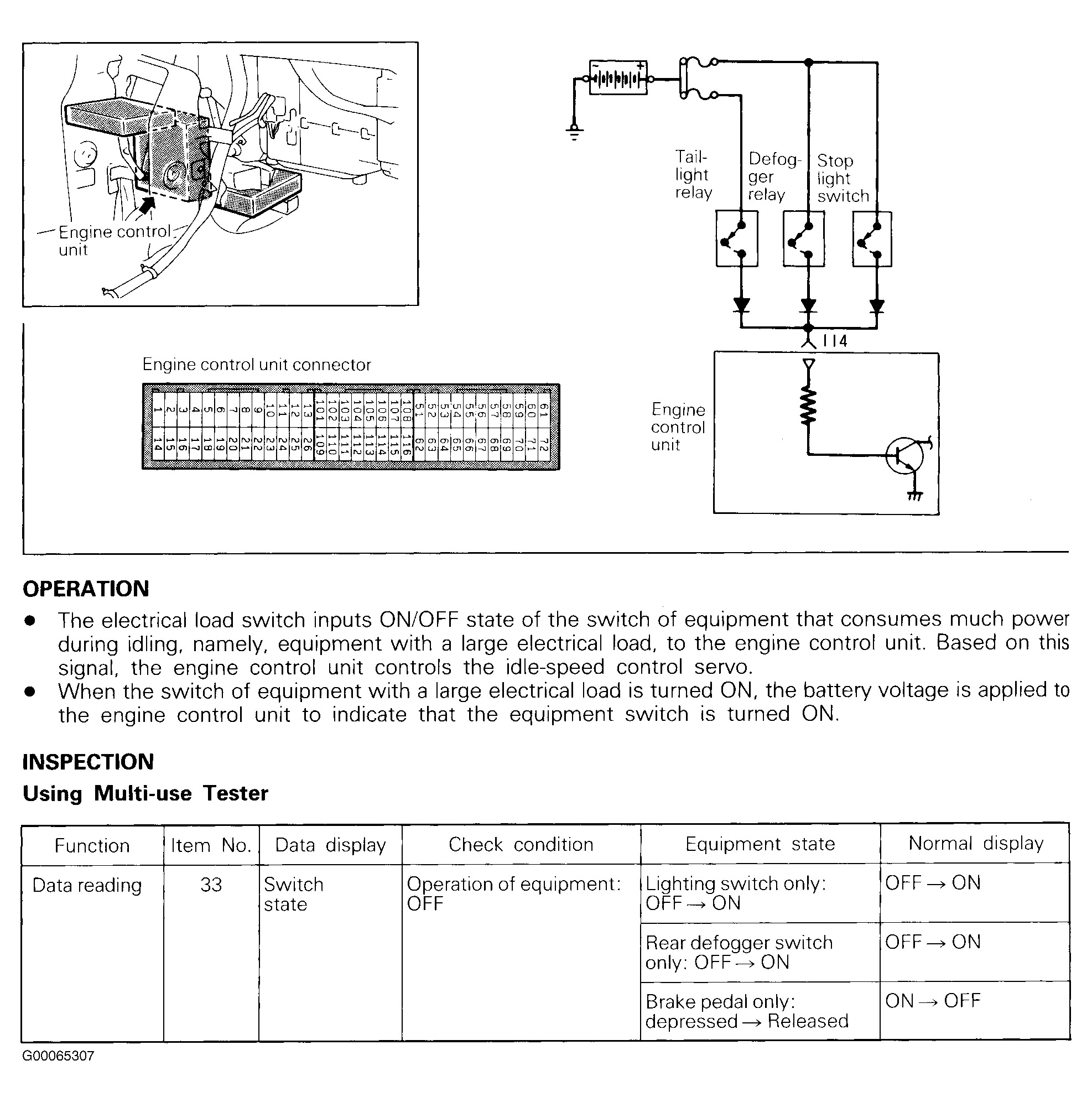

Fig 1: Electrical Load Switch (1 Of 2)
G00065307Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

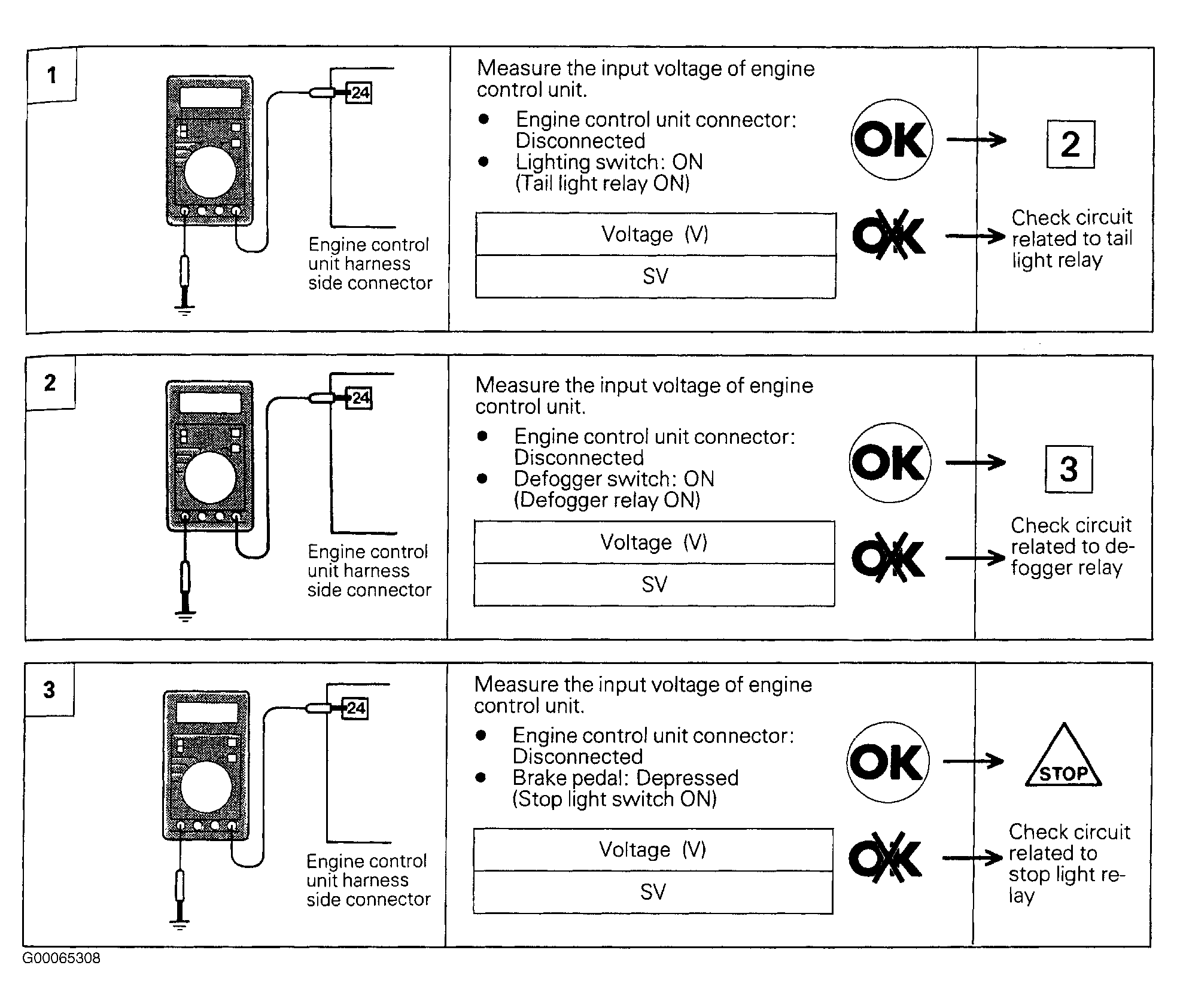

Fig 2: Electrical Load Switch - Steps 1-3 (2 Of 2)
G00065308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
