DTC 13: Intake Air Temperature Sensor

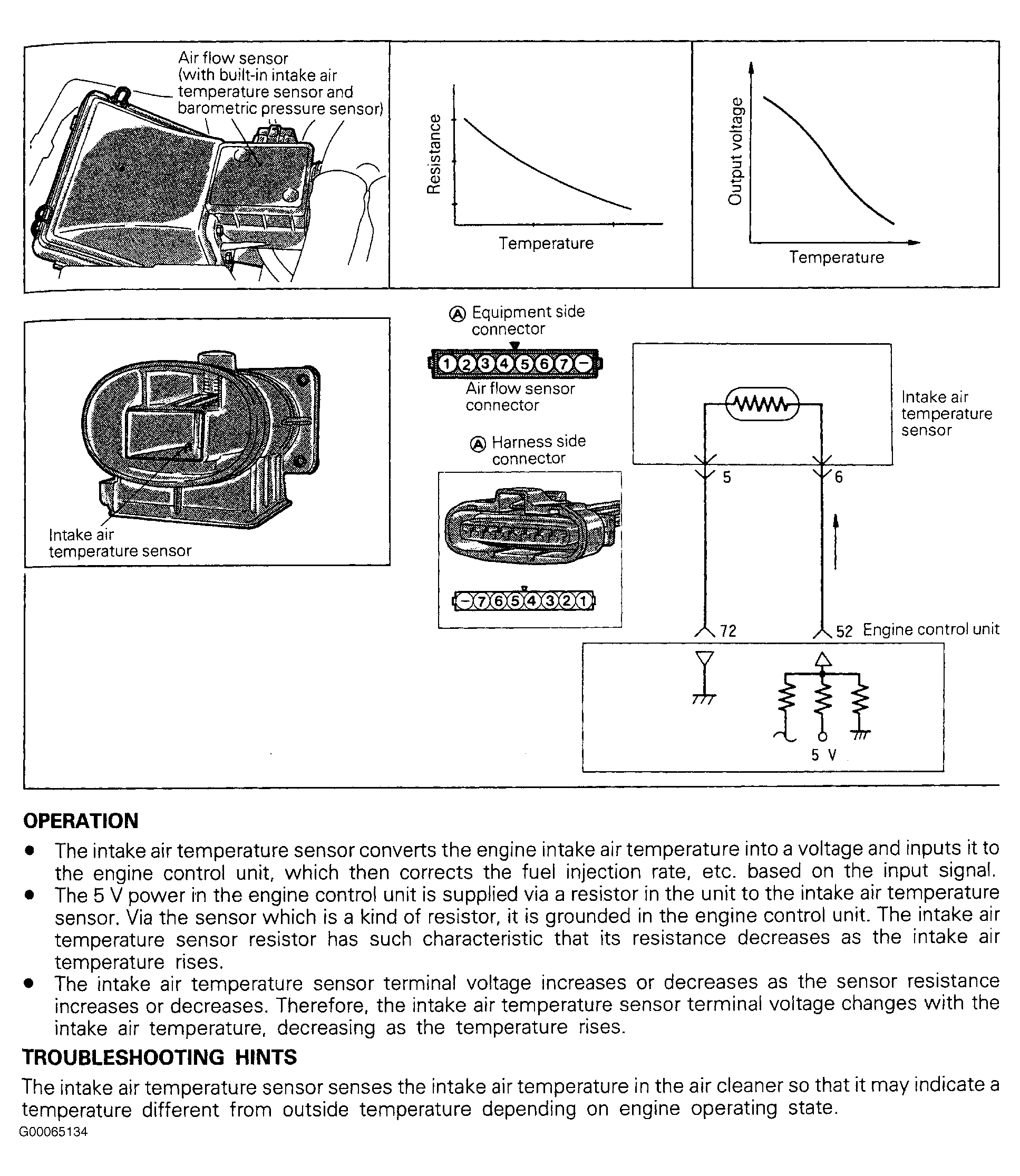

Fig 1: DTC 13: Intake Air Temperature Sensor (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

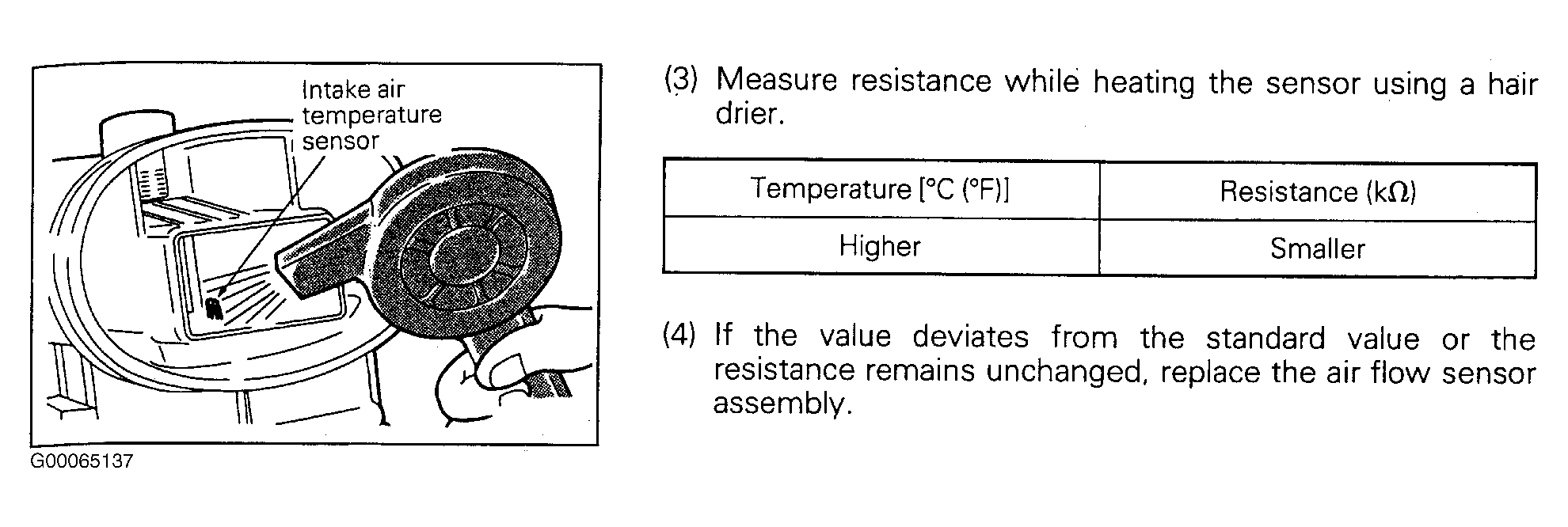

Fig 2: DTC 13: Intake Air Temperature Sensor - Steps 1 & 2 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

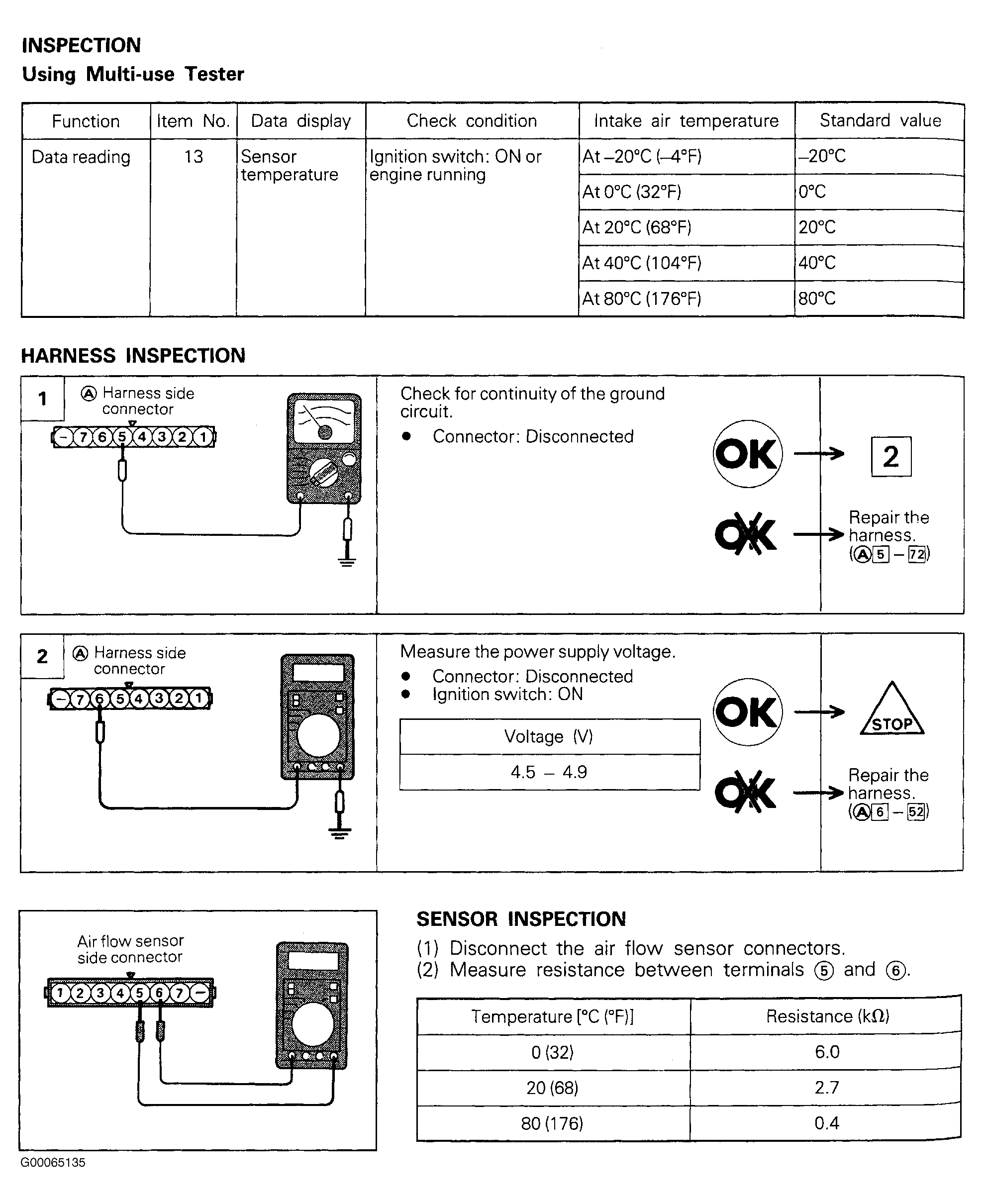

Fig 3: DTC: 13 Intake Air Temperature Sensor - Steps 3 & 4 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
