DTC 24: Vehicle Speed Sensor

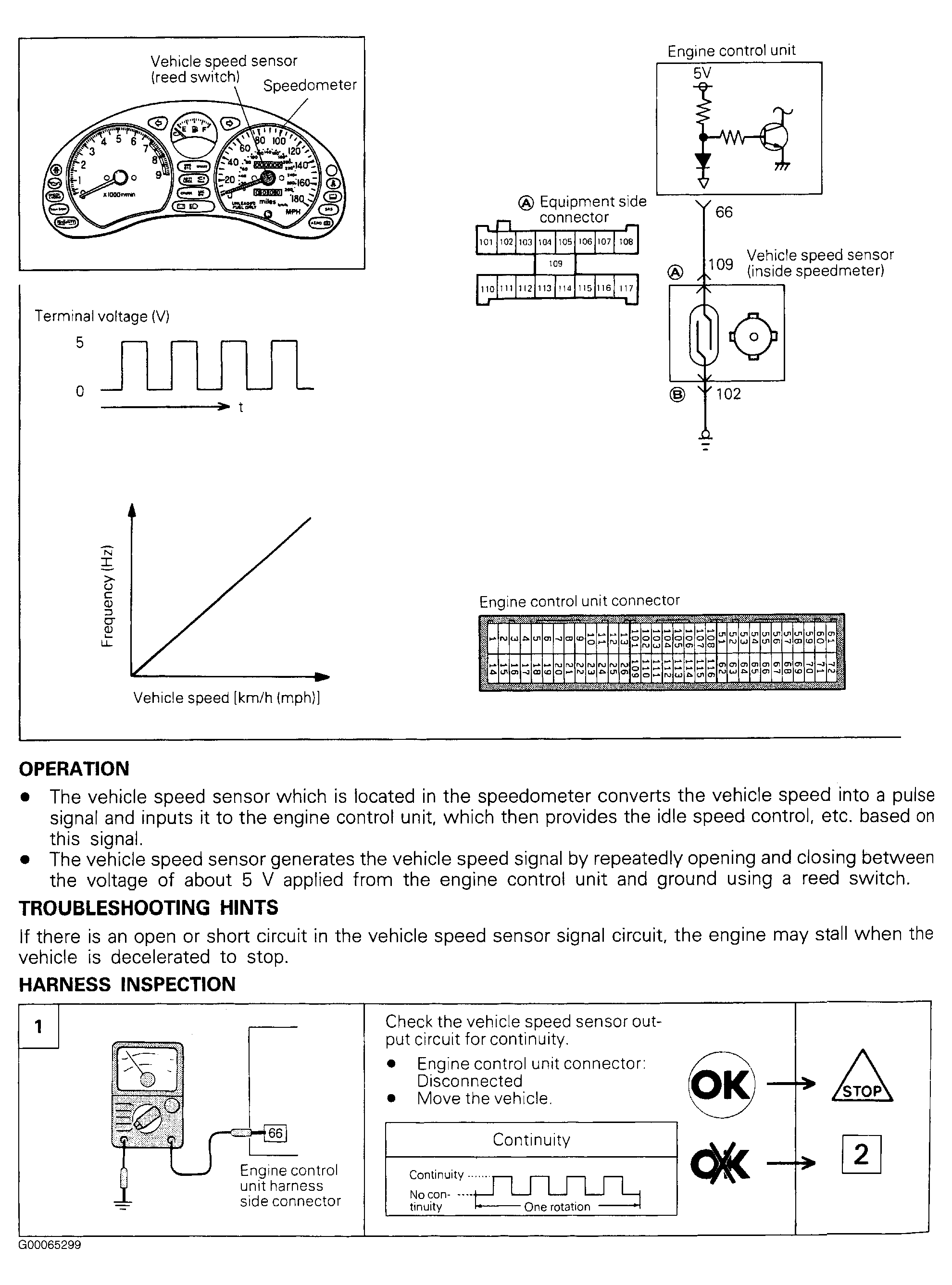

Fig 1: DTC 24: Vehicle Speed Sensor - Step 1 (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

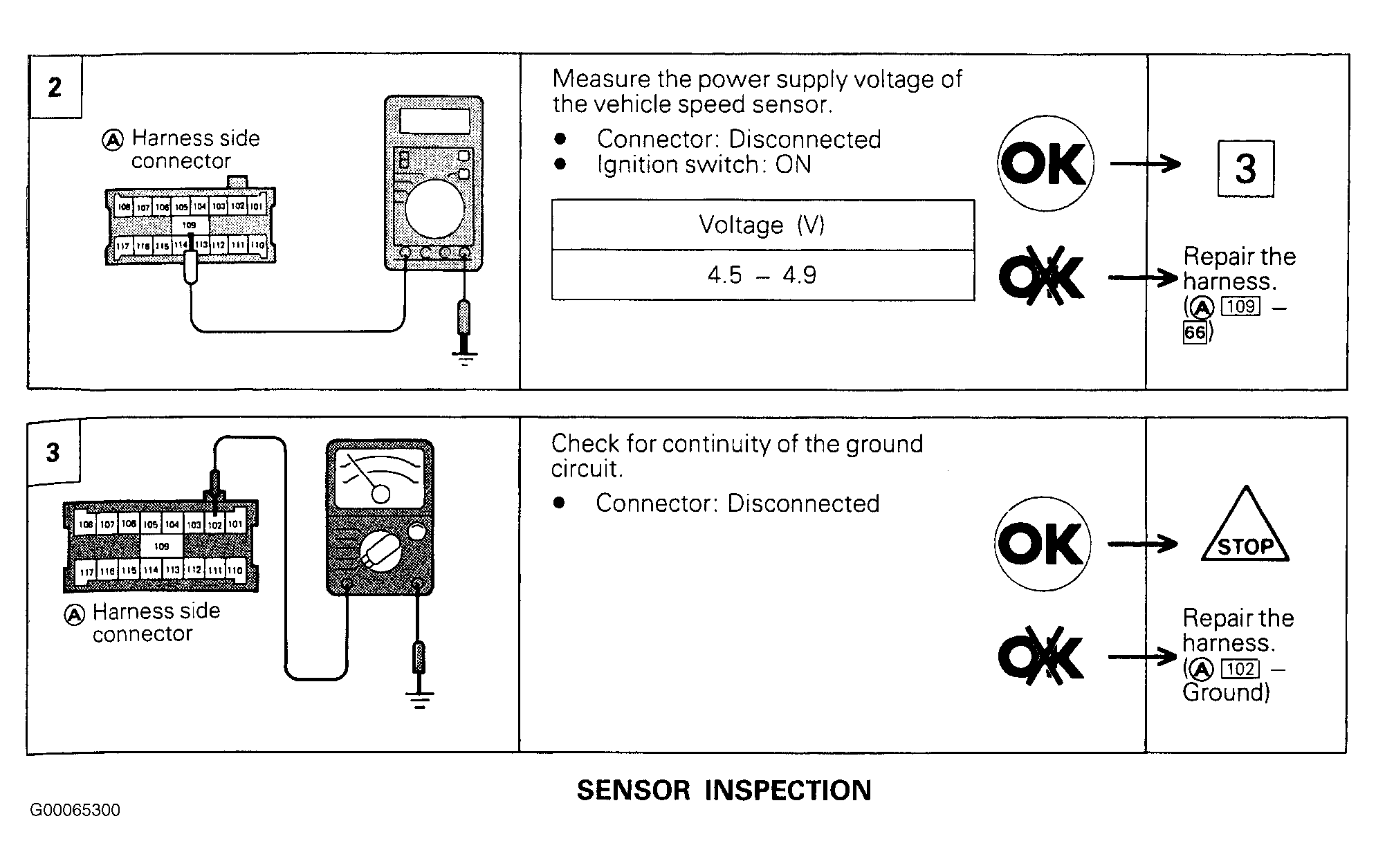

Fig 2: DTC 24: Vehicle Speed Sensor - Steps 2 & 3 (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
