Engine Controls - Tests W/Codes
›
Service Adjustment Procedures
›
Speed Adjustment Screw (SAS) Fixed Position
Speed Adjustment Screw (SAS) Fixed Position

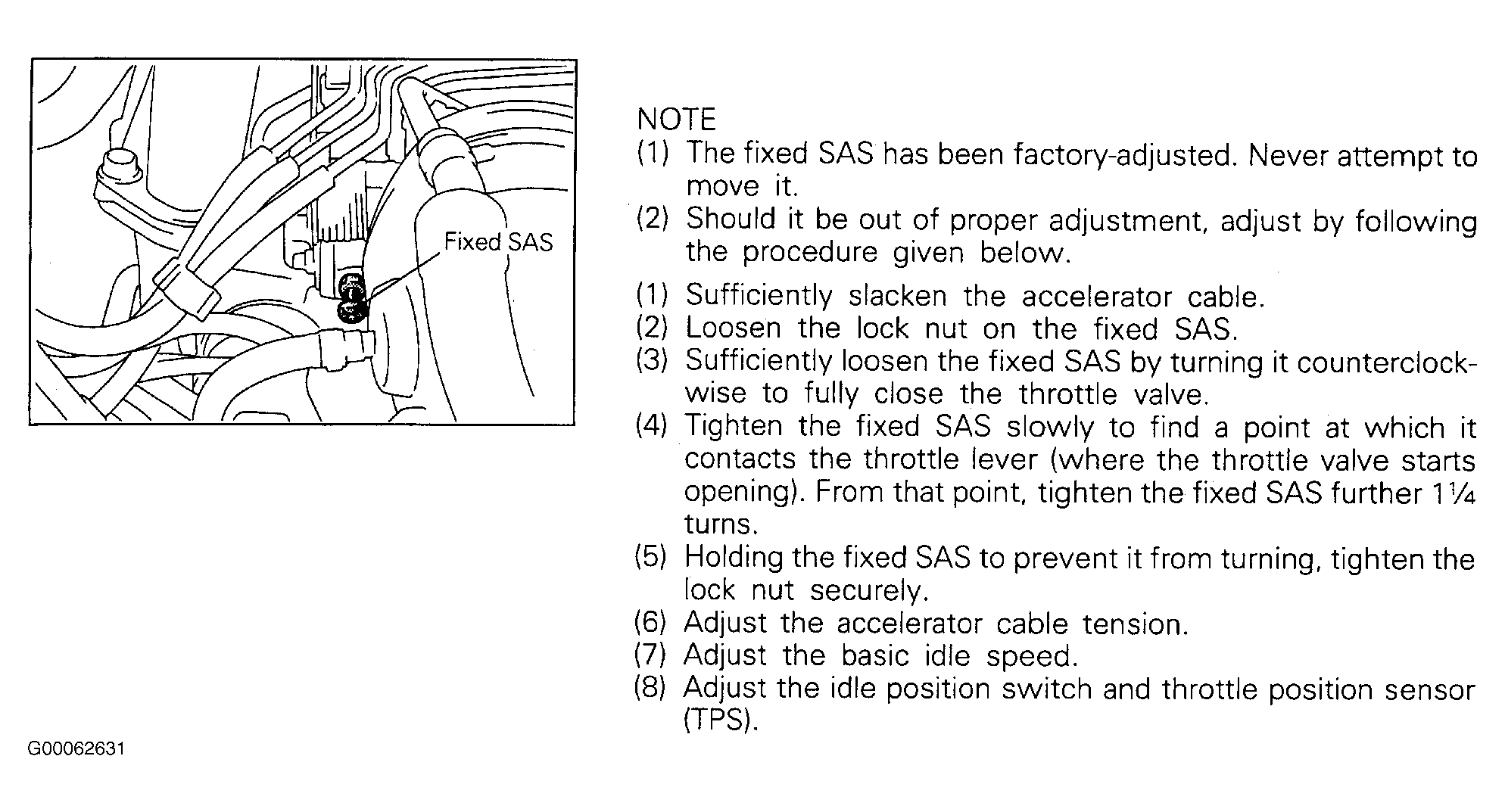

Fig 1: Speed Adjustment Screw (SAS) Fixed Position - Steps 1-8
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
