Engine Controls - Tests W/Codes
›
Service Adjustment Procedures
›
Throttle Body Cleaning Procedure
Throttle Body Cleaning Procedure

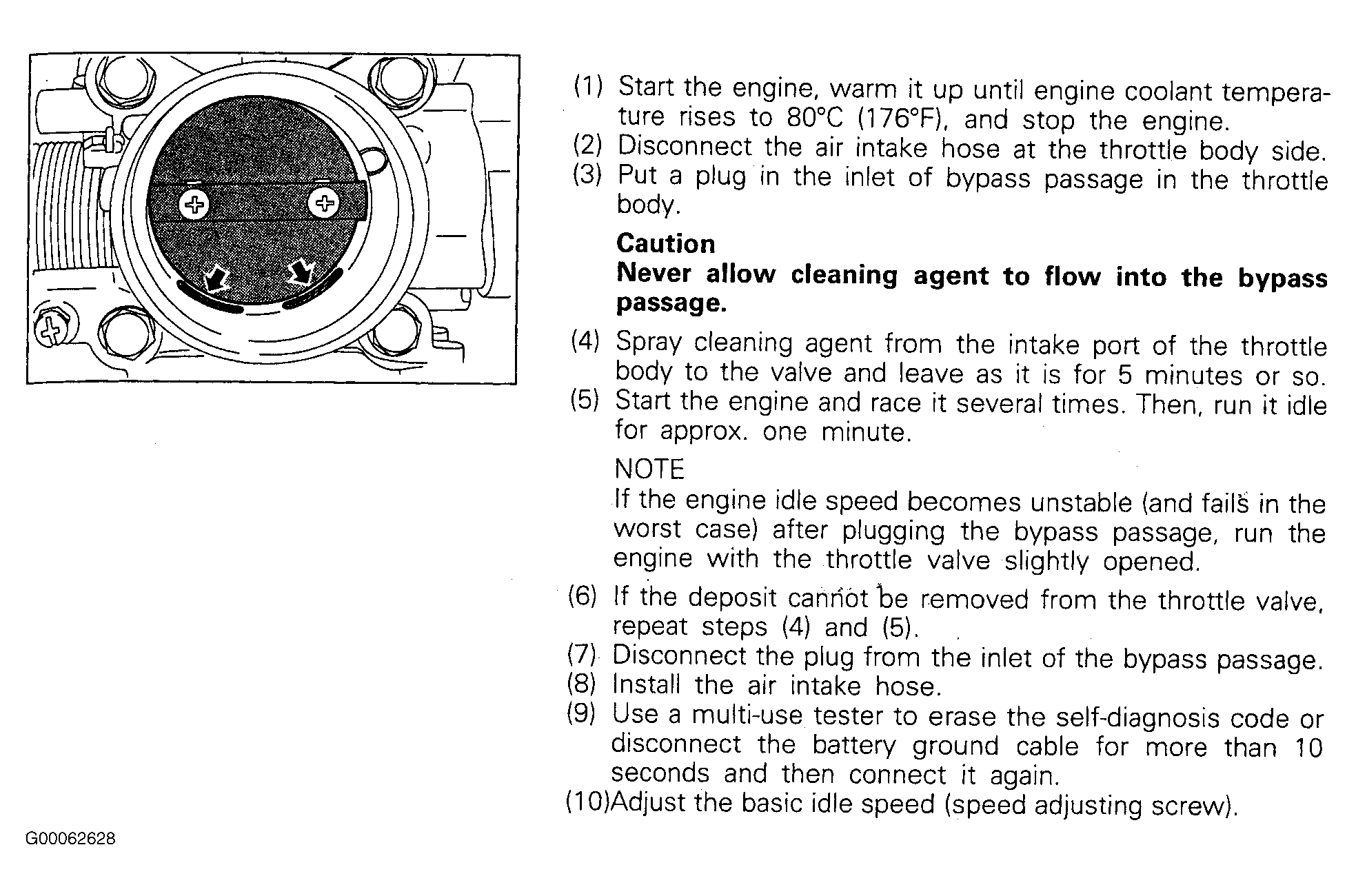

Fig 1: Throttle Body Cleaning Procedure - Steps 1-10
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
