Mitsubishi
›
1991
›
3000GT Base, Standard
›
Repair and Diagnosis (Single Page)
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Actuator, System & Component Tests
›
Control Relay
Control Relay

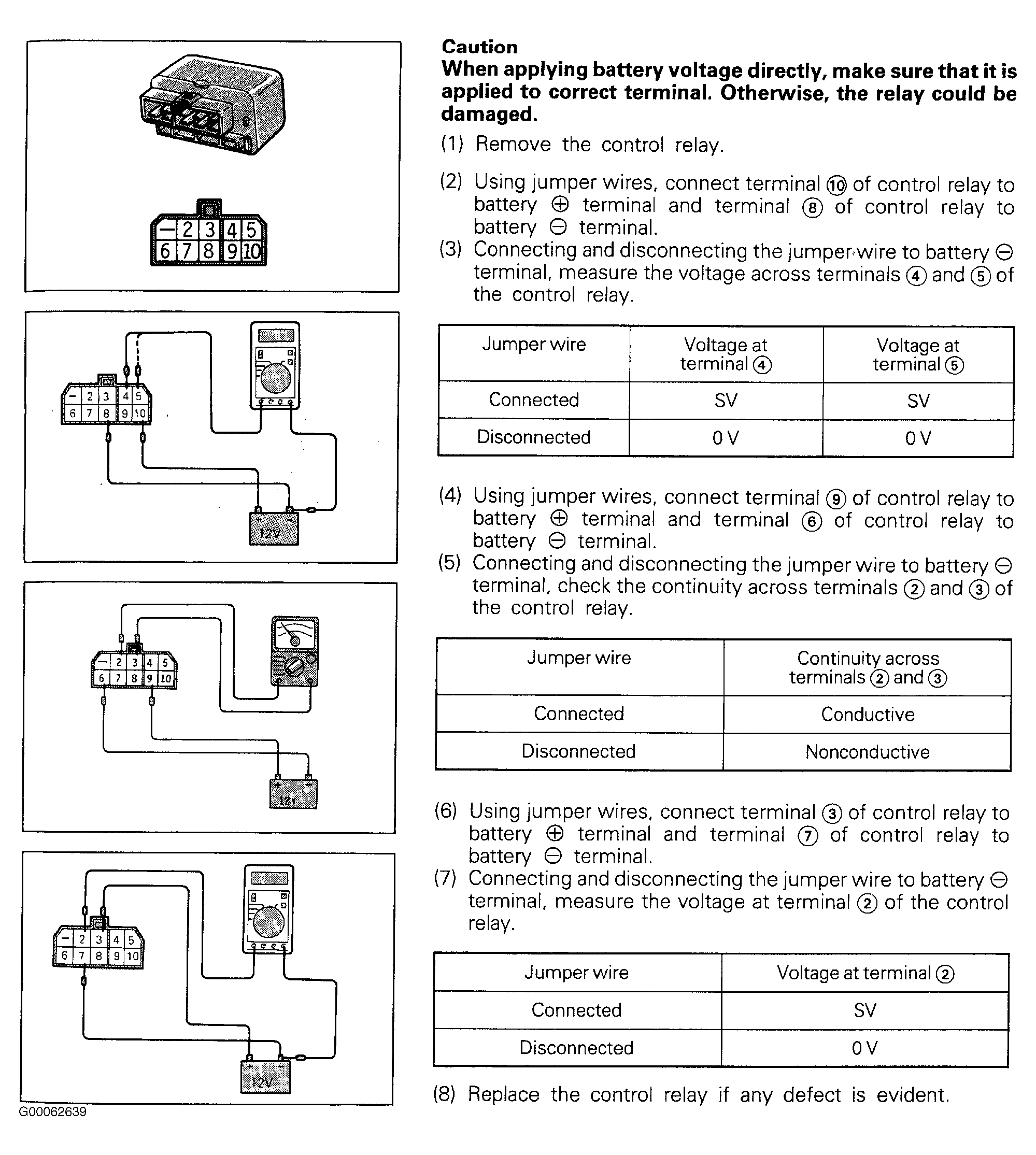

Fig 1: Control Relay - Steps 1-8
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
