Basic Idle Speed Adjustment
Basic Idle Speed Adjustment

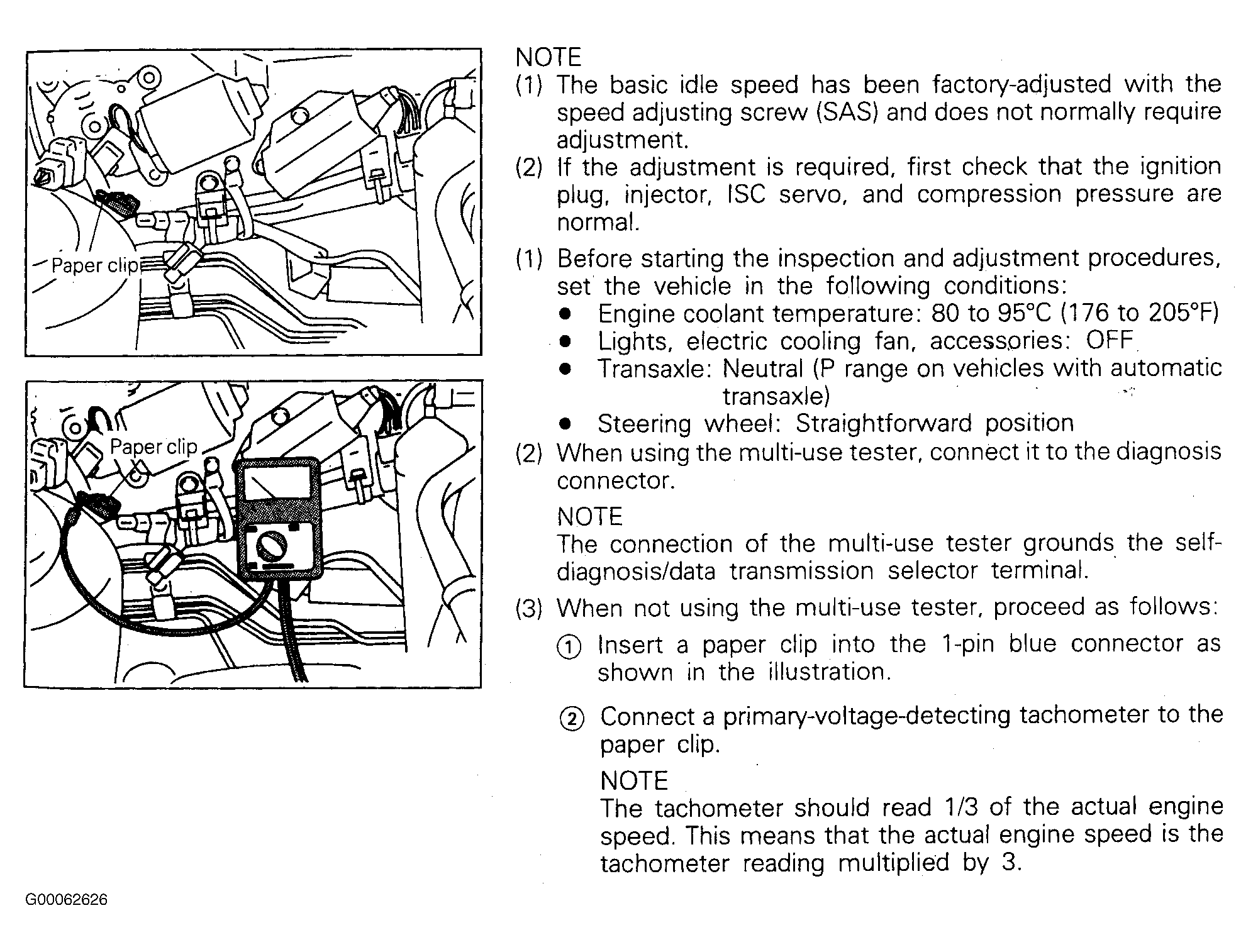

Fig 1: Basic Idle Speed Adjustment - Steps 1-3 (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

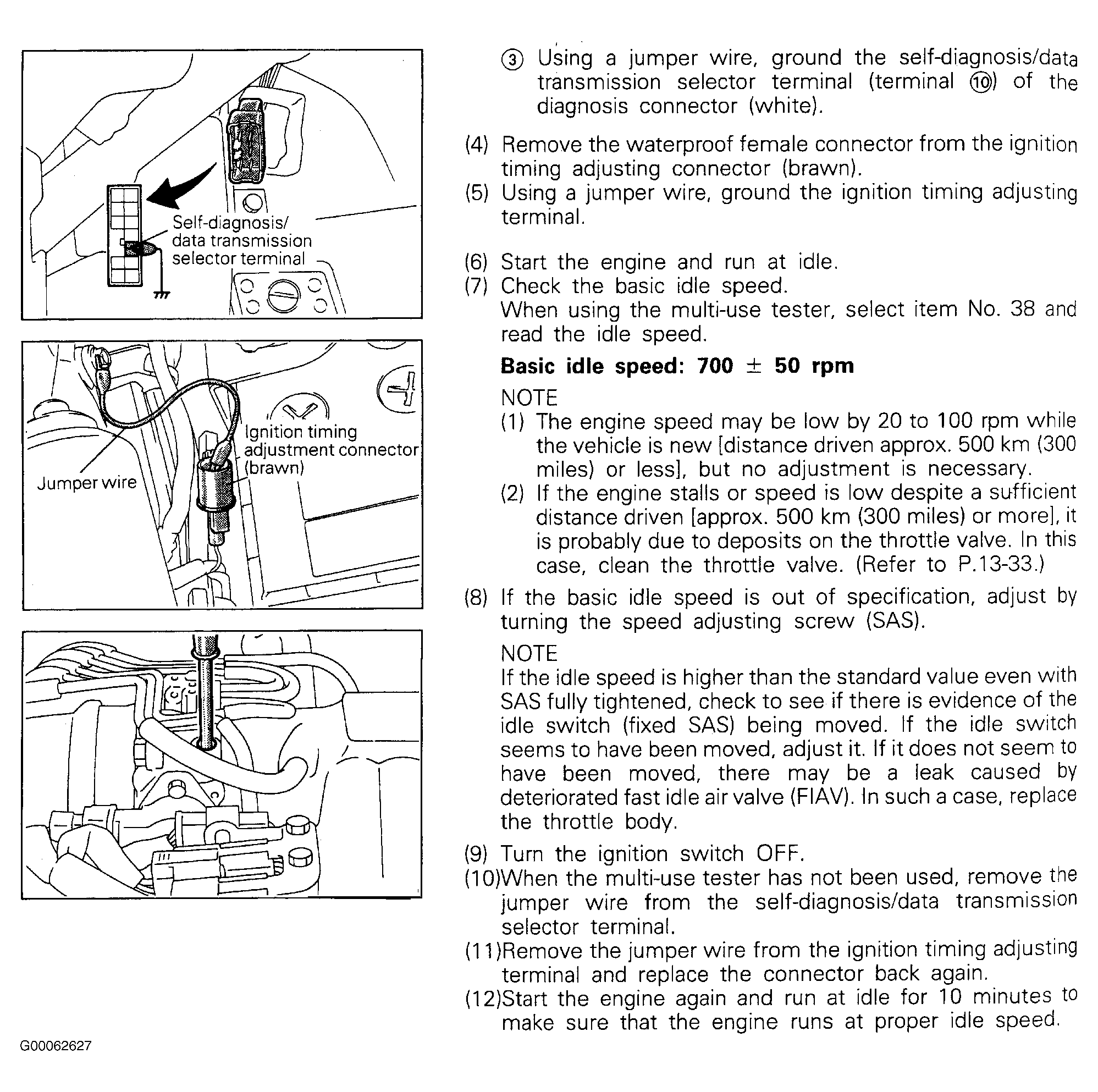

Fig 2: Basic Idle Speed Adjustment - Steps 4-12 (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
