Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Service Adjustment Procedures
›
Fuel Pump Operation Check
Fuel Pump Operation Check

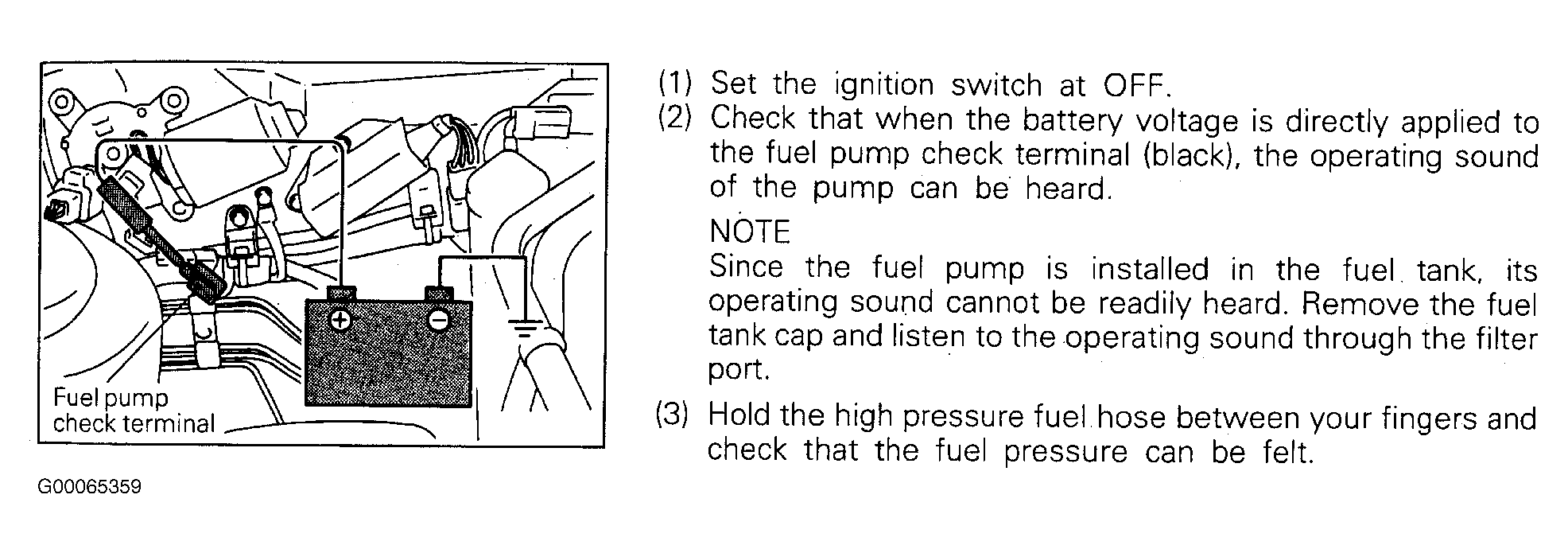

Fig 1: Fuel Pump Operation Check - Steps 1-3
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
