DTC 22: Crank Angle Sensor

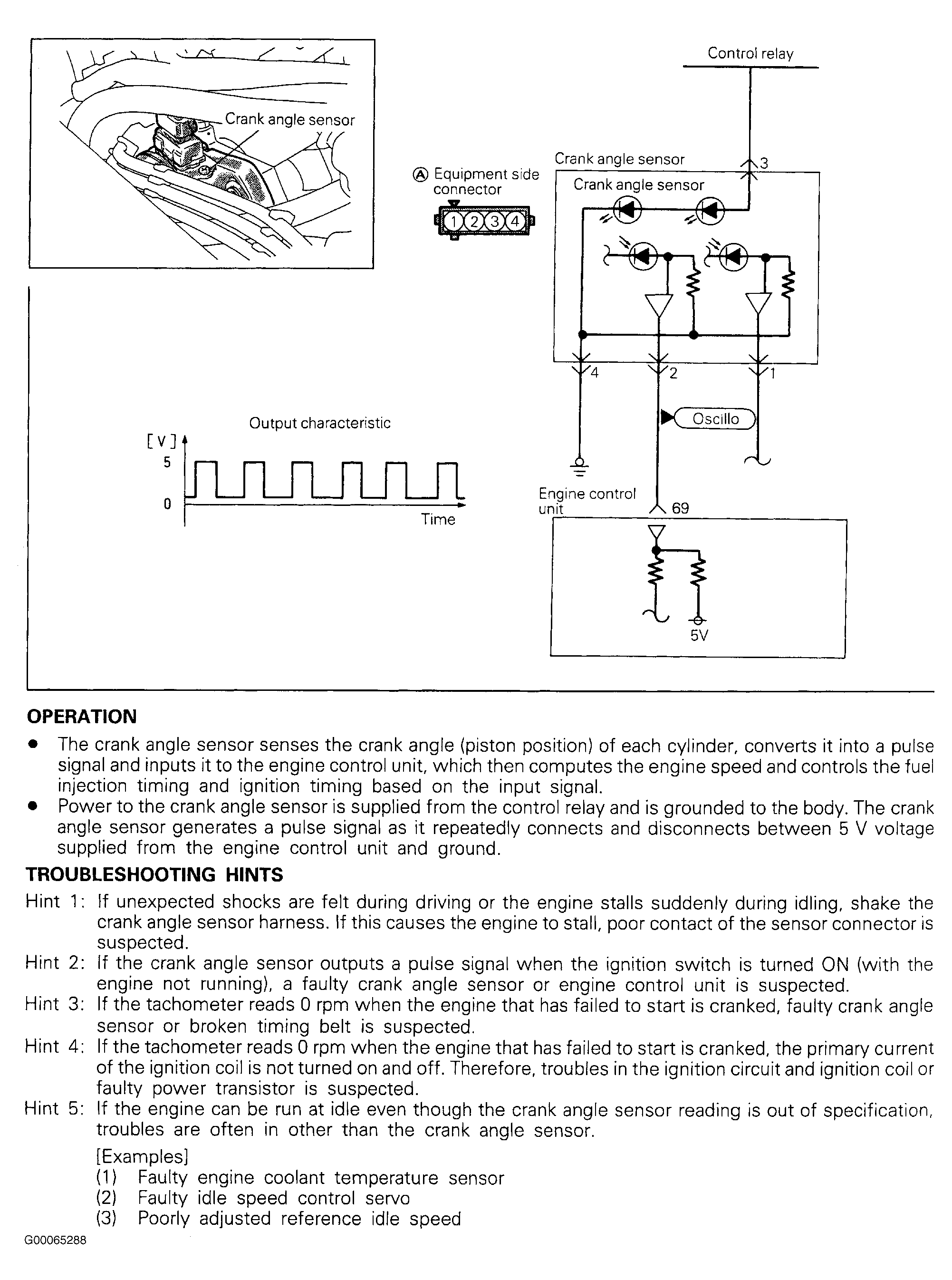

Fig 1: DTC 22: Crank Angle Sensor (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

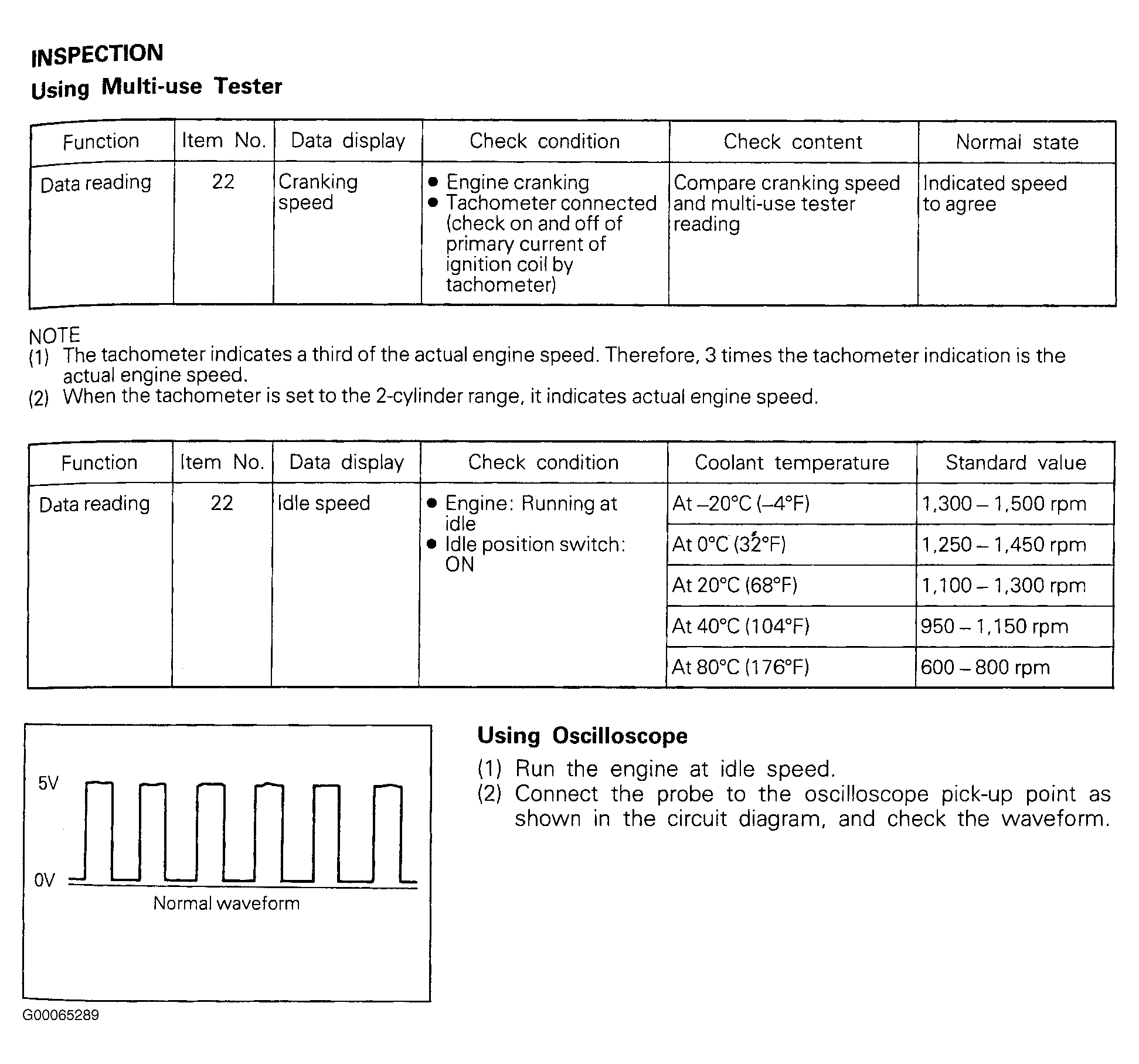

Fig 2: DTC 22: Crank Angle Sensor (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

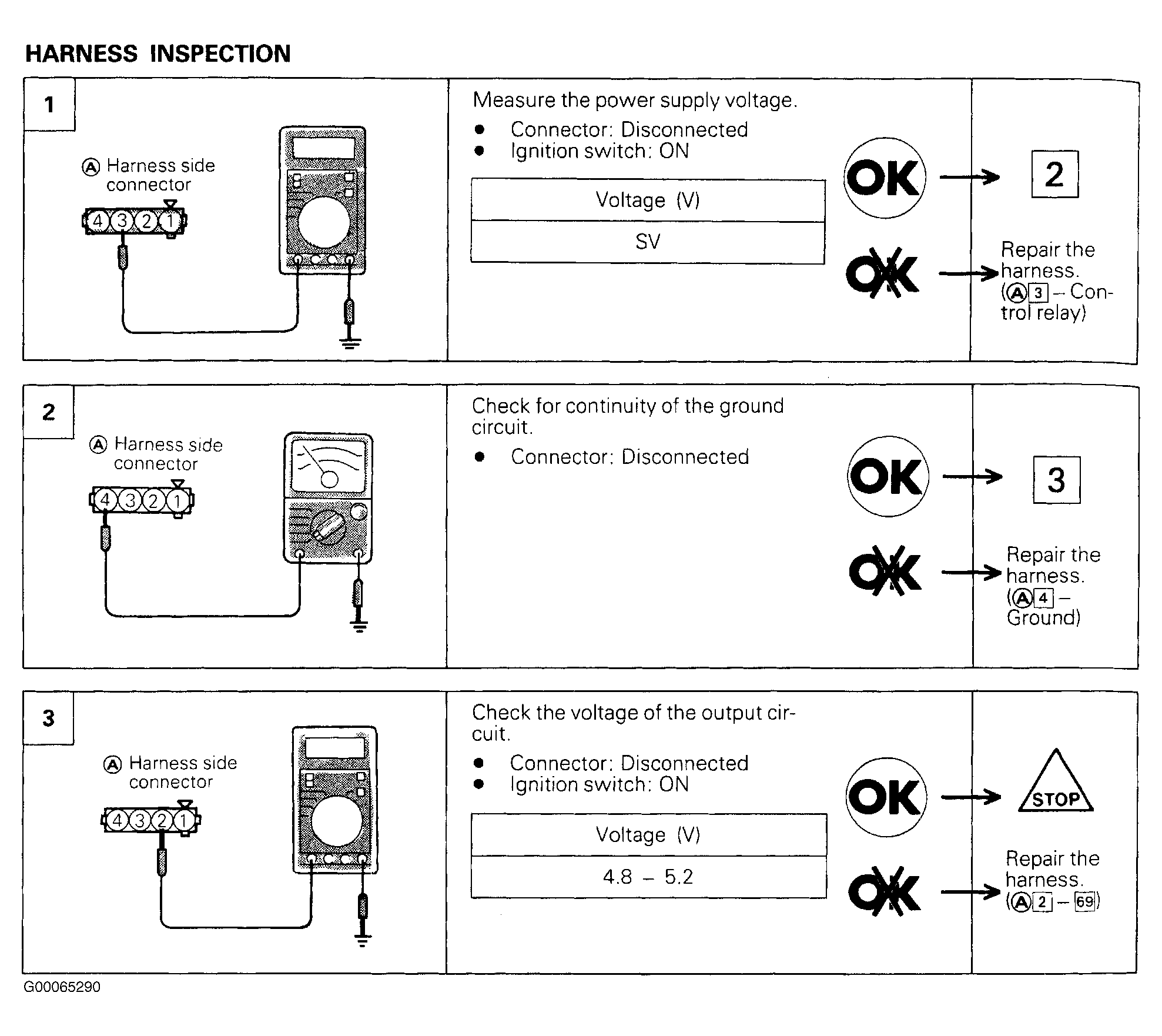

Fig 3: DTC 22: Crank Angle Sensor - Steps 1-3 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
