Home › Mitsubishi › 1991 › 3000GT Base, Standard › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Self-Diagnostic System › Diagnostic Fault Charts › Notes

Diagnostic Fault Charts: Notes

NOTE: Replace ECU if a malfunction code exists and inspection reveals no problem with check items.

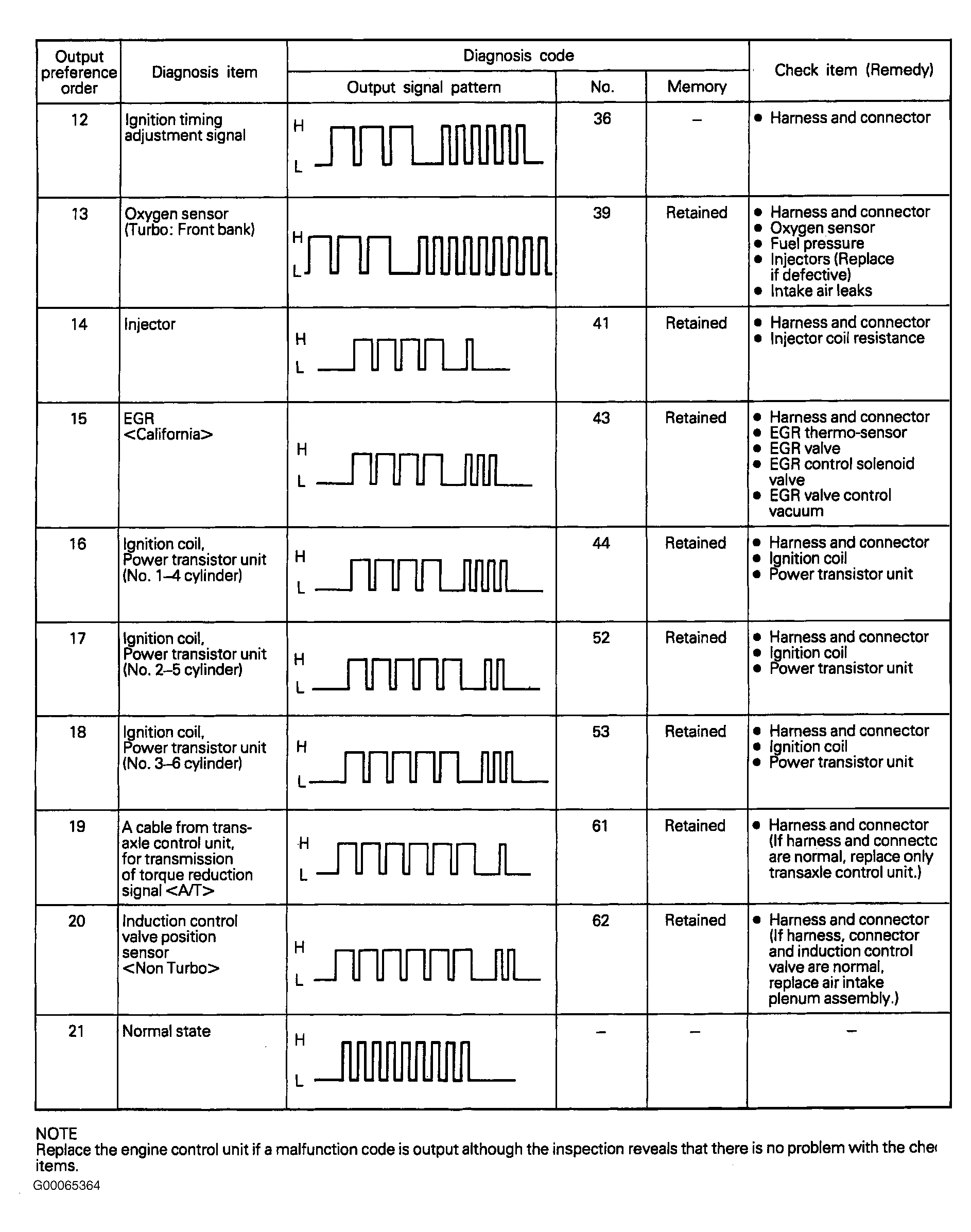

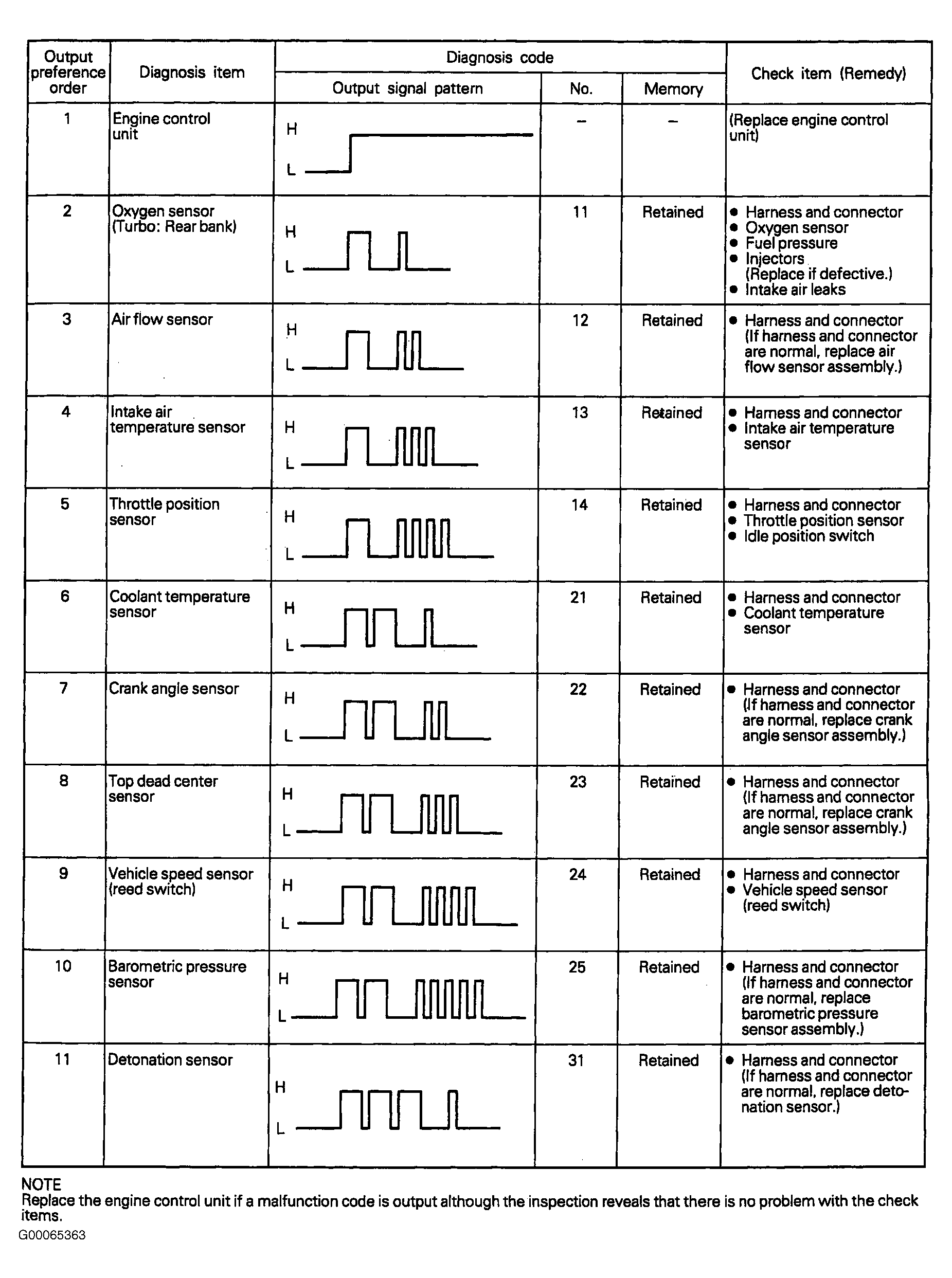

See Figure and Figure . for Diagnostic Fault Charts.
