FixVault
Home
›
Mitsubishi
›
1991
›
3000GT Base, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Service Adjustment Procedures
›
Fuel Pressure Release
Fuel Pressure Release

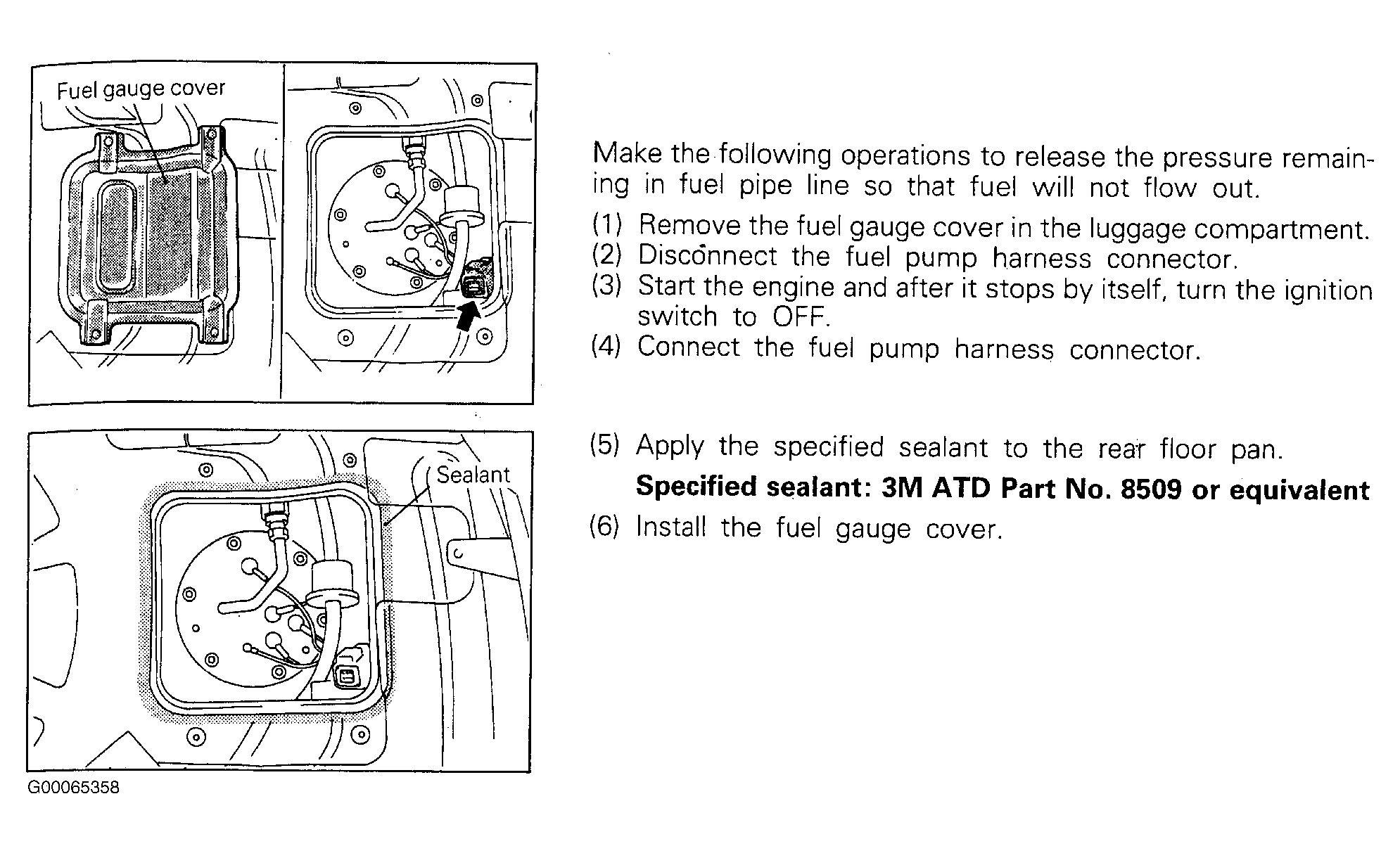

Fig 1: Fuel Pressure Release - Steps 1-6
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
