Dr-10A: Testing Barometric Pressure Sensor

Fig 1: Driveability Test DR-10A: Circuit Diagram

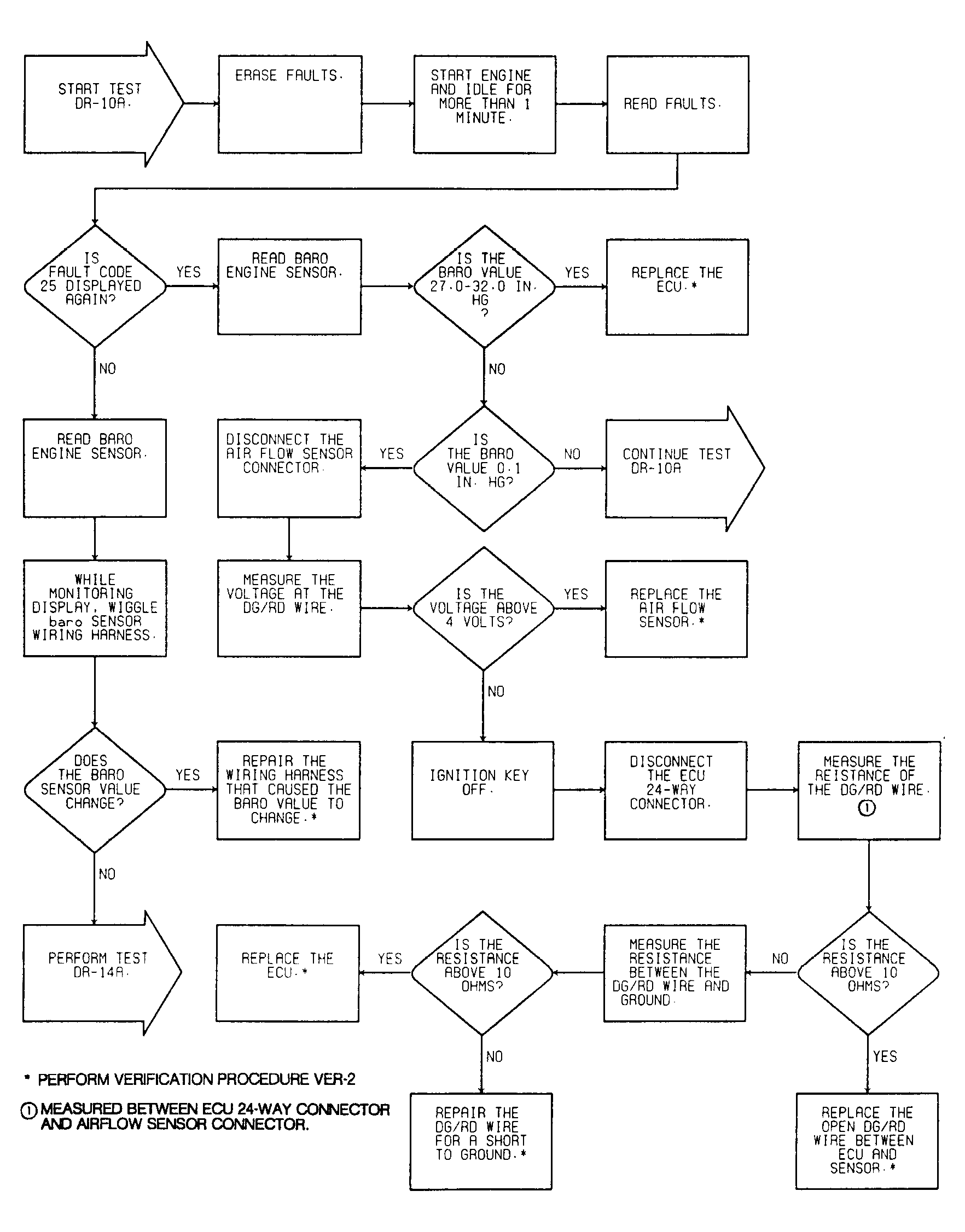

Fig 2: Driveability Test DR-10A: Diagnostic Flow Chart (1 of 2)

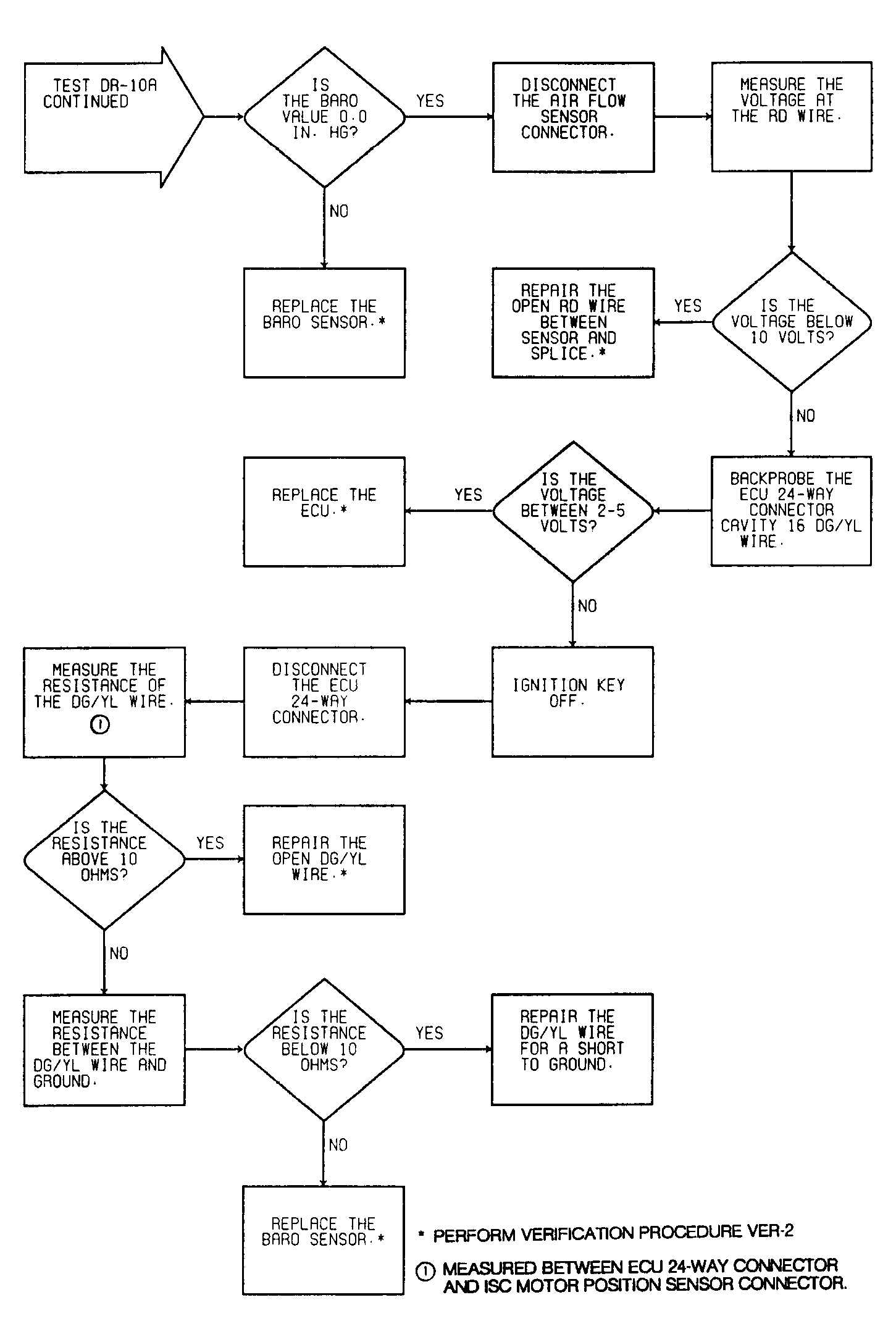

Fig 3: Driveability Test DR-10A: Diagnostic Flow Chart (2 of 2)
