Dr-12A: Testing Fuel Pump Sense
Dr-12A: Testing Fuel Pump Sense

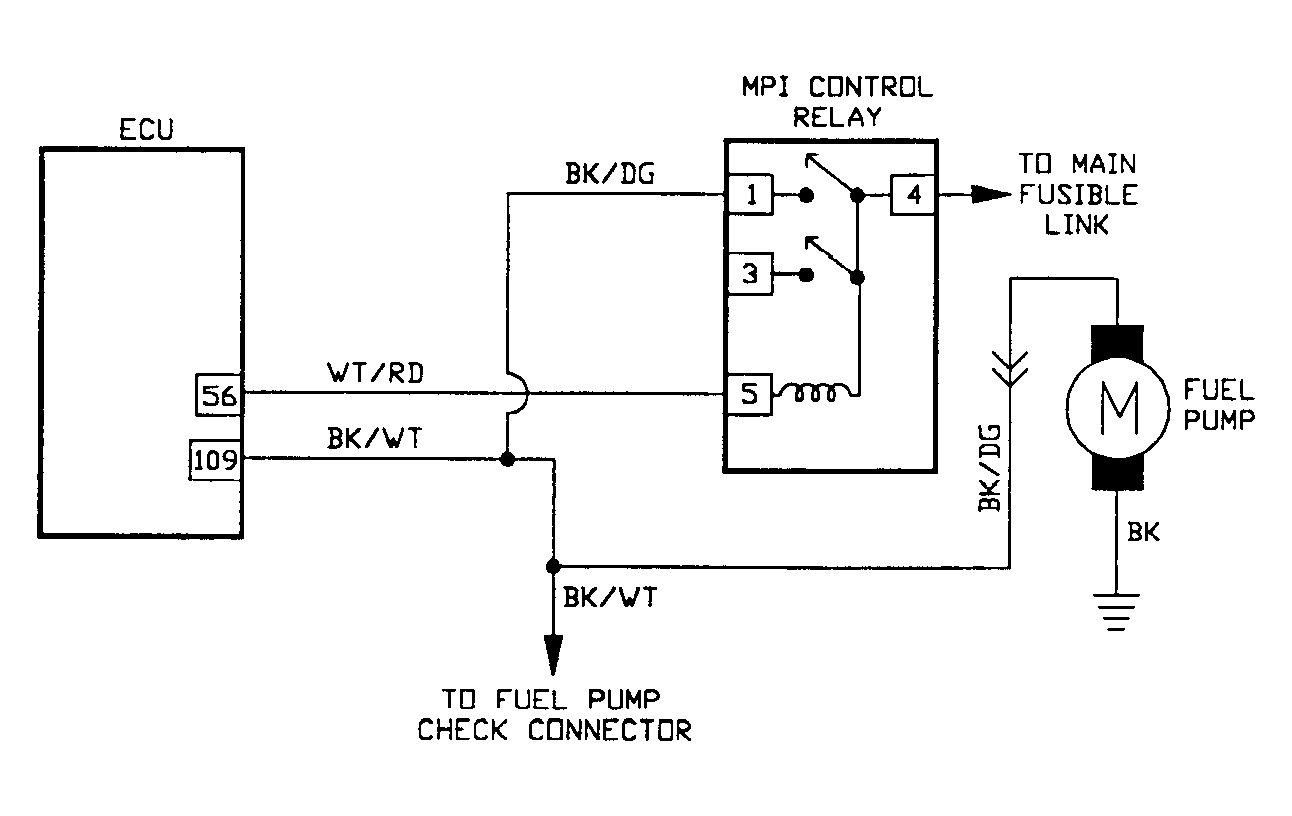

Fig 1: Driveability Test DR-12A: Circuit Diagram

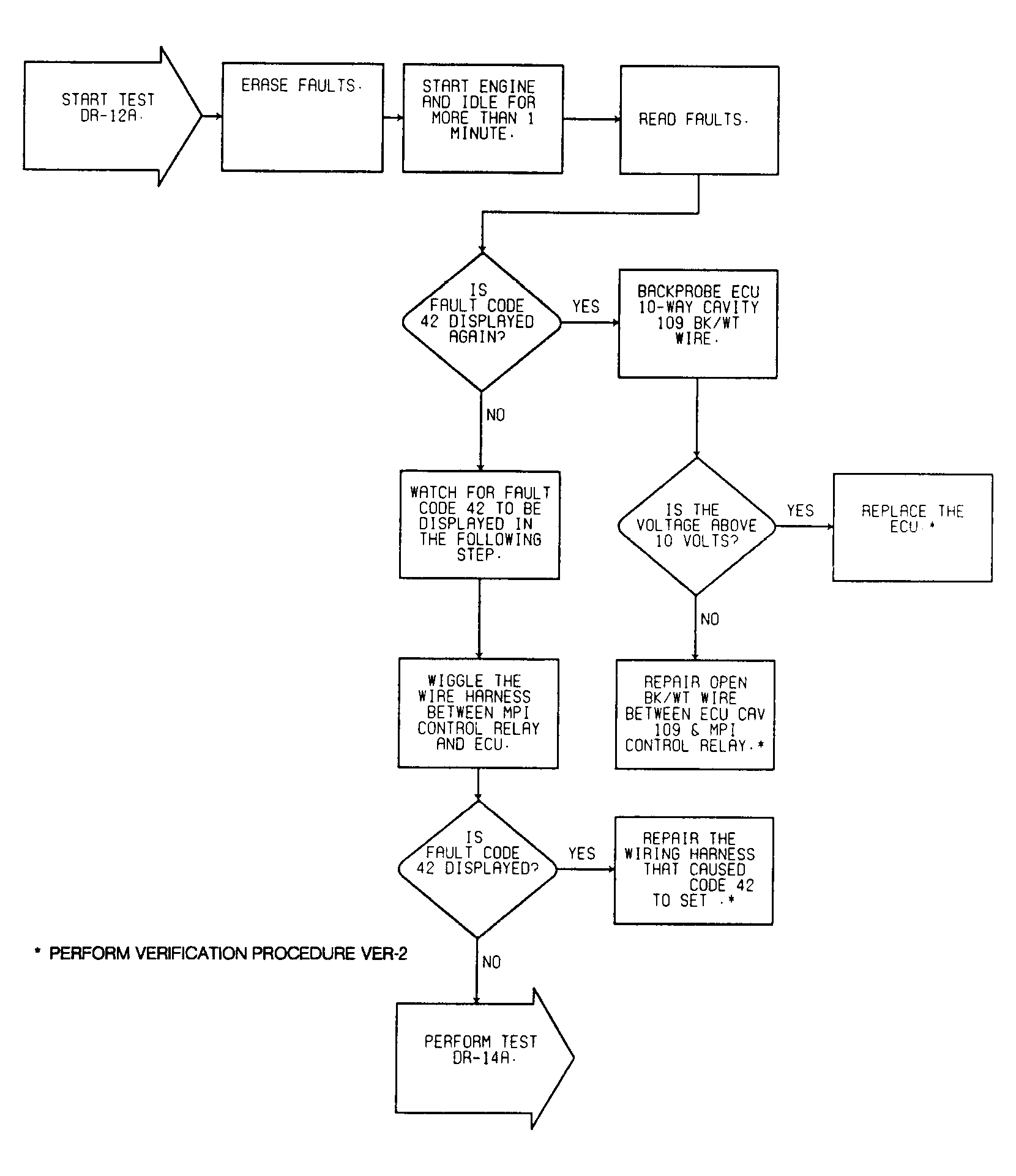

Fig 2: Driveability Test DR-12A: Diagnostic Flow Chart
