Dr-18A: Testing Purge System
Dr-18A: Testing Purge System
Fig 1: Driveability Test DR-18A: Circuit Diagram

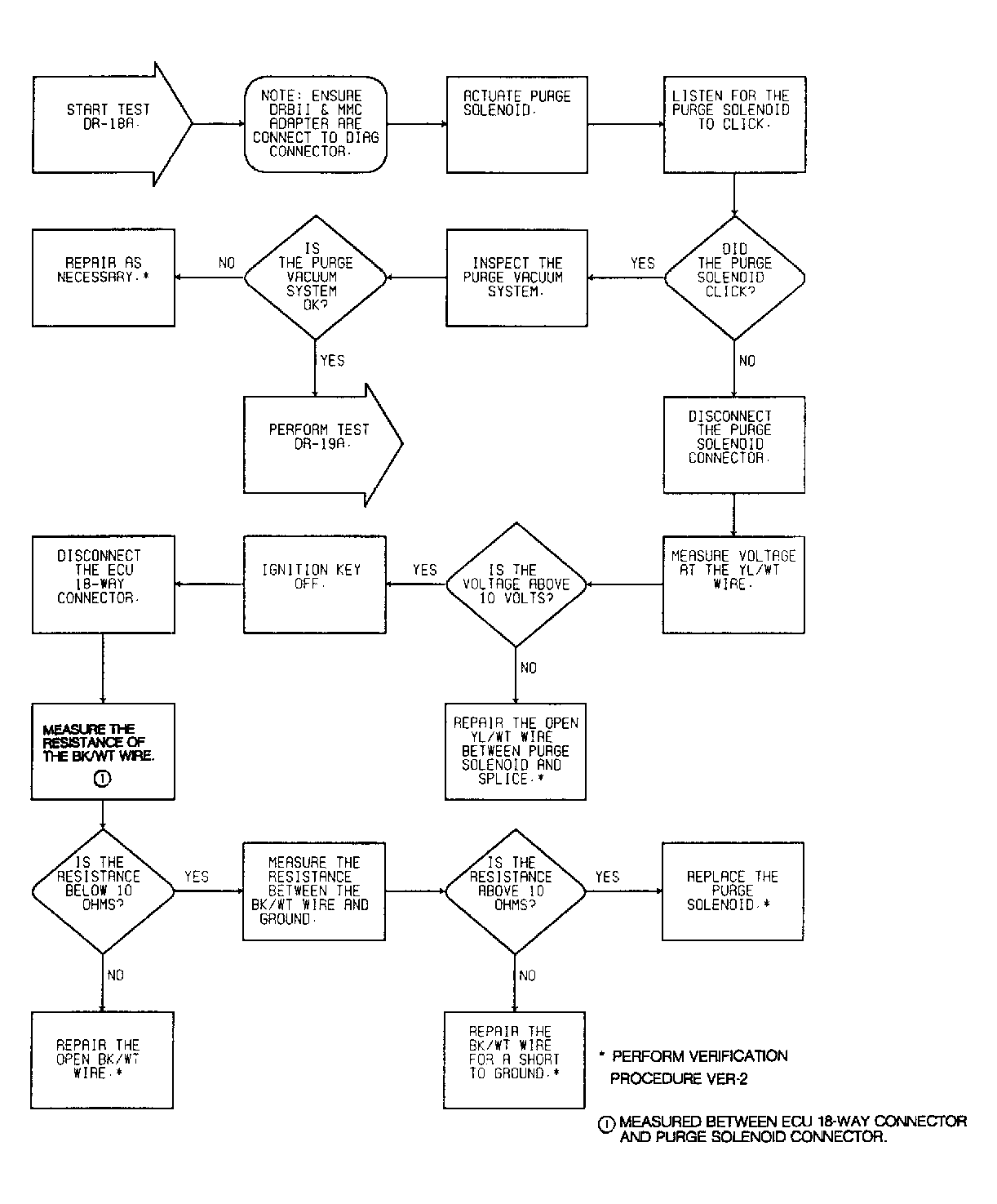

Fig 2: Driveability Test DR-18A: Diagnostic Flow Chart
