NS-6A: Checking DRB-II Communication

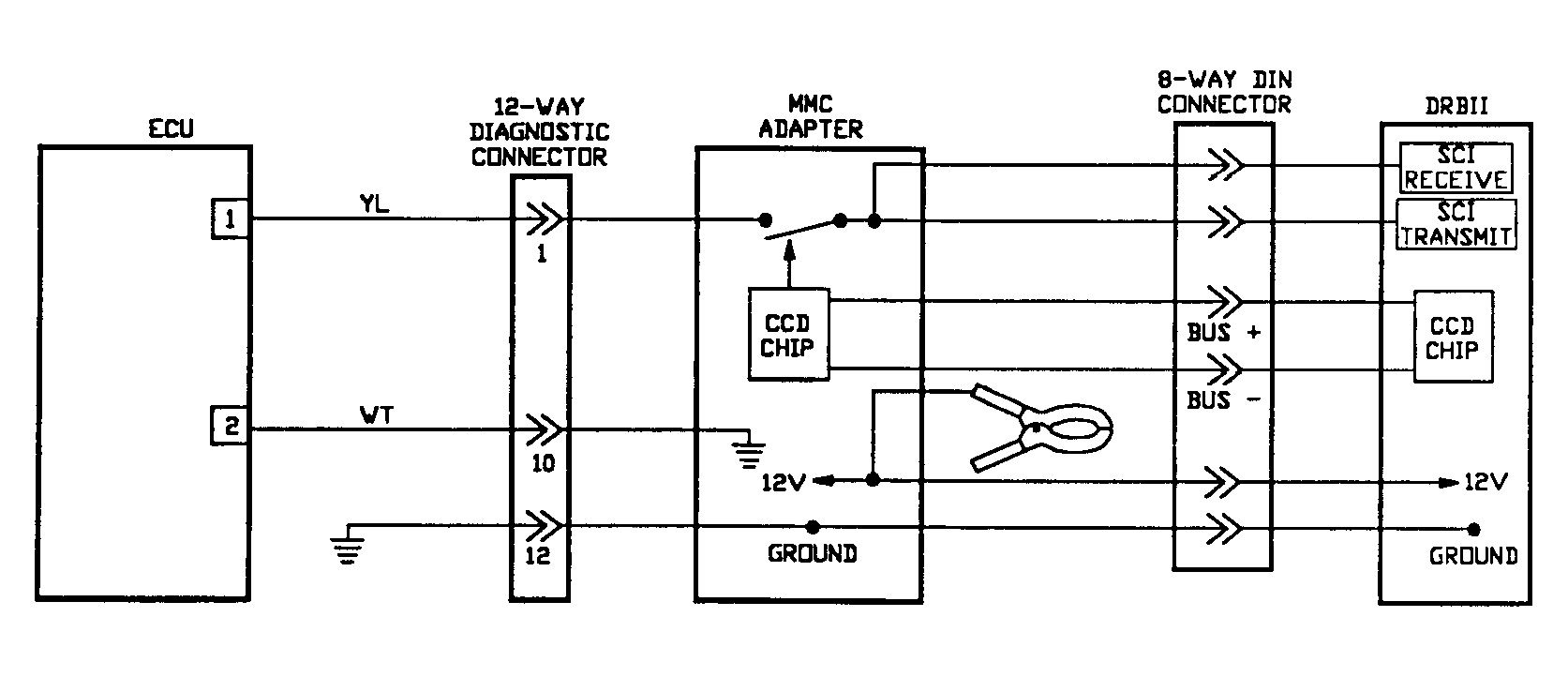

Fig 1: No Start Test NS-6A: Circuit Diagram

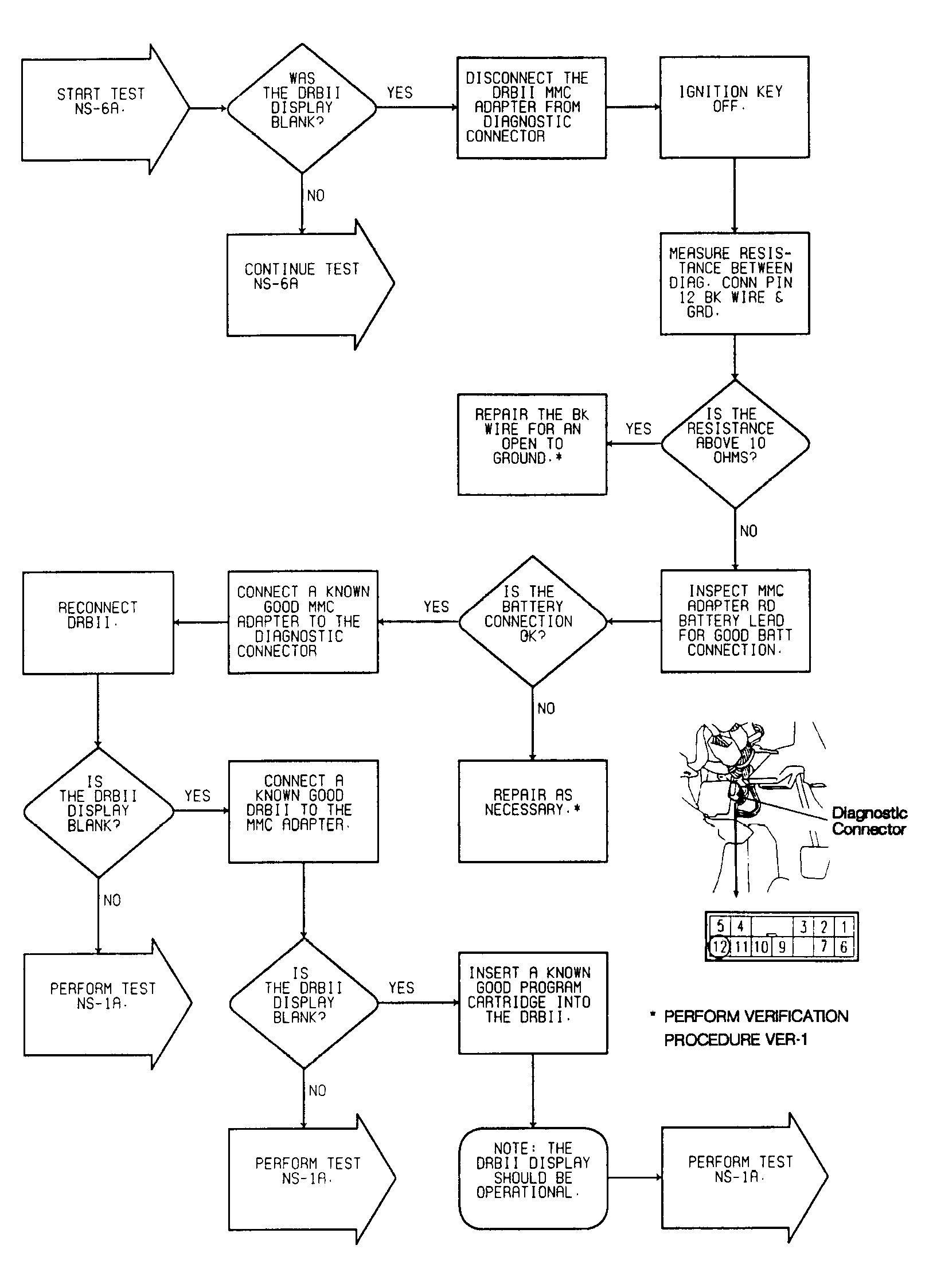

Fig 2: No Start Test NS-6A: Diagnostic Flow Chart (1 of 2)

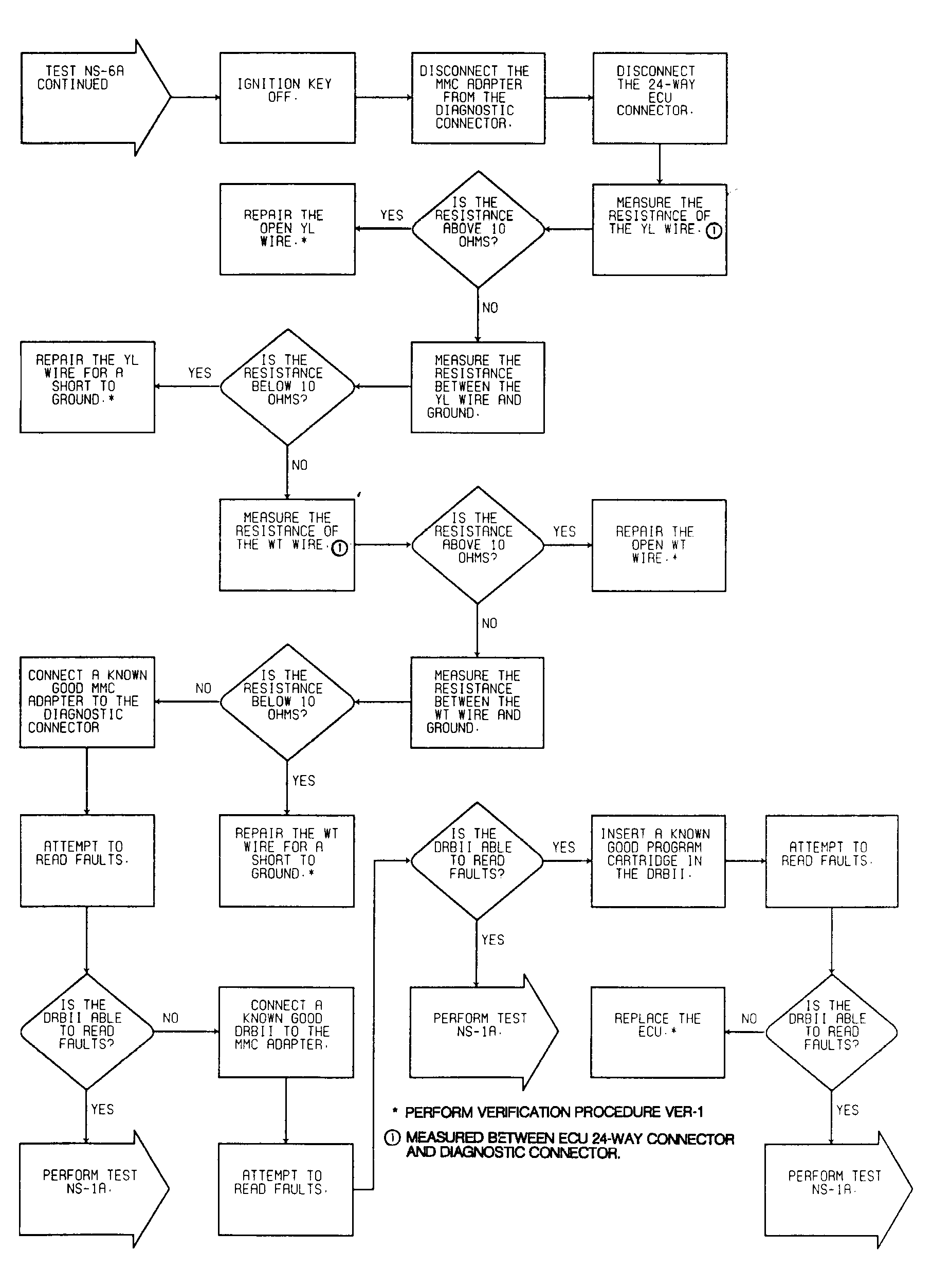

Fig 3: No Start Test NS-6A: Diagnostic Flow Chart (2 of 2)
