Dr-20A: Testing EGR System
Dr-20A: Testing EGR System

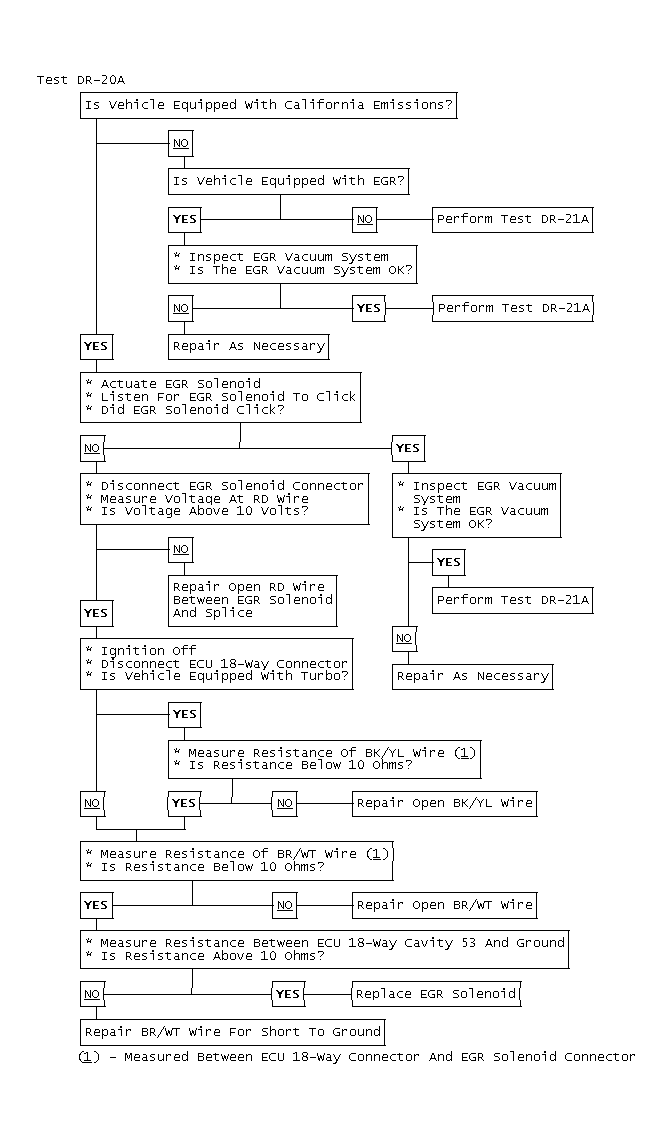

Fig 1: Driveability Test DR-20A: Diagnostic Flow Chart

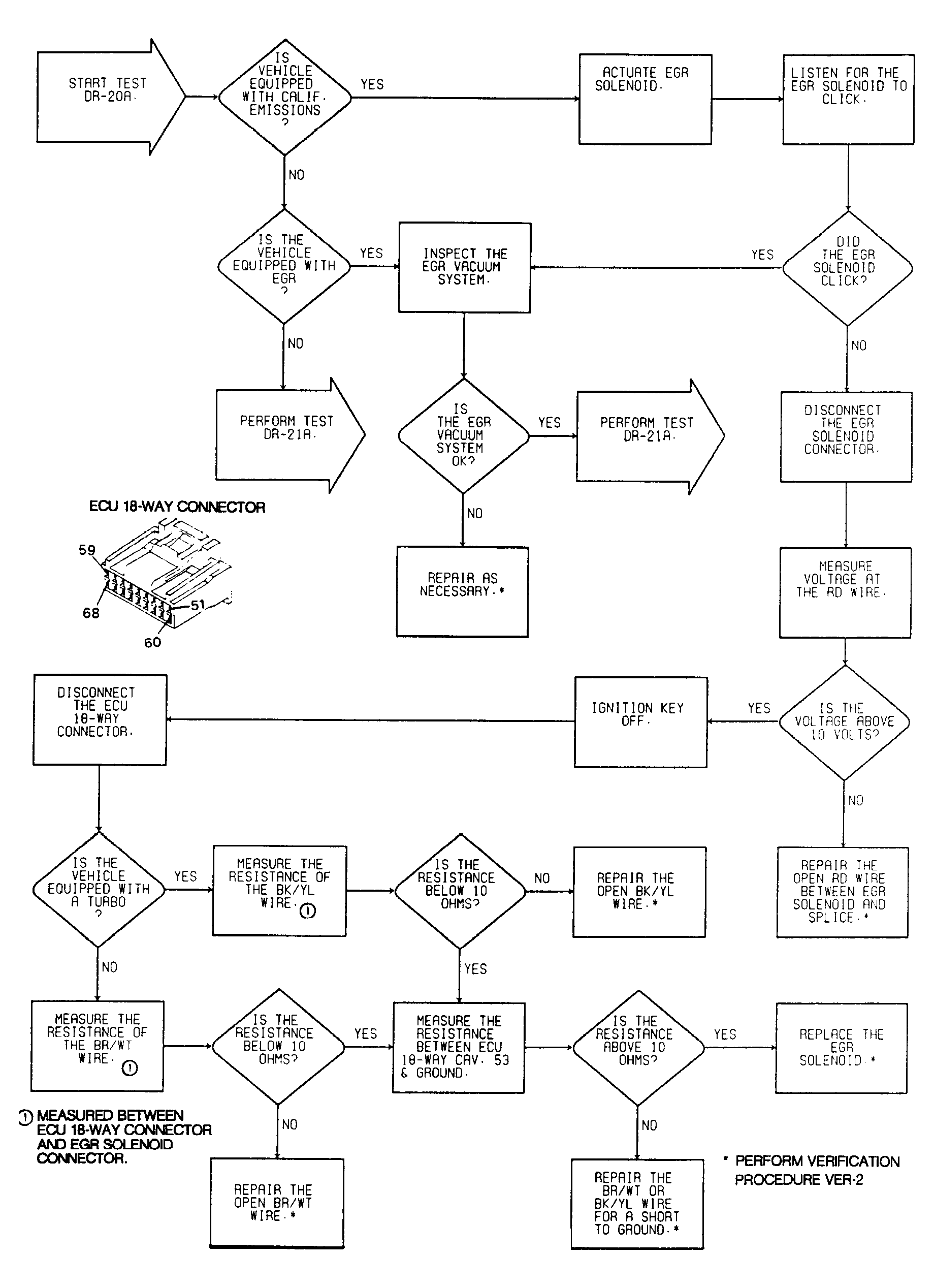

Fig 2: Test DR-20A
