Dr-2A: Testing Oxygen Sensor

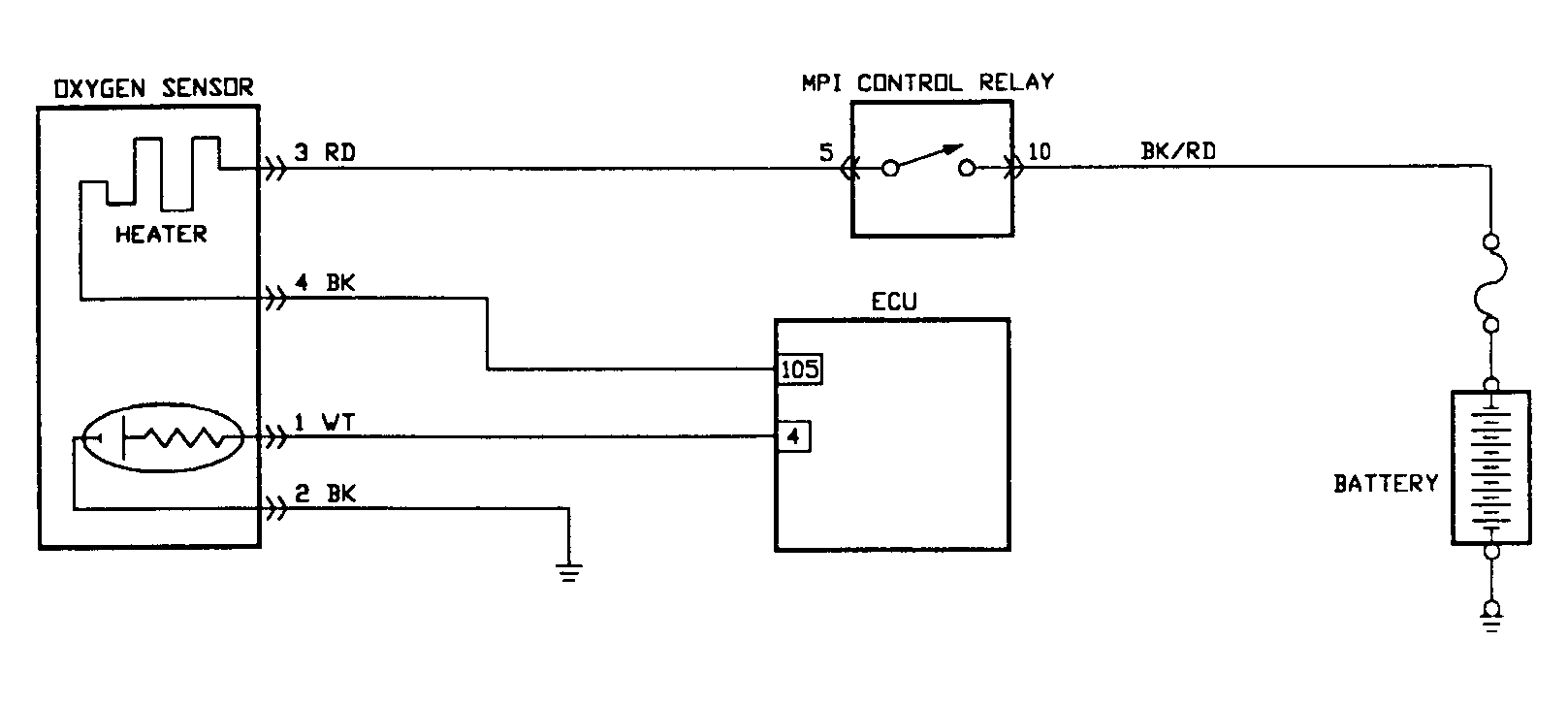

Fig 1: Driveability Test DR-2A: Circuit Diagram

G91G10765

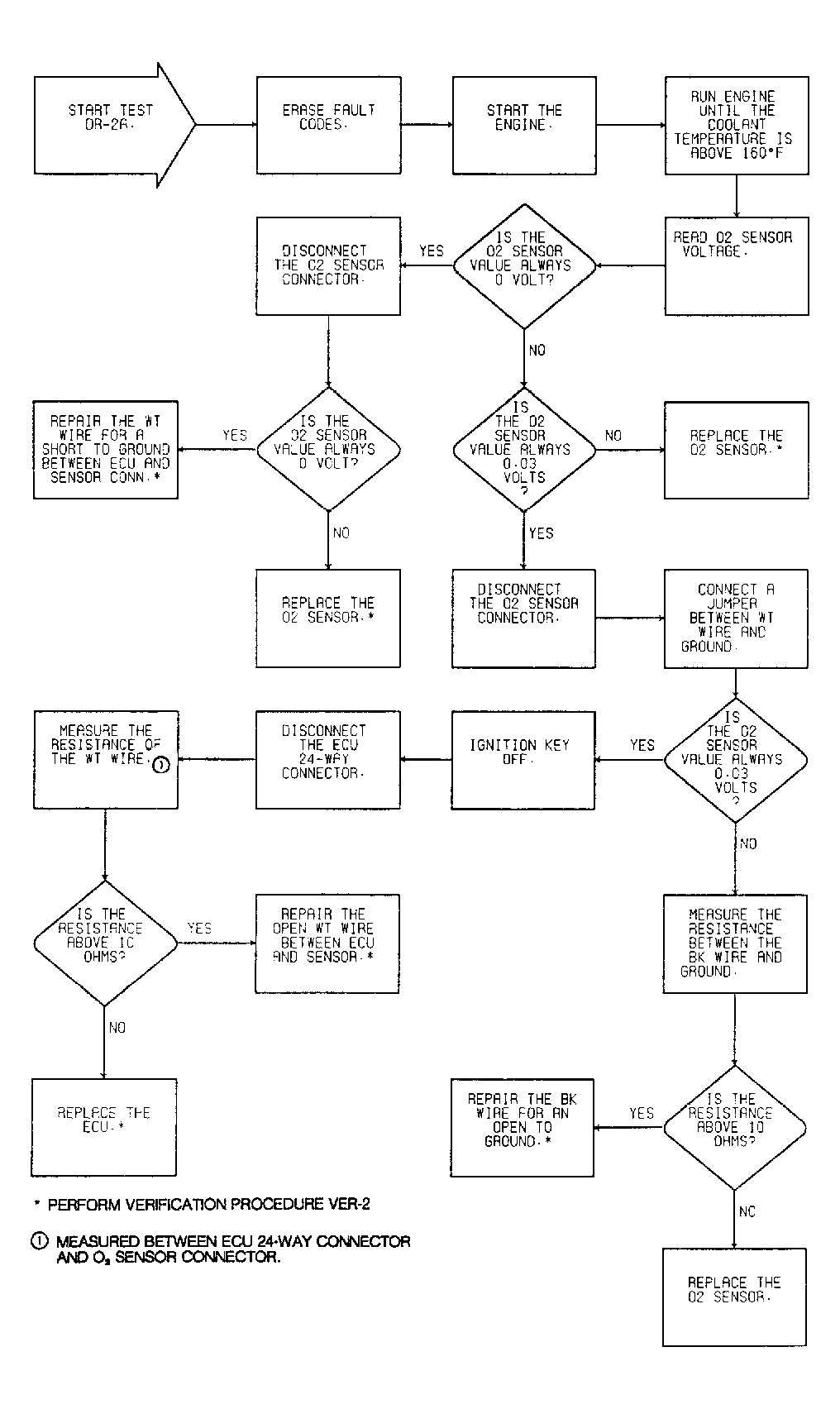

Fig 2: Driveability Test DR-2A: Diagnostic Flow Chart

G91C11108

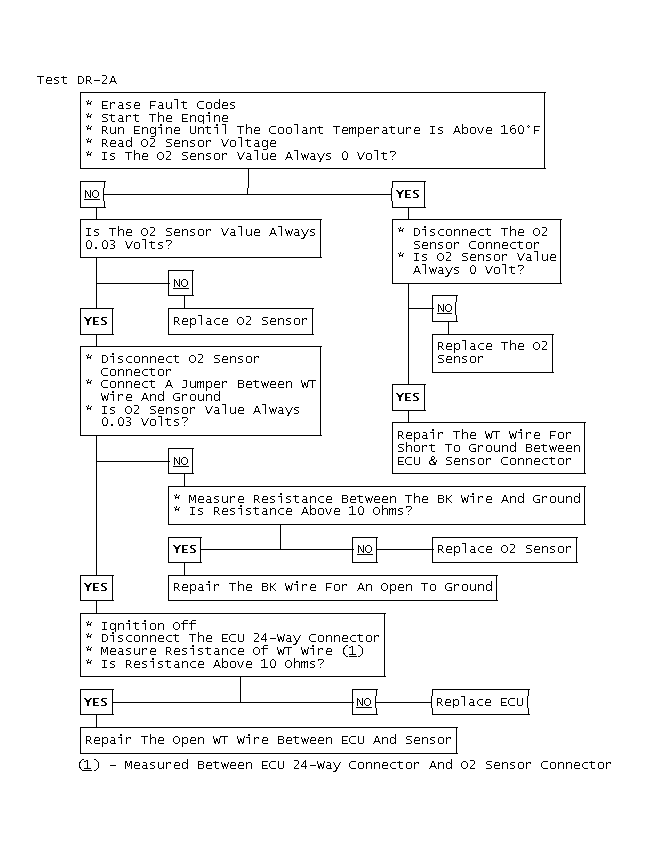

Fig 3: Test DR-2A

GB0044635
