Dr-9A: Testing Barometric Pressure Sensor

Fig 1: Driveability Test DR-9A: Circuit Diagram

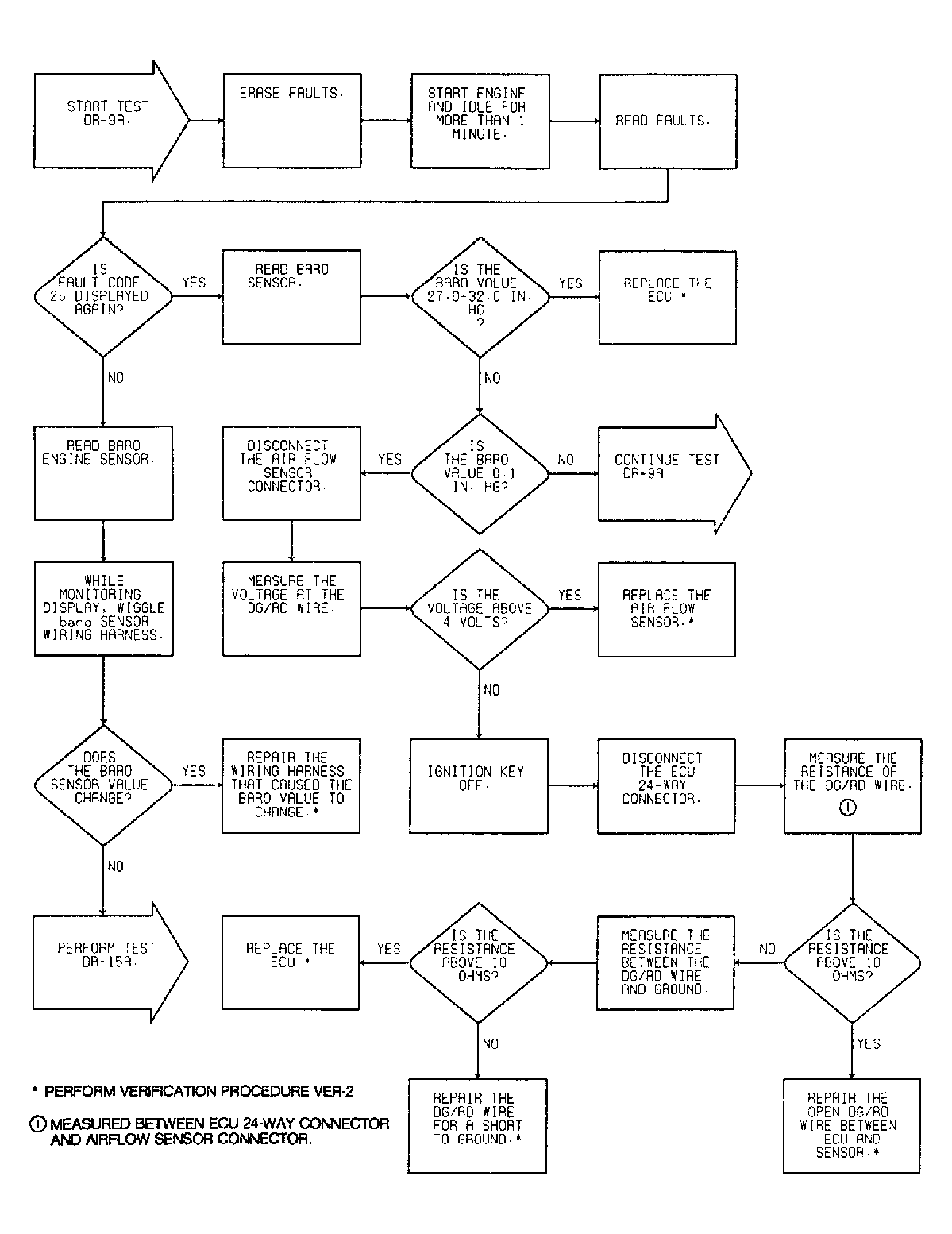

Fig 2: Driveability Test DR-9A: Diagnostic Flow Chart (1 of 2)

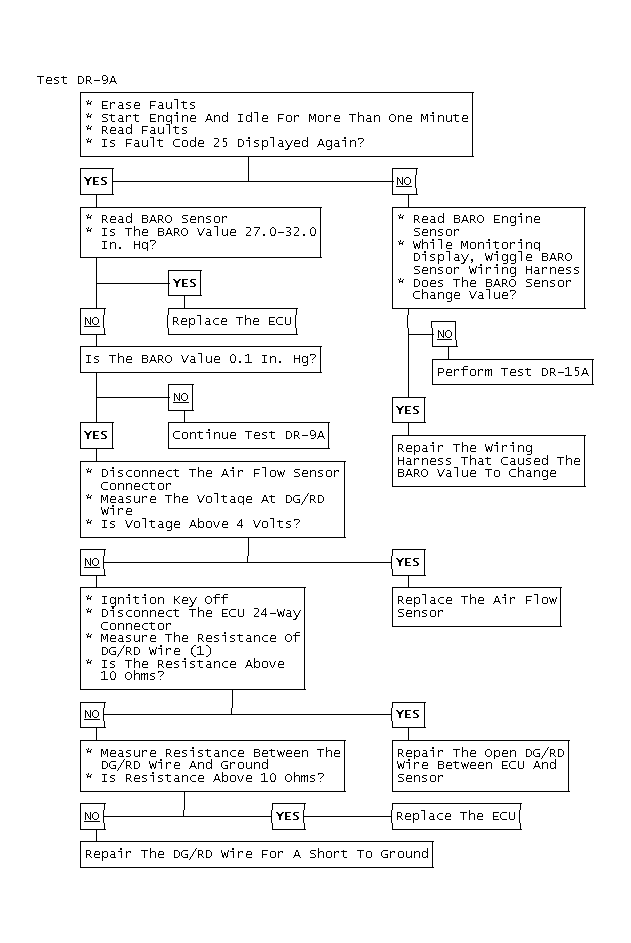

Fig 3: Test DR-9A

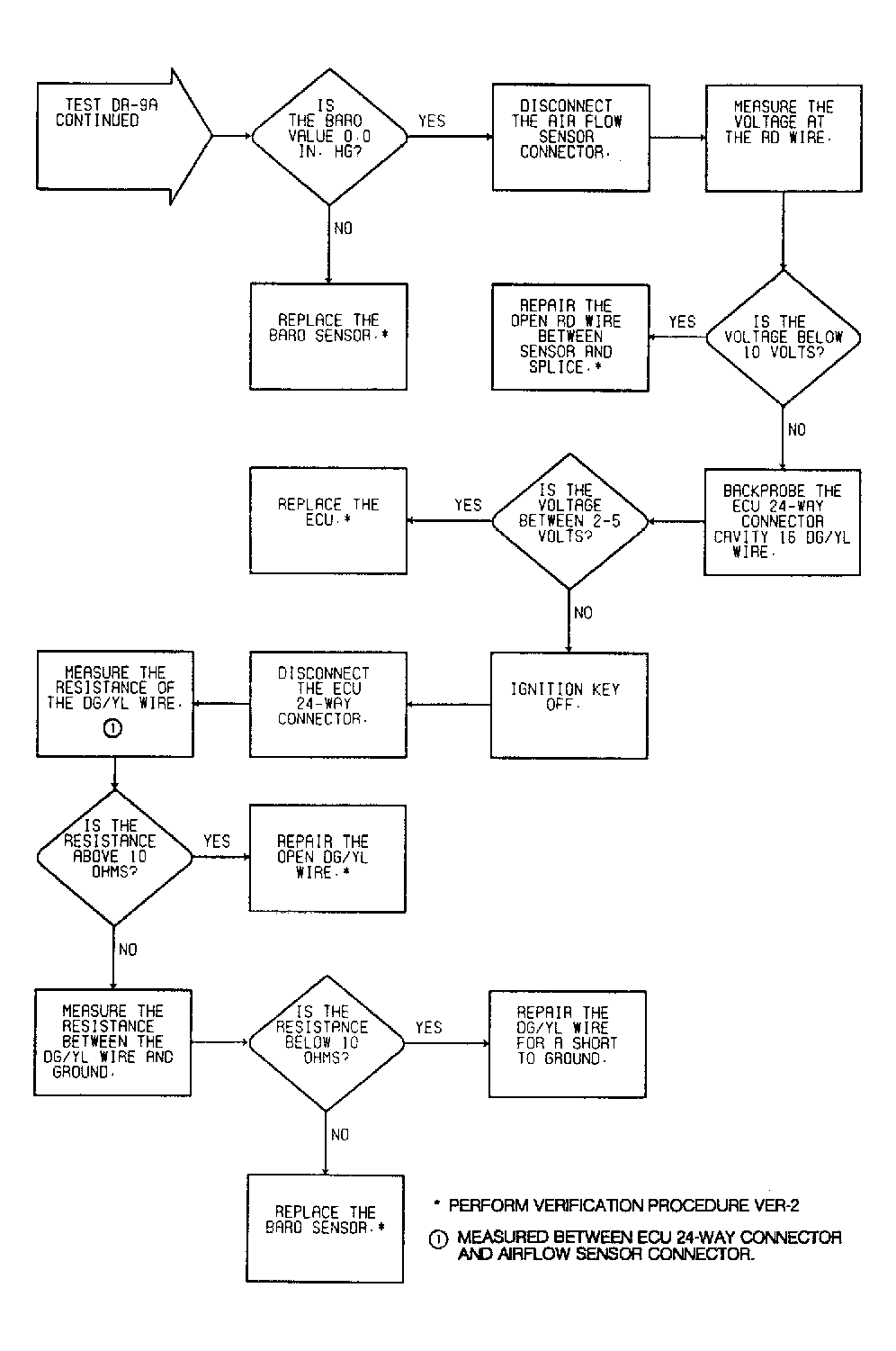

Fig 4: Driveability Test DR-9A: Diagnostic Flow Chart (2 of 2)

Fig 5: Test DR-9A Continued
