Home › Mitsubishi › 1991 › Eclipse GSX, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes - 1.8L › Code Charts › NS-2A: Checking Fuel System

NS-2A: Checking Fuel System

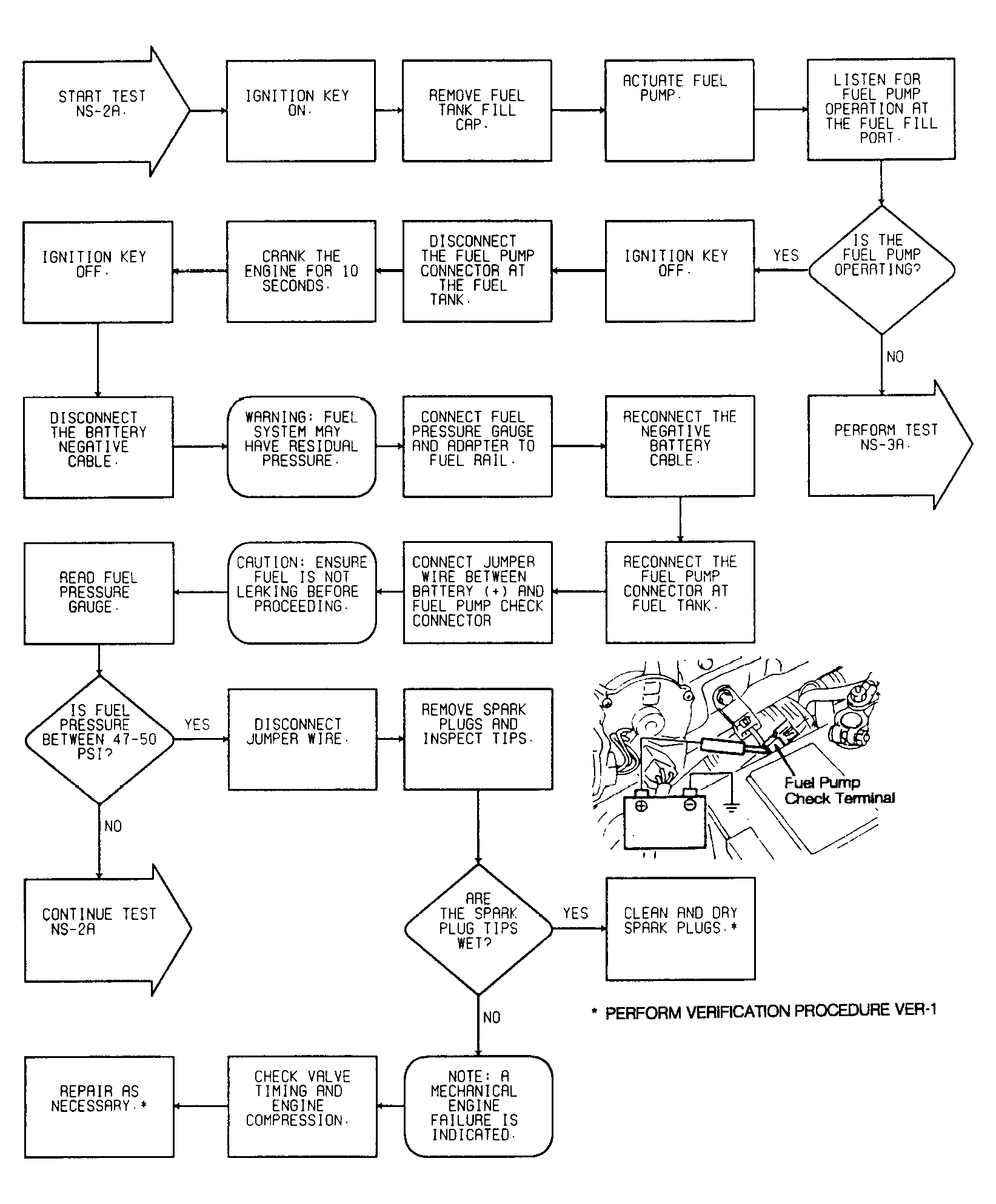

Fig 1: No Start Test NS-2A: Diagnostic Flow Chart (1 of 2)

G91D10713

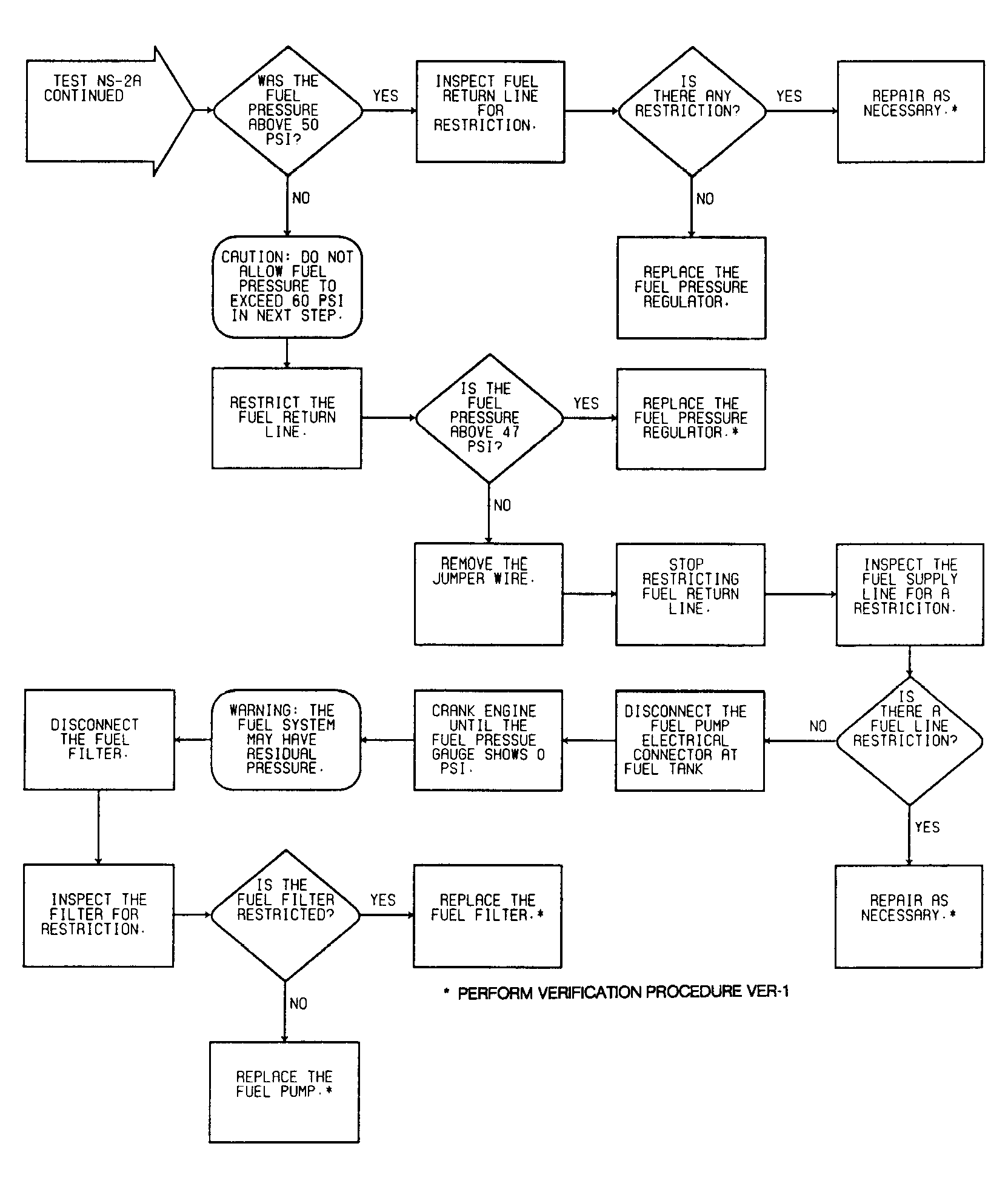

Fig 2: No Start Test NS-2A: Diagnostic Flow Chart (2 of 2)

G91E10714
