NS-5A: Repairing Fuel System

Fig 1: No Start Test NS-5A: Circuit Diagram

G91B10695

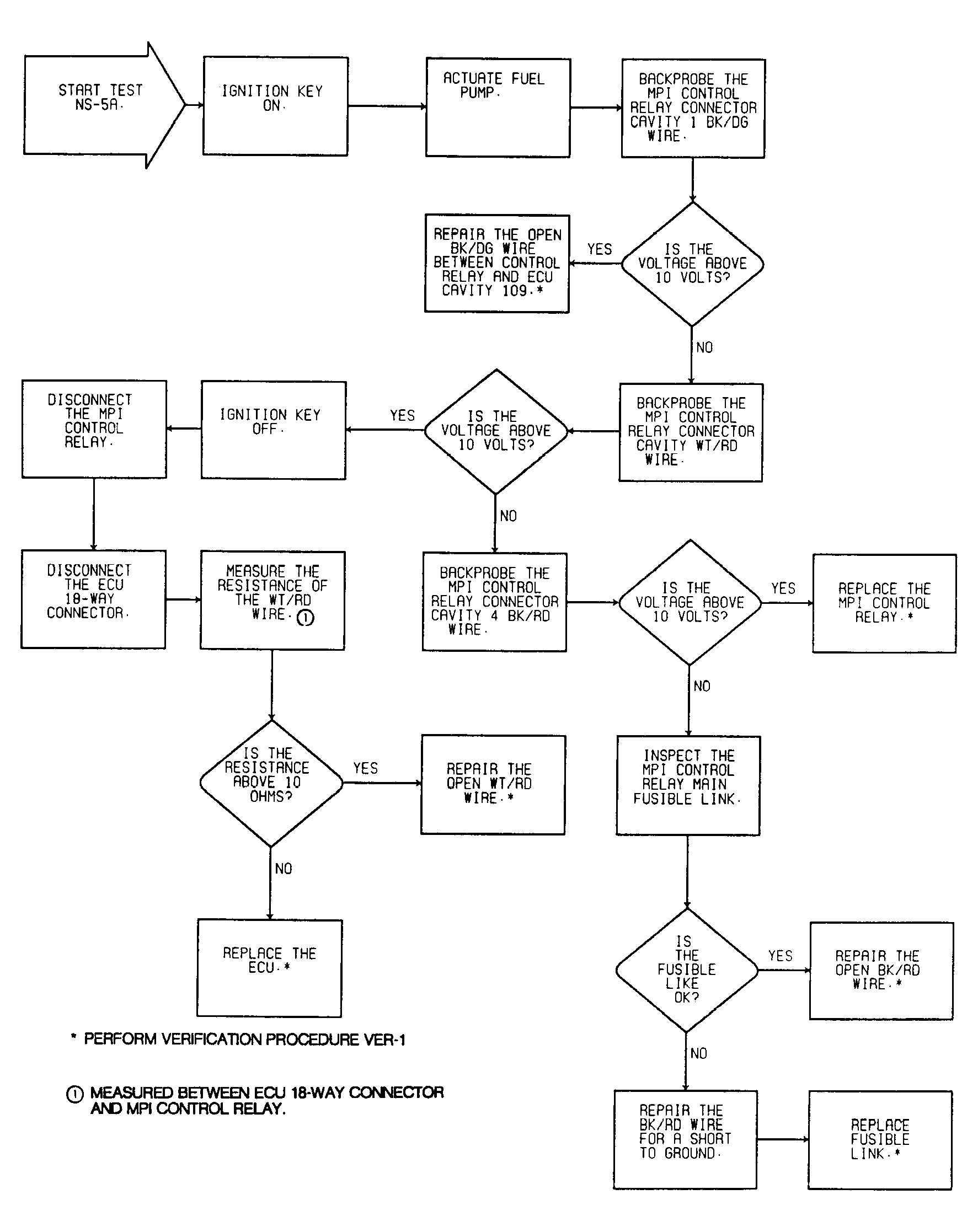

Fig 2: No Start Test NS-5A: Diagnostic Flow Chart

G91I10718
