Trouble Shooting: Notes

NOTE: For further trouble shooting information, see CHECK RESULTS & SYMPTOM CHARTS. SeeFig 1 -Fig 6 .

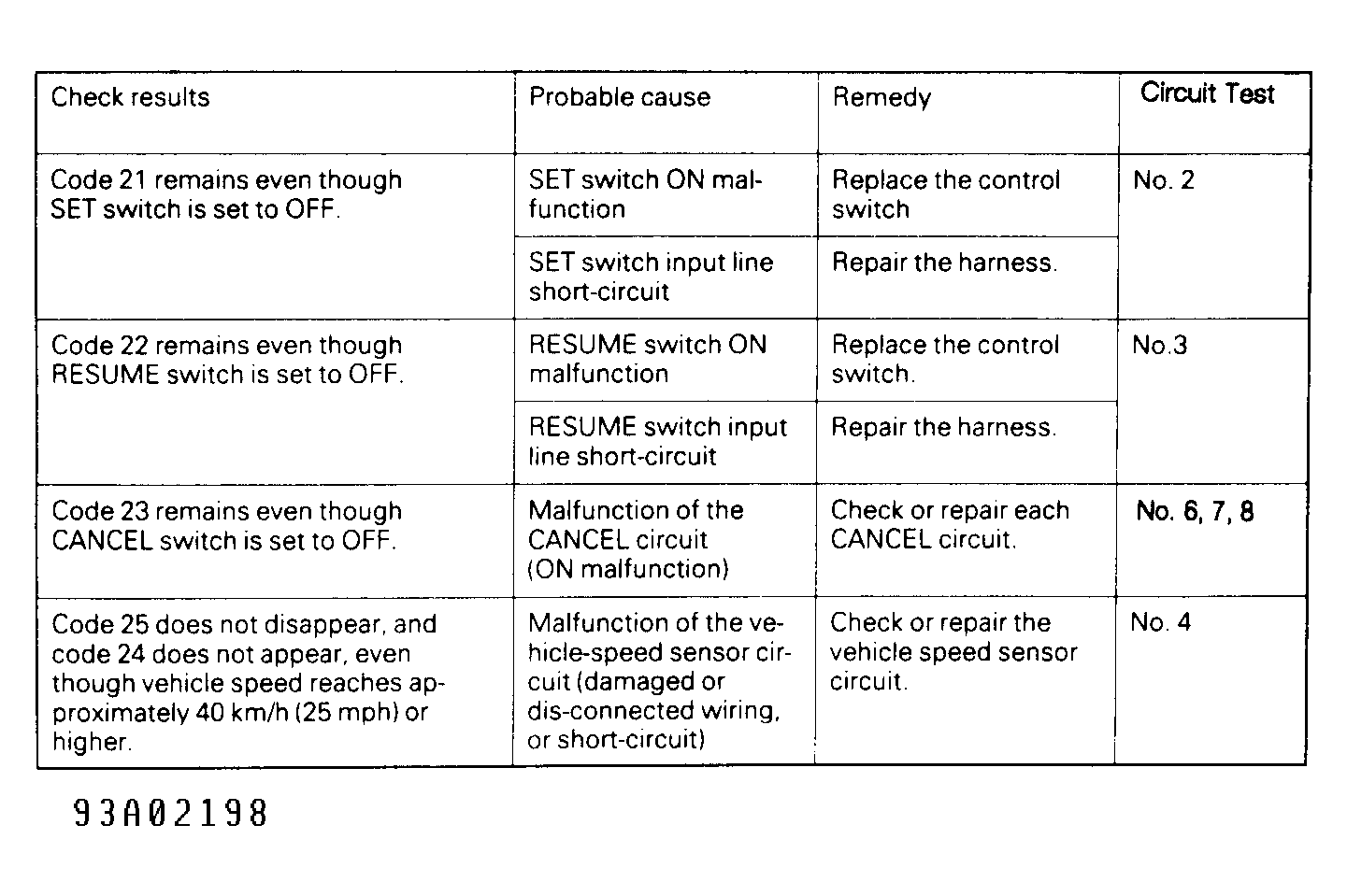

Fig 1: Check Results Chart

Courtesy of MITSUBISHI MOTOR CO.

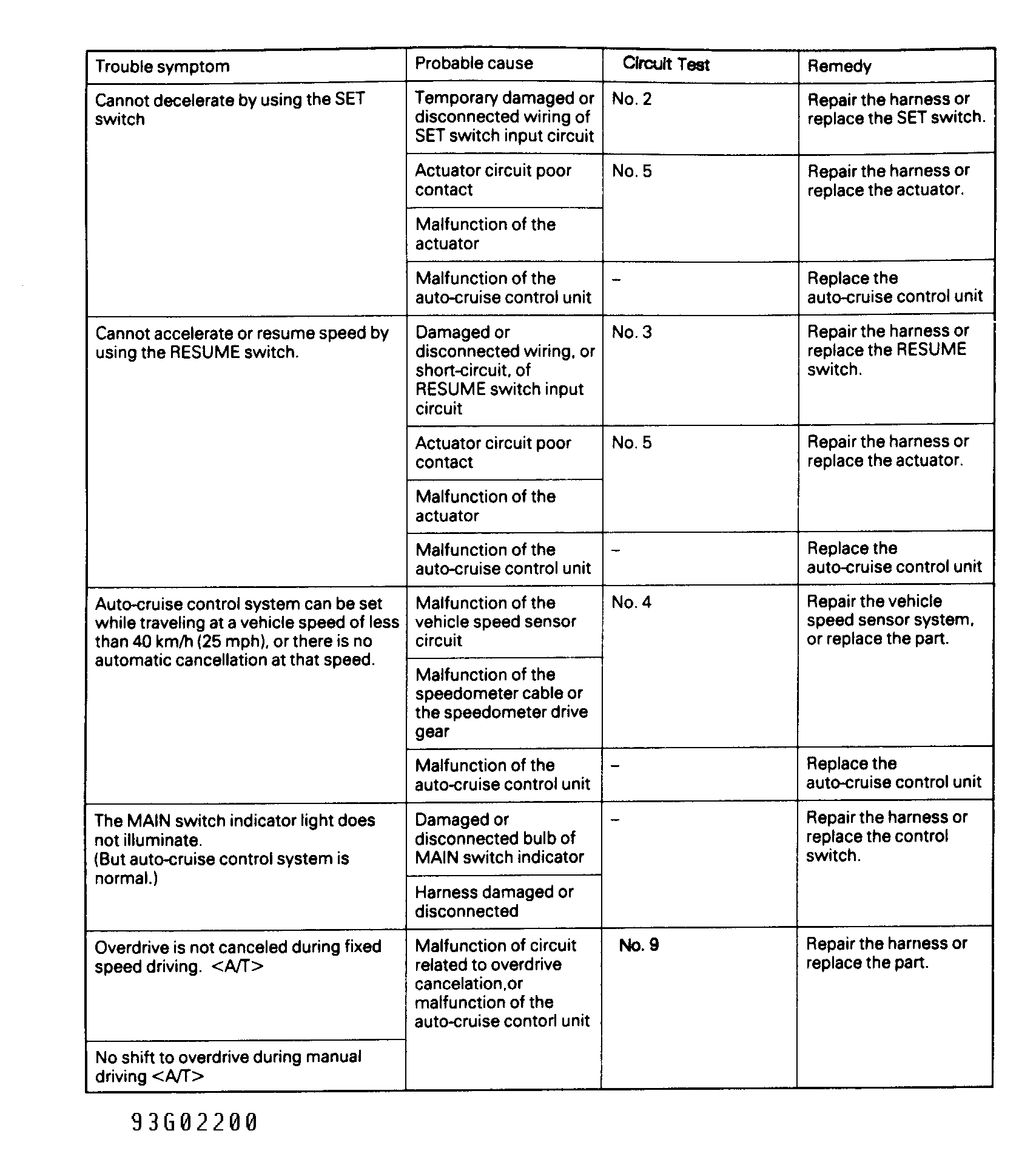

Fig 2: 1991 Symptom Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR CO.

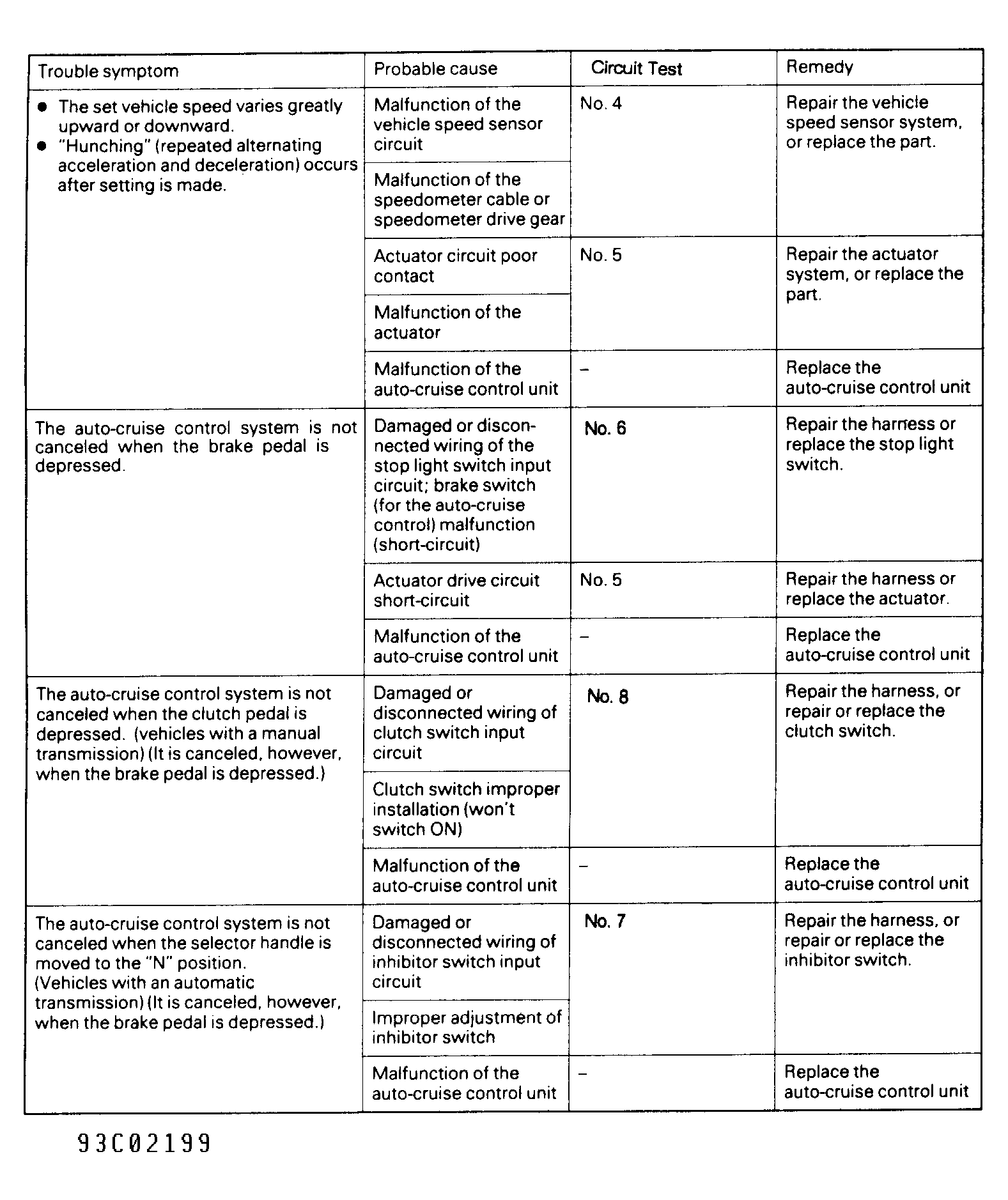

Fig 3: 1991 Symptom Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR CO.

Fig 4: 1992 Check Results Chart

Courtesy of MITSUBISHI MOTOR CO.

Fig 5: 1992 Symptom Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR CO.

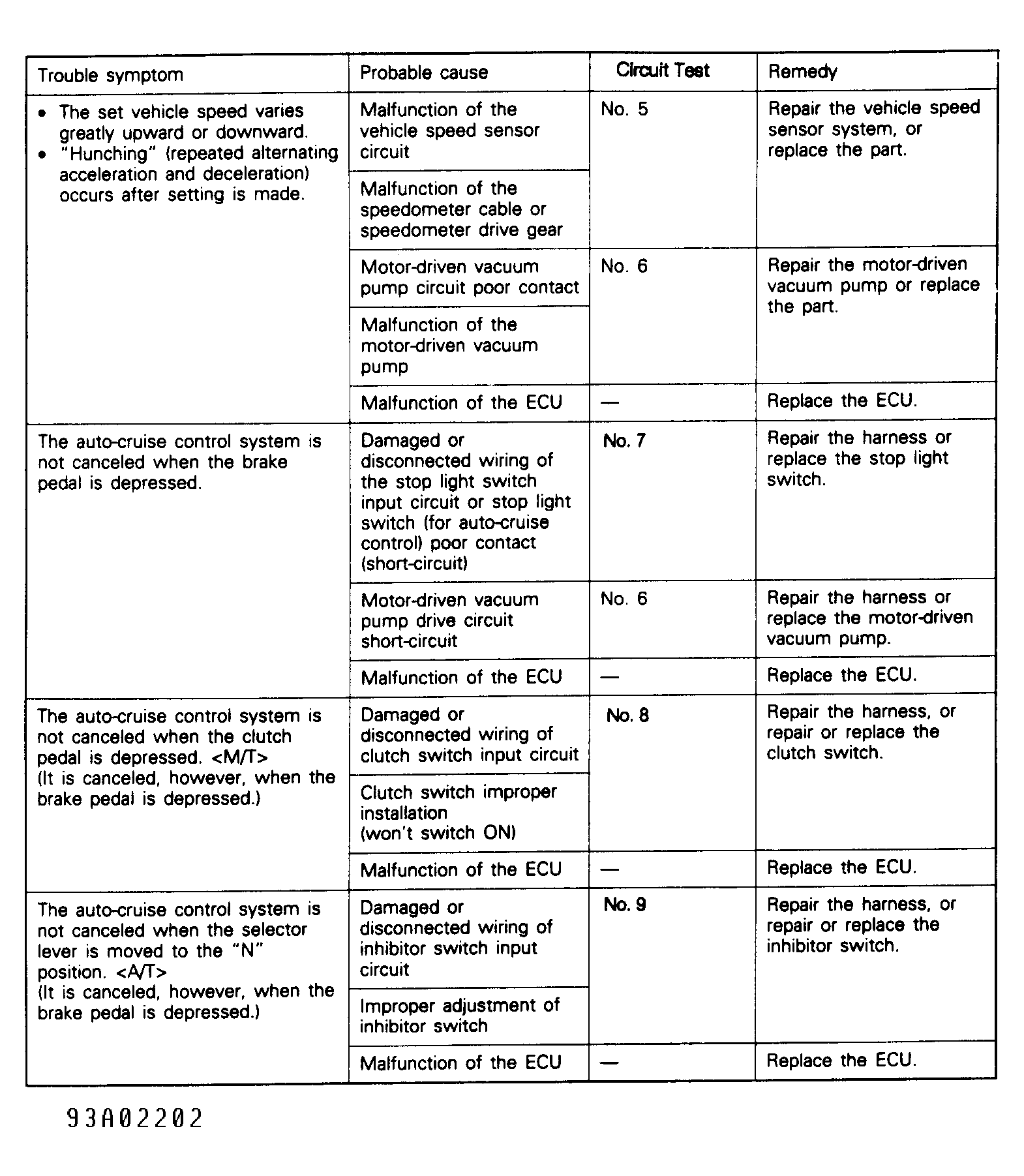

Fig 6: 1992 Symptom Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR CO.
