Data Display 18: Ignition Switch (A/T Only)

NOTE: Diagnostic procedure is the same for 2.4L and 3.0L.

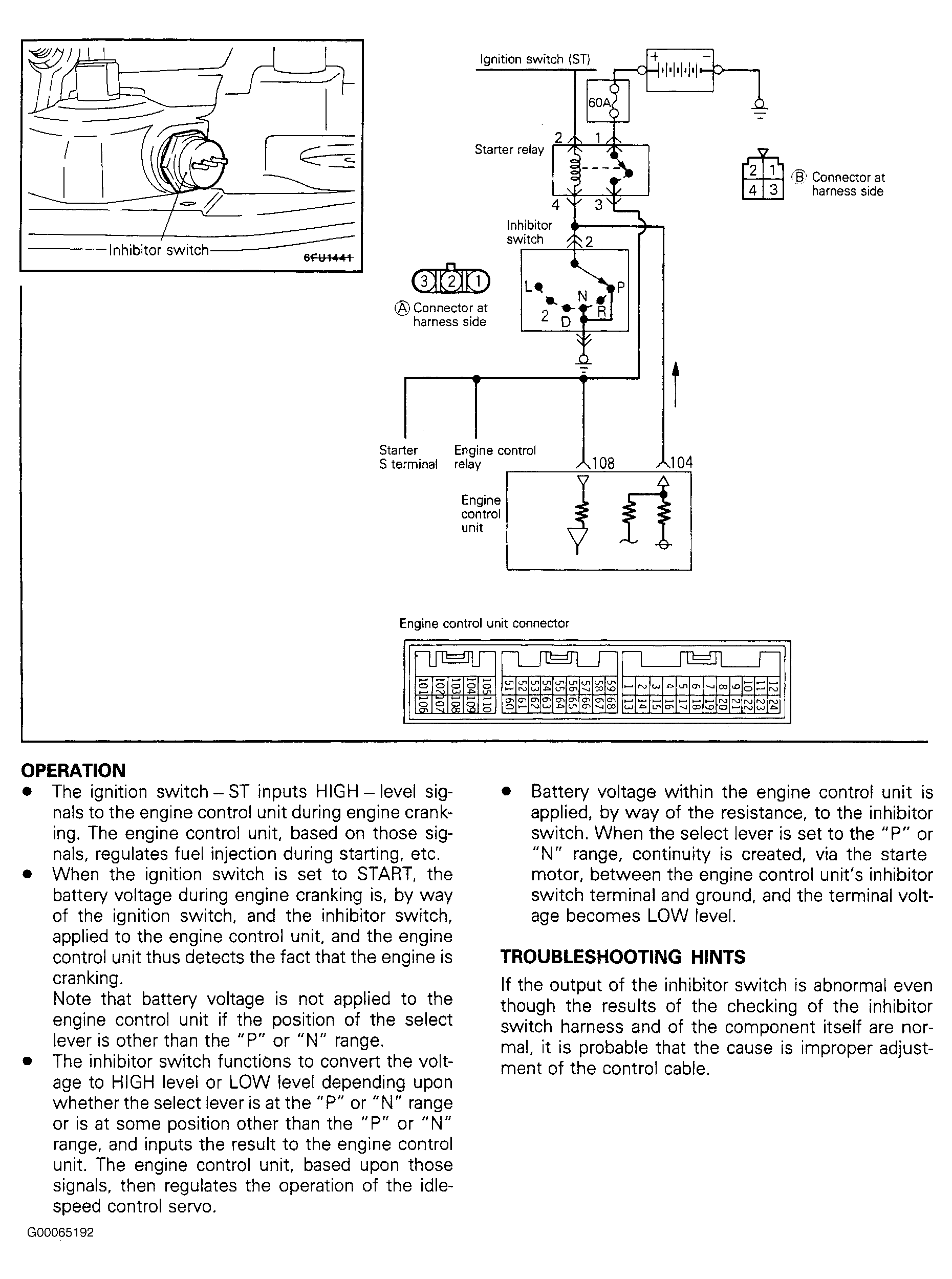

Fig 1: Ignition Switch & Inhibitor Switch (Start; A/T Only) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

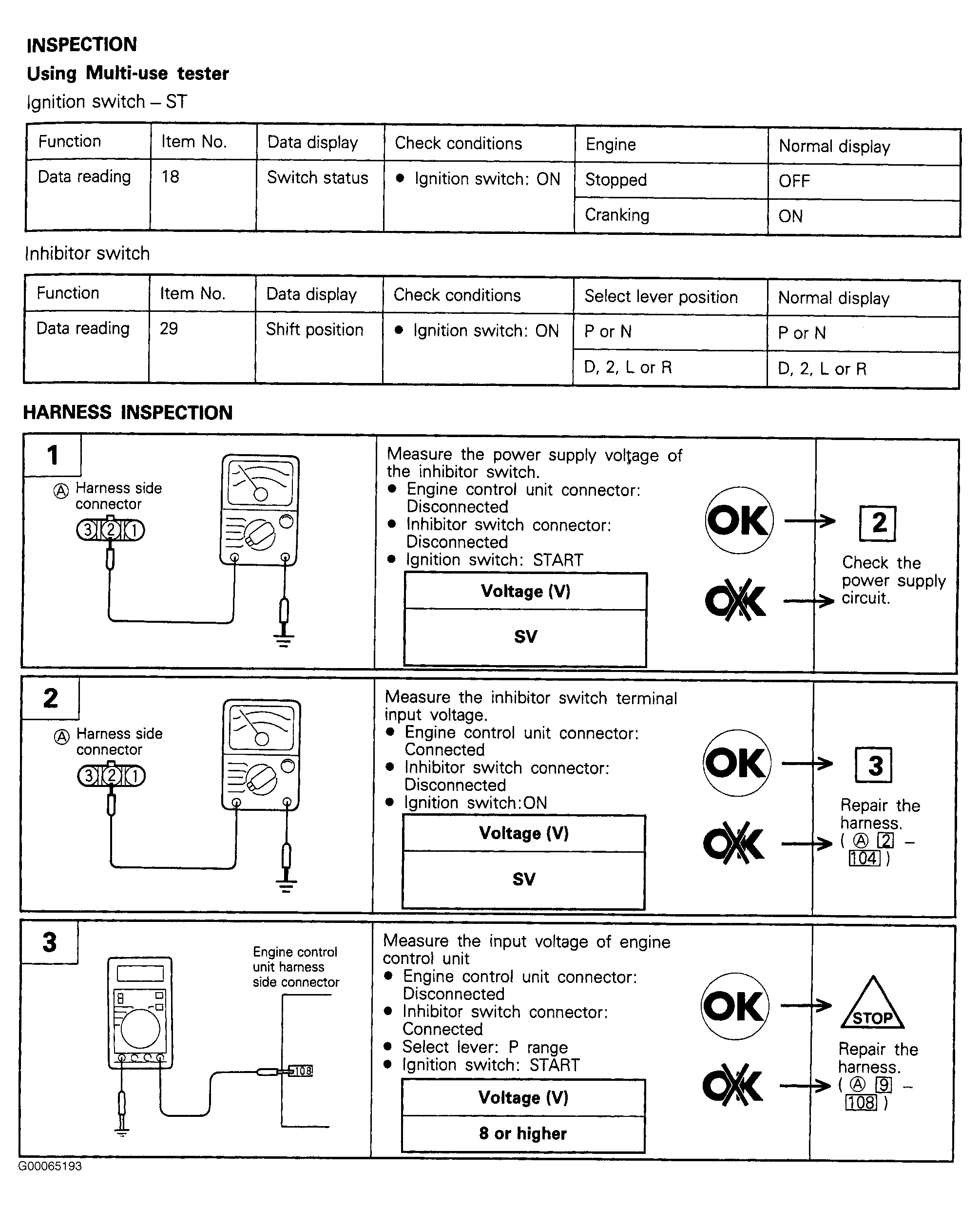

Fig 2: Ignition Switch & Inhibitor Switch (Start; A/T Only) - Step 1-3 (2Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
