Data Display 26: Idle Position Switch

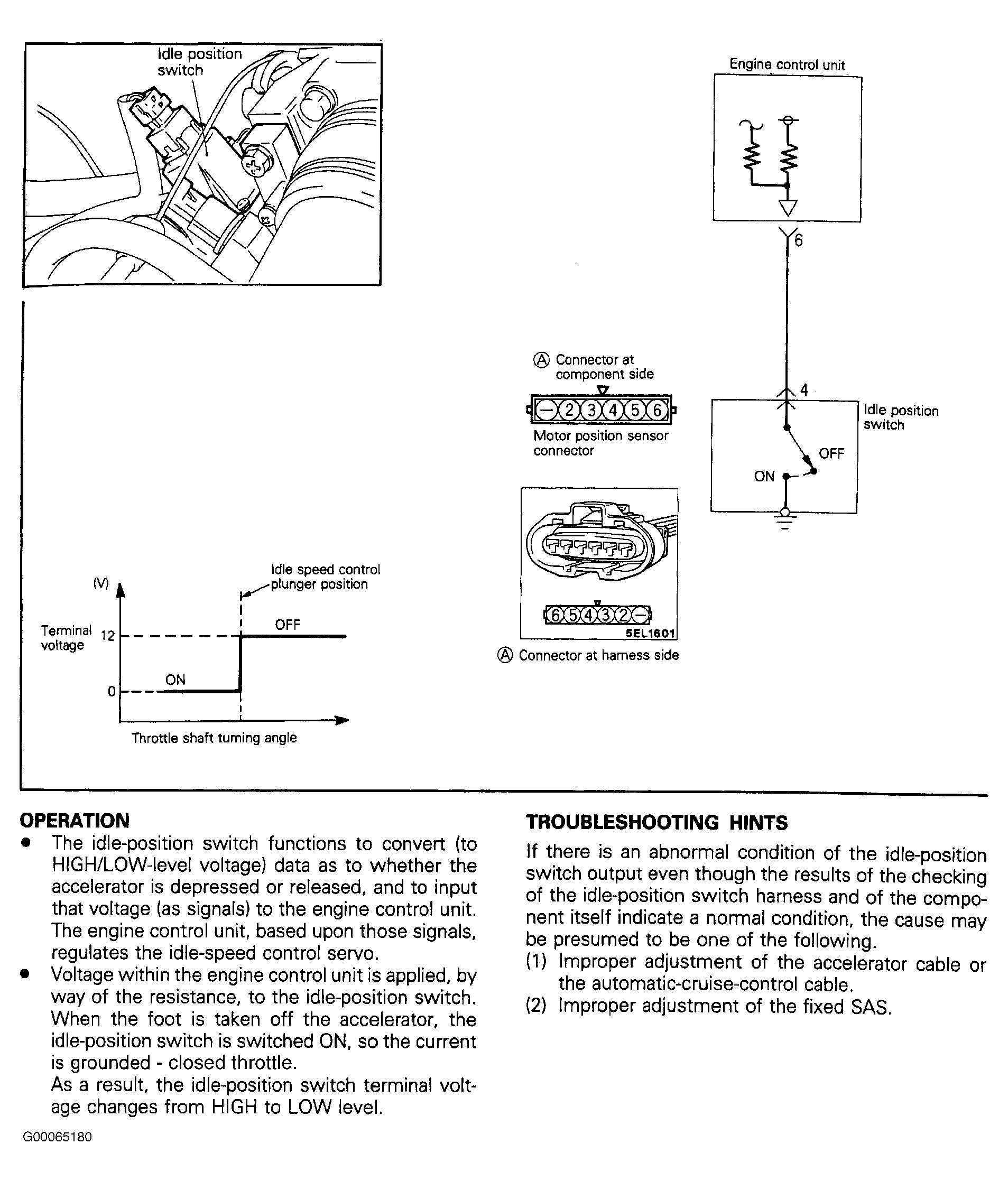

Fig 1: Idle Position Switch (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

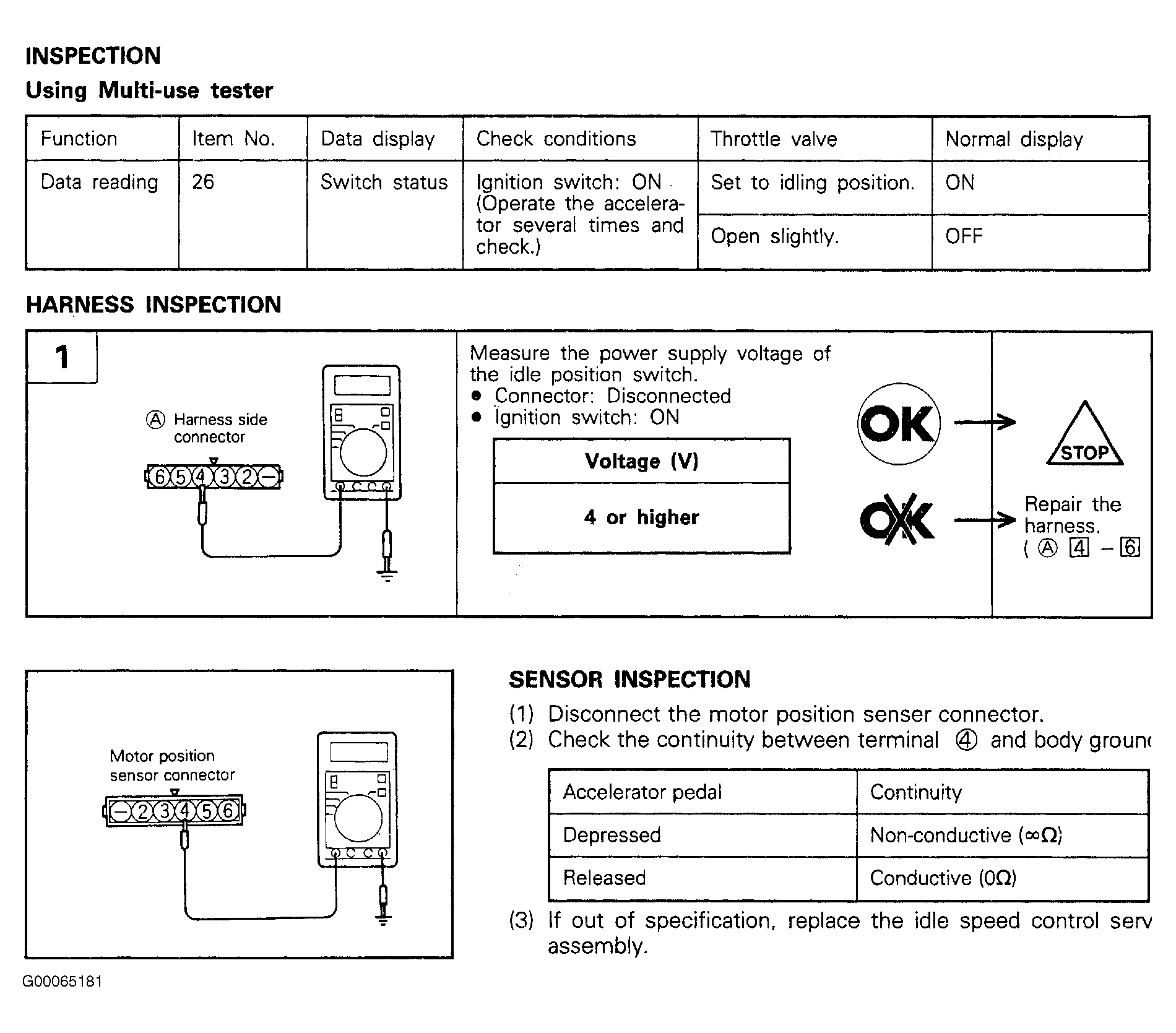

Fig 2: Idle Position Switch - Step 1 (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
