Data Display 26: Idle Position Switch

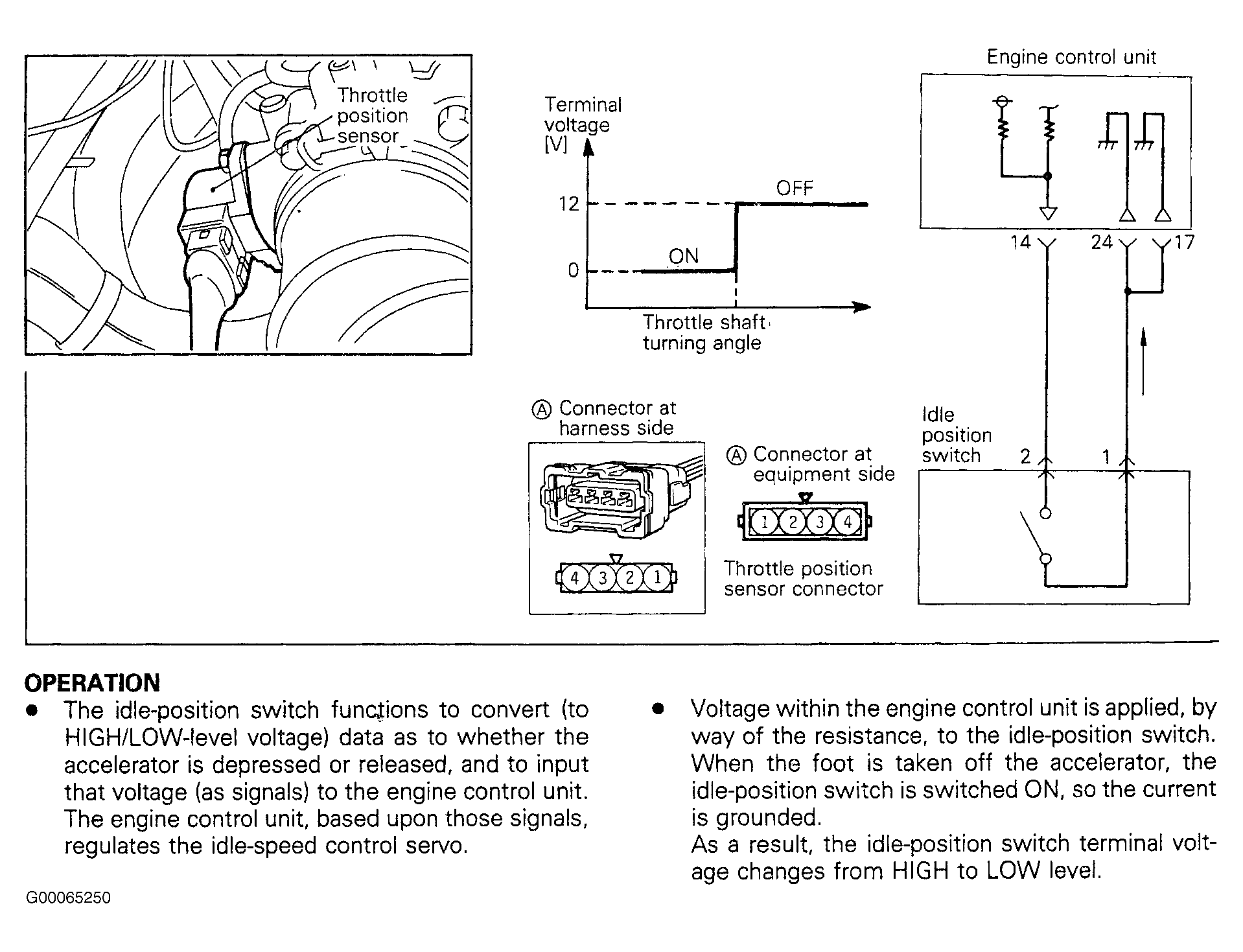

Fig 1: Idle Position Switch (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

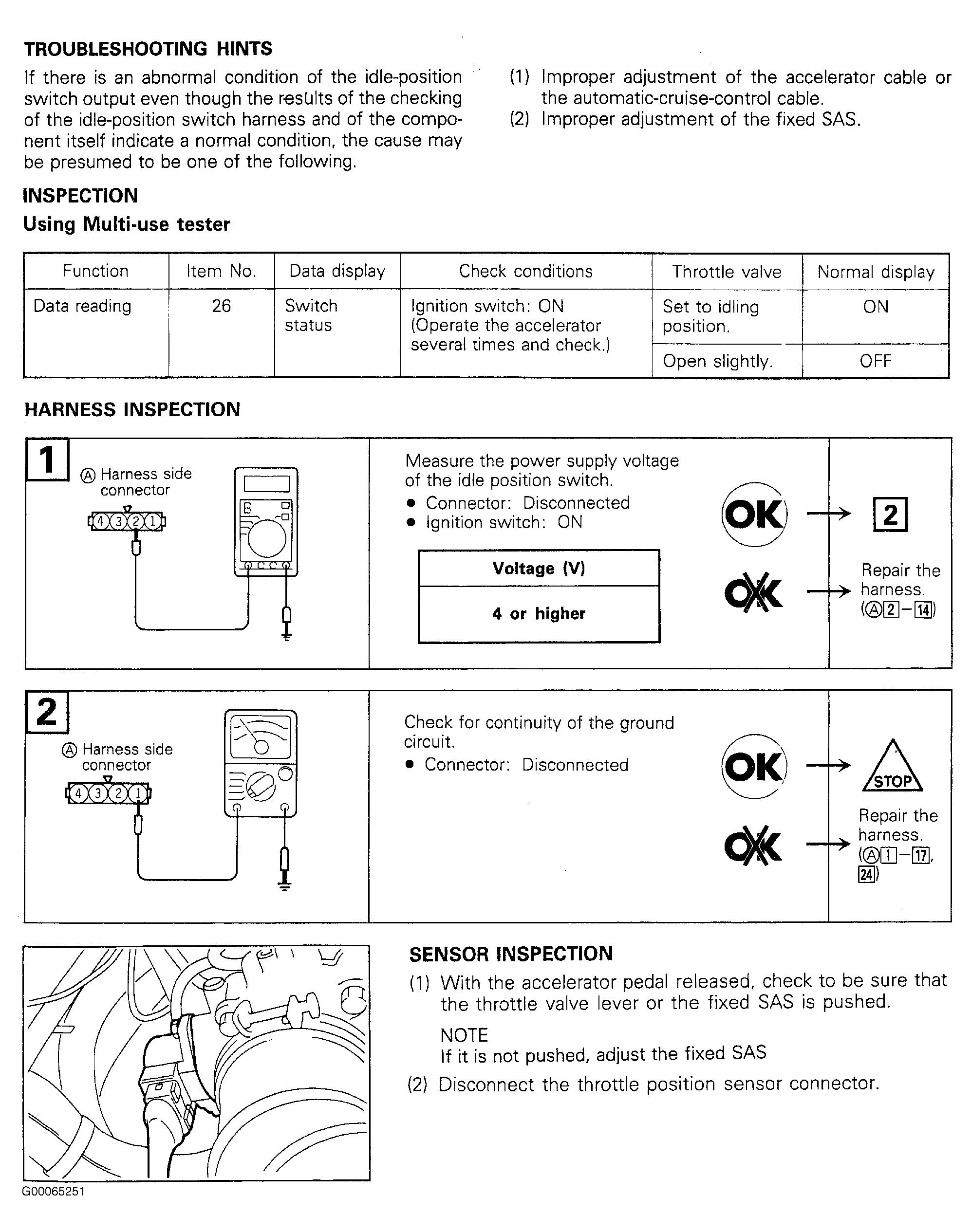

Fig 2: Idle Position Switch - Steps 1 & 2 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

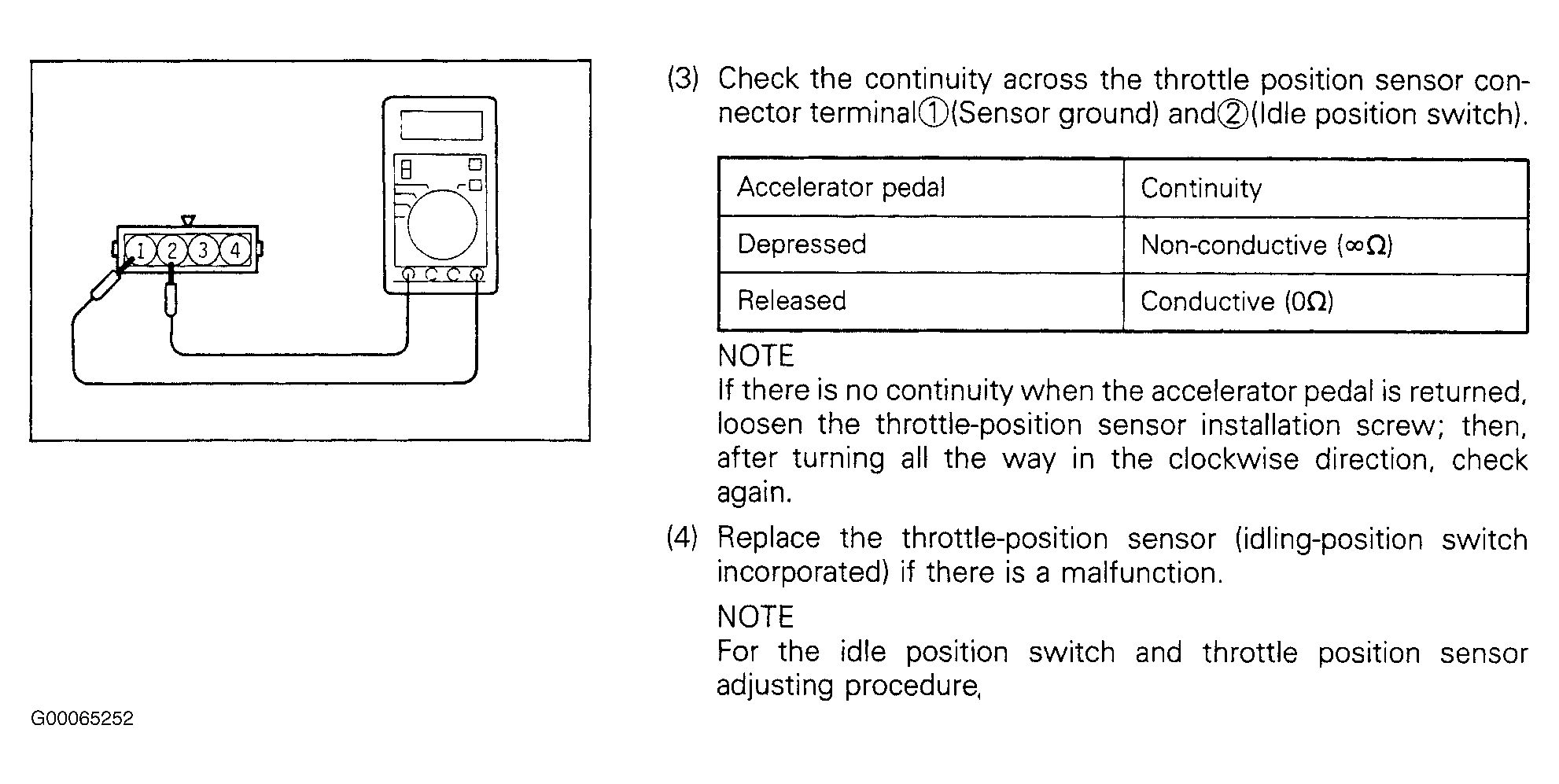

Fig 3: Idle Position Switch (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
