Mitsubishi
›
1991
›
Pickup Mighty Max 1 Ton
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Service Adjustment Procedures (2.4L)
›
Throttle Position Sensor
Throttle Position Sensor

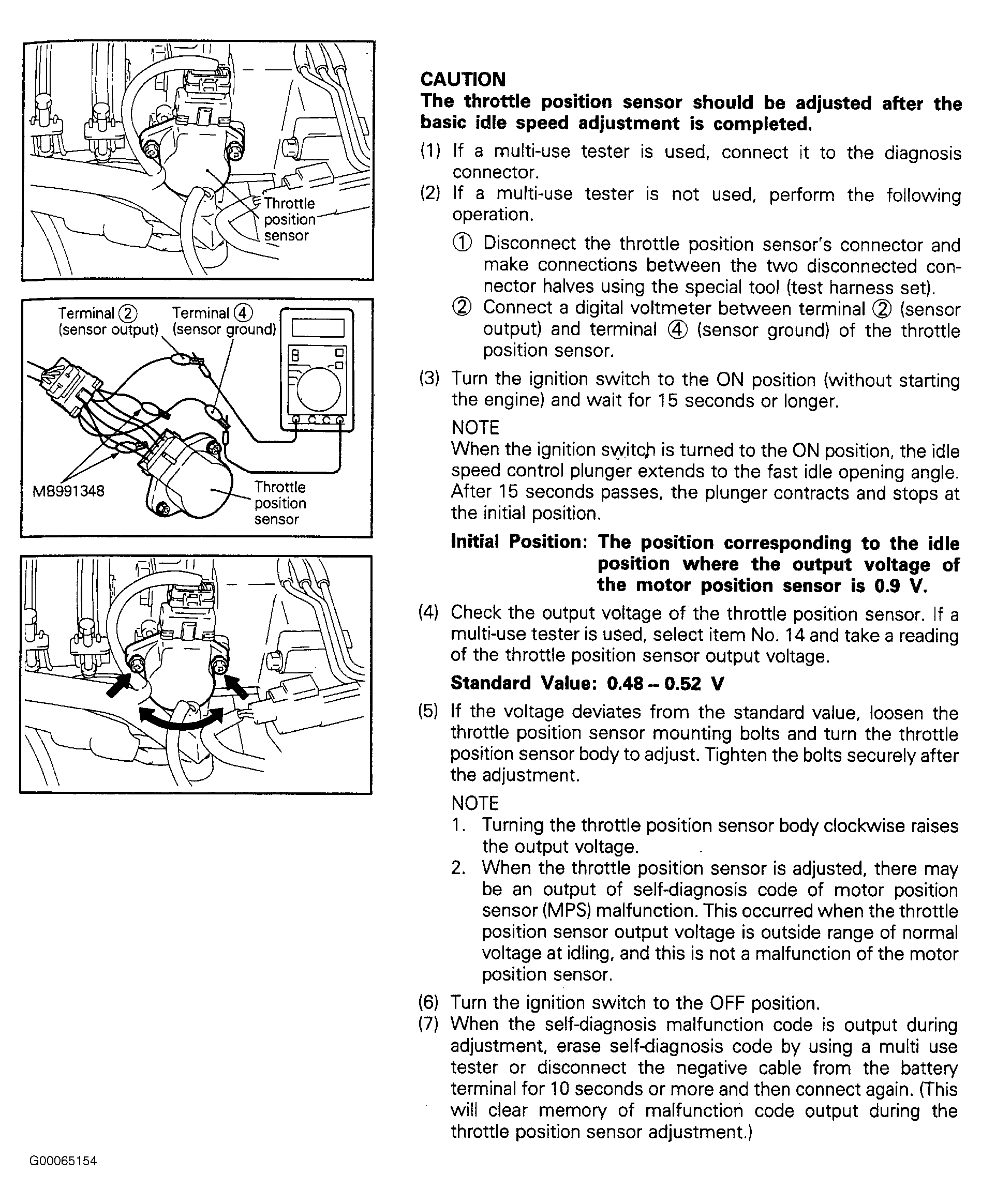

Fig 1: Throttle Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
