Mitsubishi
›
1991
›
Pickup Mighty Max 1 Ton
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Summary
›
Using Diagnostic Charts
Using Diagnostic Charts

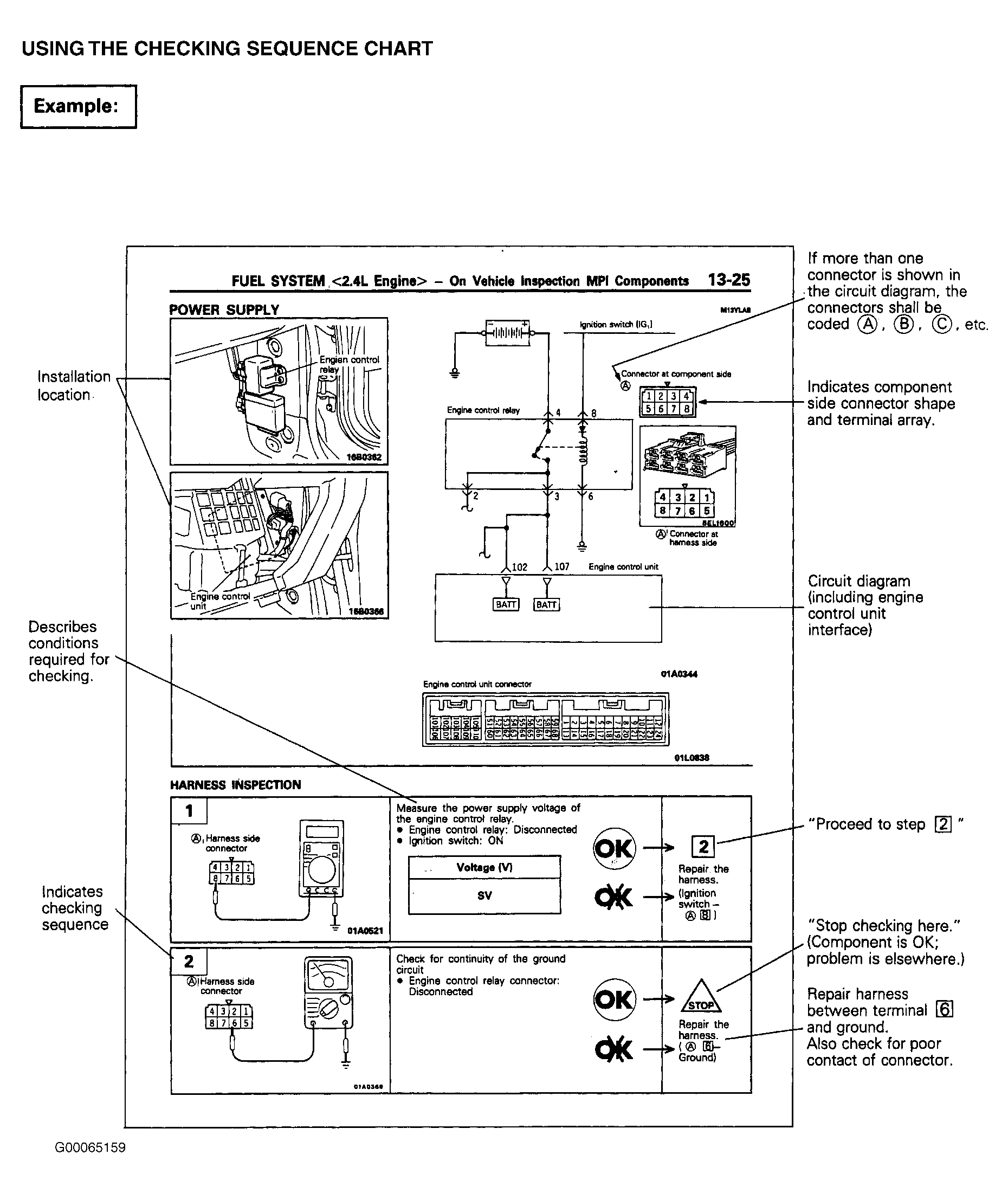

Fig 1: Diagnostic Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
