NS-3: Code 22, Testing Crank Angle Sensor

Fig 1: Test NS-3 Schematic - Code 22 - DOHC Testing Crank Angle Sensor

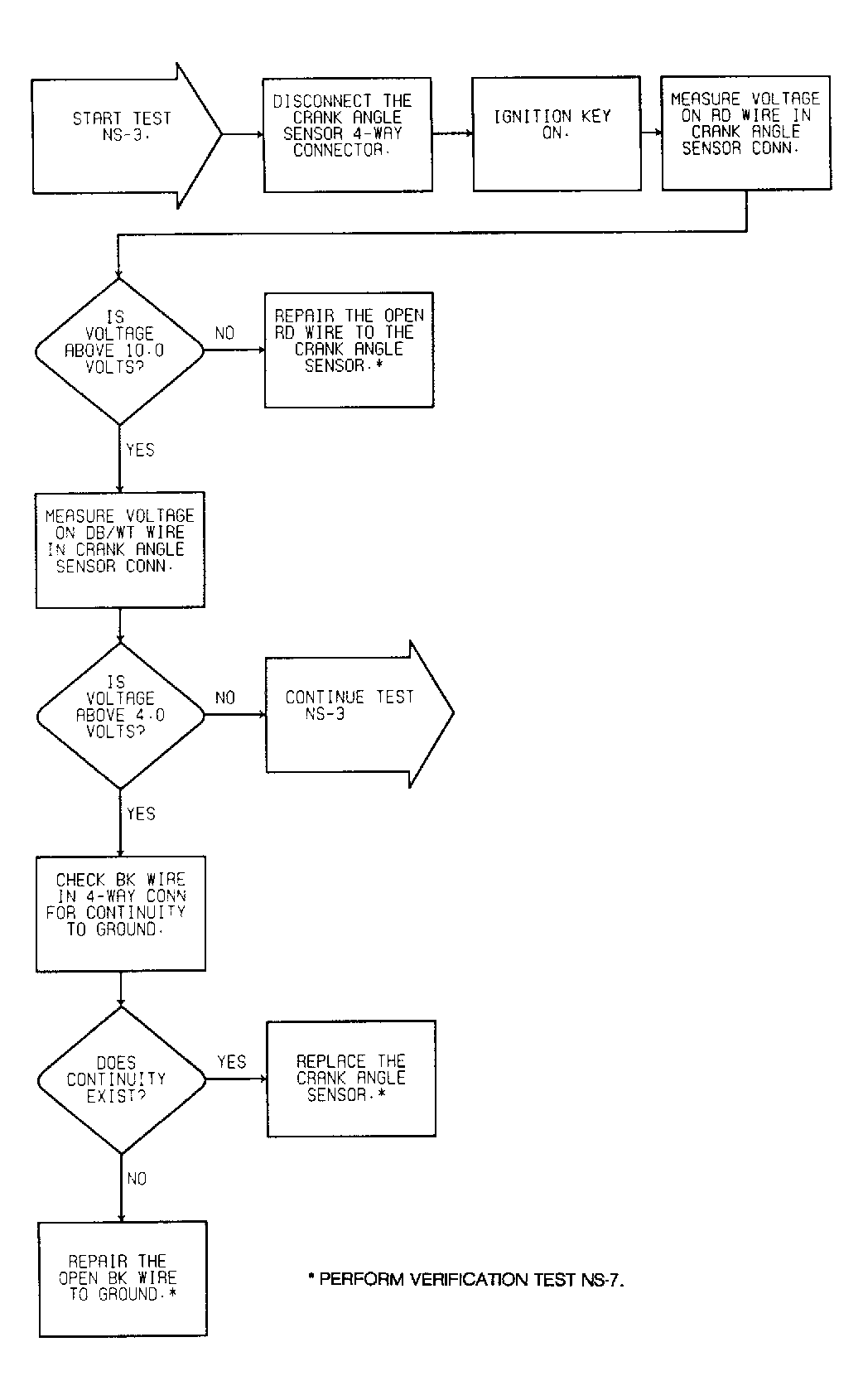

Fig 2: Test NS-3 Flow Chart - Code 22 - DOHC (1 Of 2) Testing Crank Angle Sensor

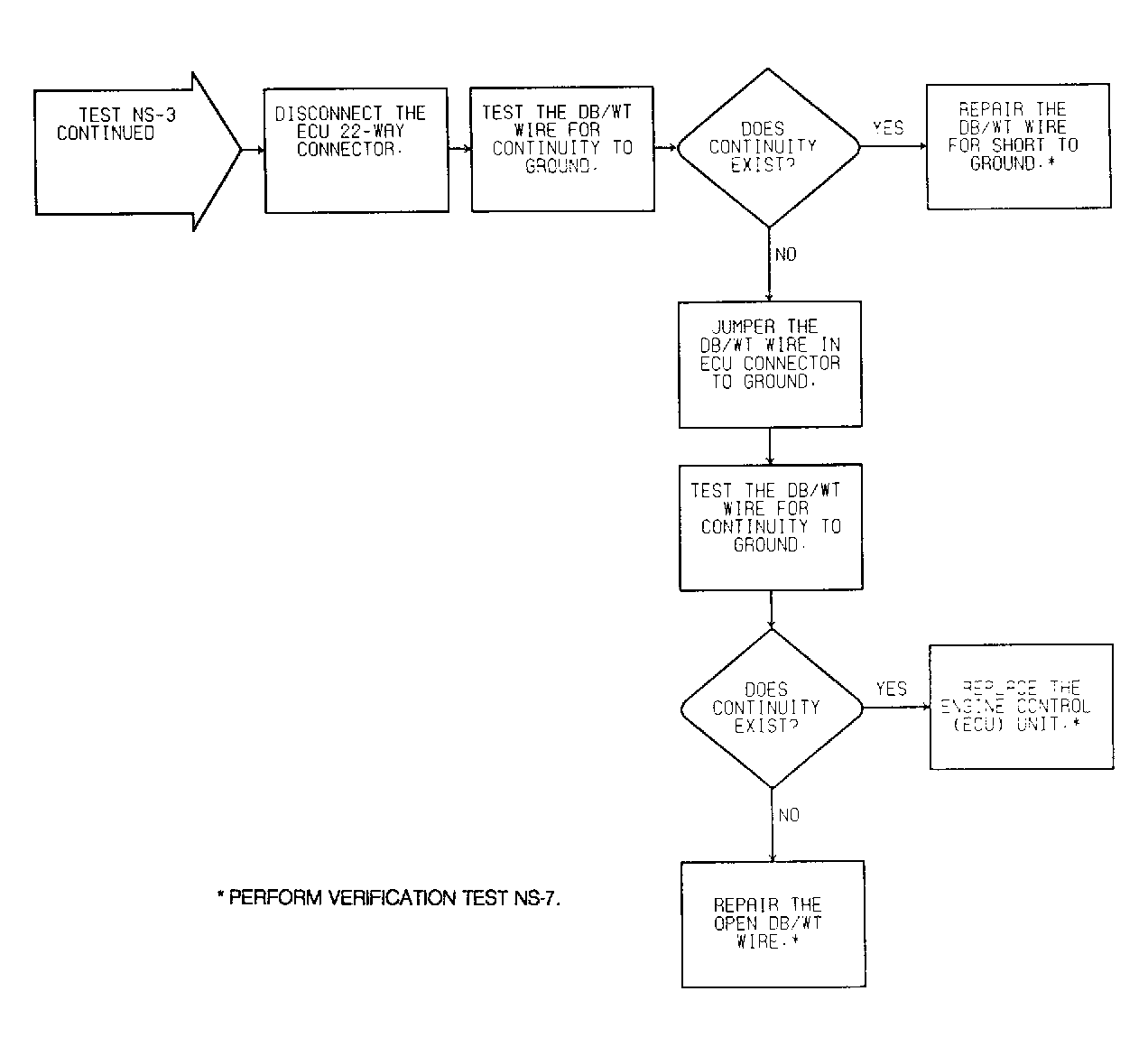

Fig 3: Test NS-3 Flow Chart - Code 22 - DOHC (2 Of 2) Testing Crank Angle Sensor
