NS-4: Testing Fuel Injector Circuit

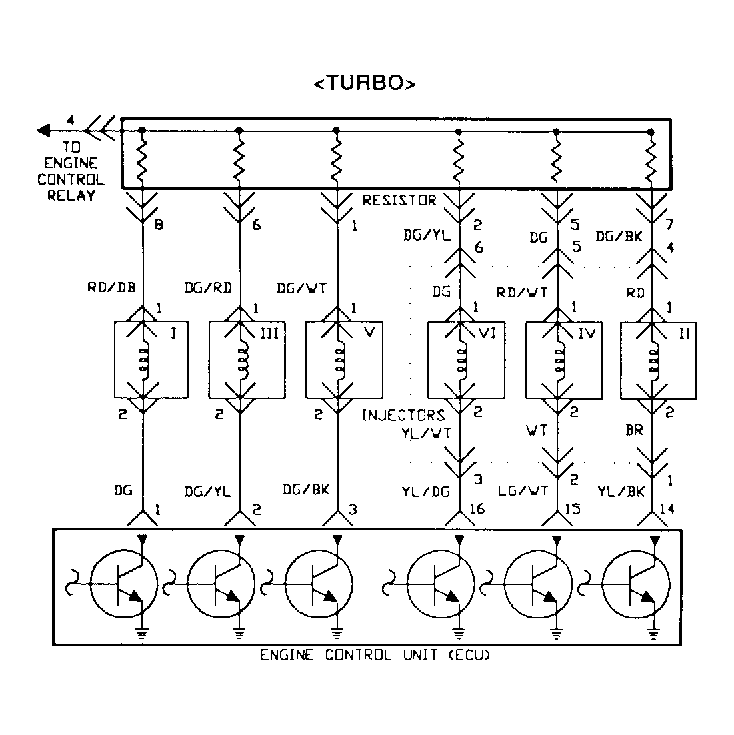

Fig 1: Test NS-4 Schematic (Turbo) - DOHC Testing Fuel Injector Circuit

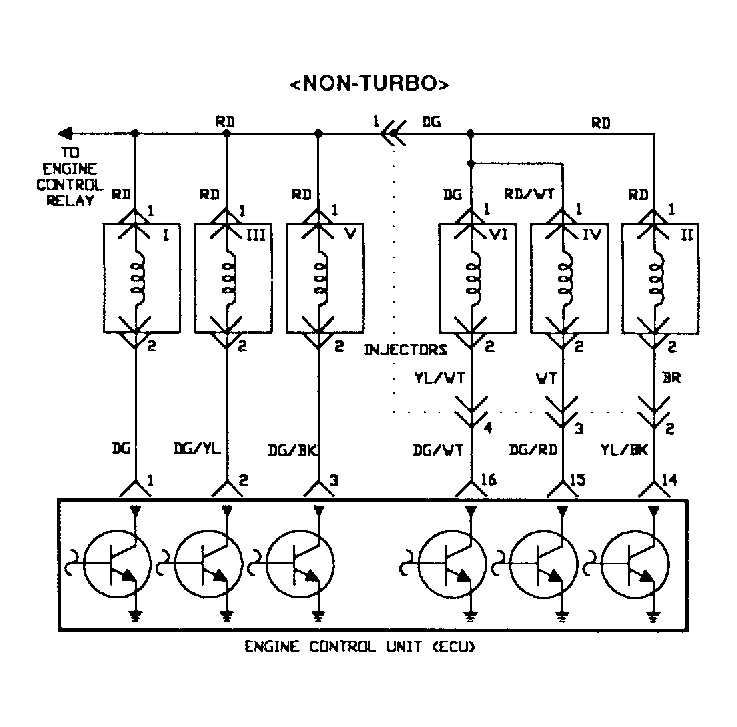

Fig 2: Test NS-4 Schematic (Non-Turbo) - DOHC Testing Fuel Injector Circuit

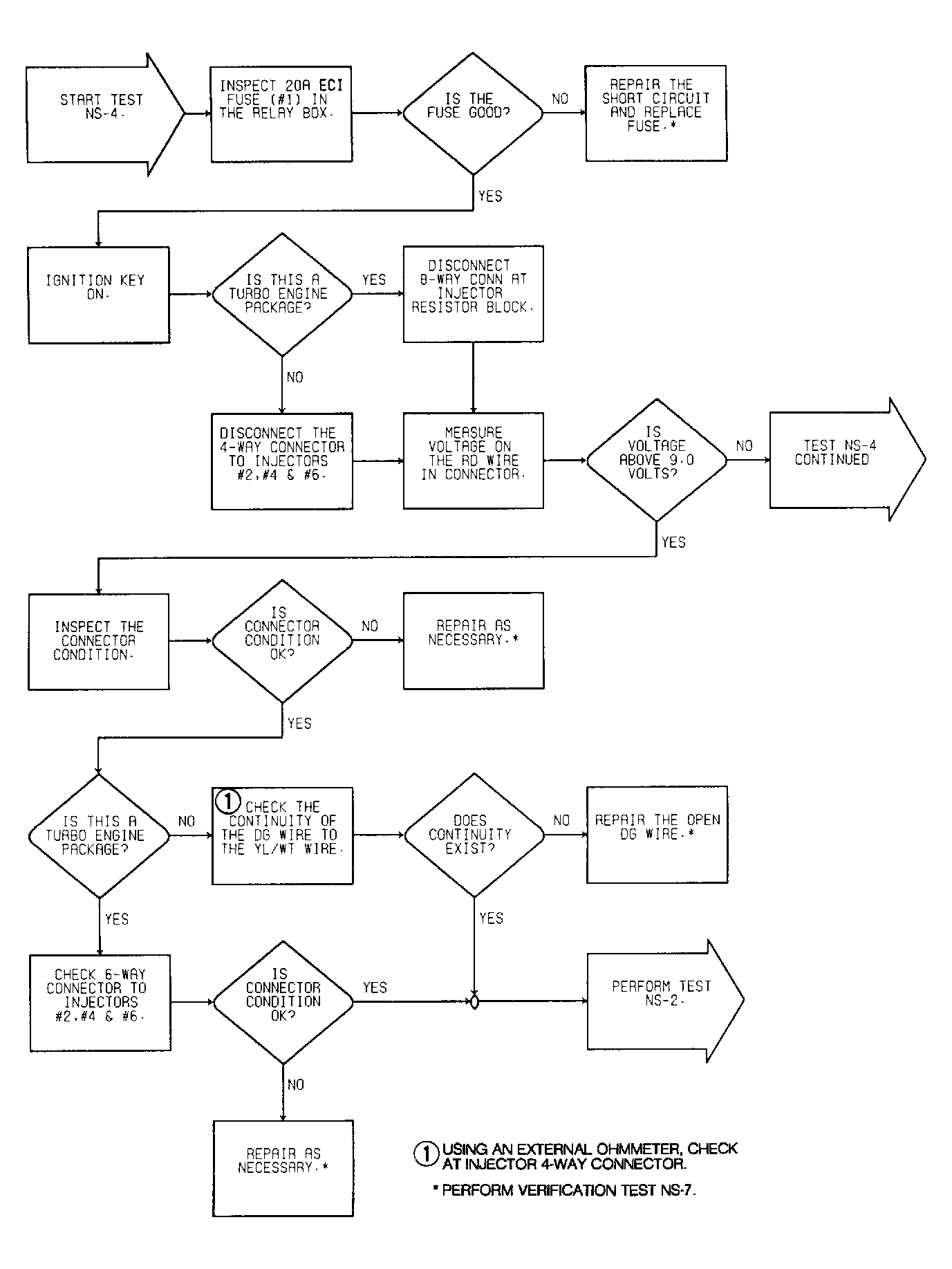

Fig 3: Test NS-4 Flow Chart - DOHC (1 Of 2) Testing Fuel Injector Circuit

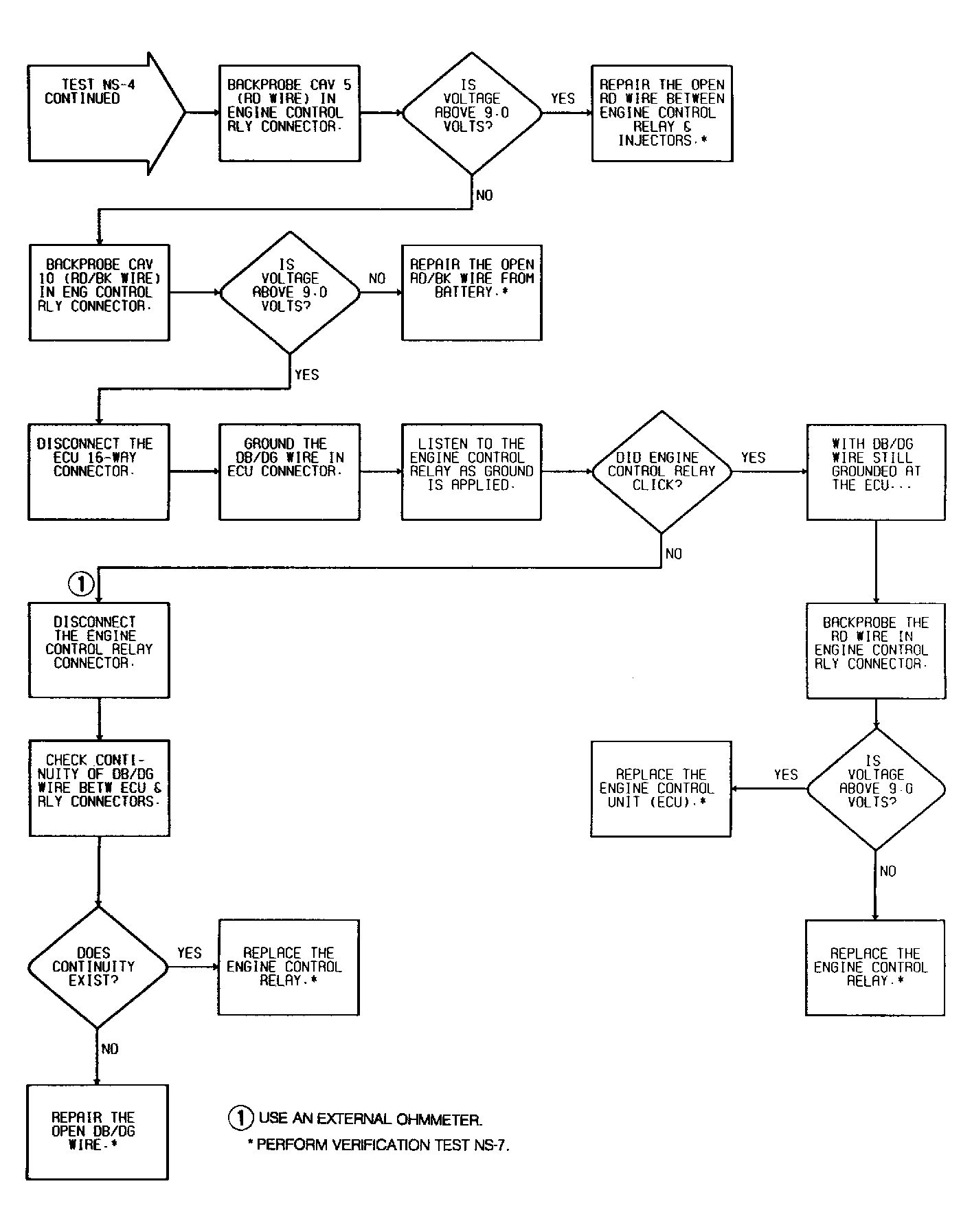

Fig 4: Test NS-4 Flow Chart - DOHC (2 Of 2) Testing Fuel Injector Circuit
