NS-4: Code 41, Testing Fuel Injector Circuit

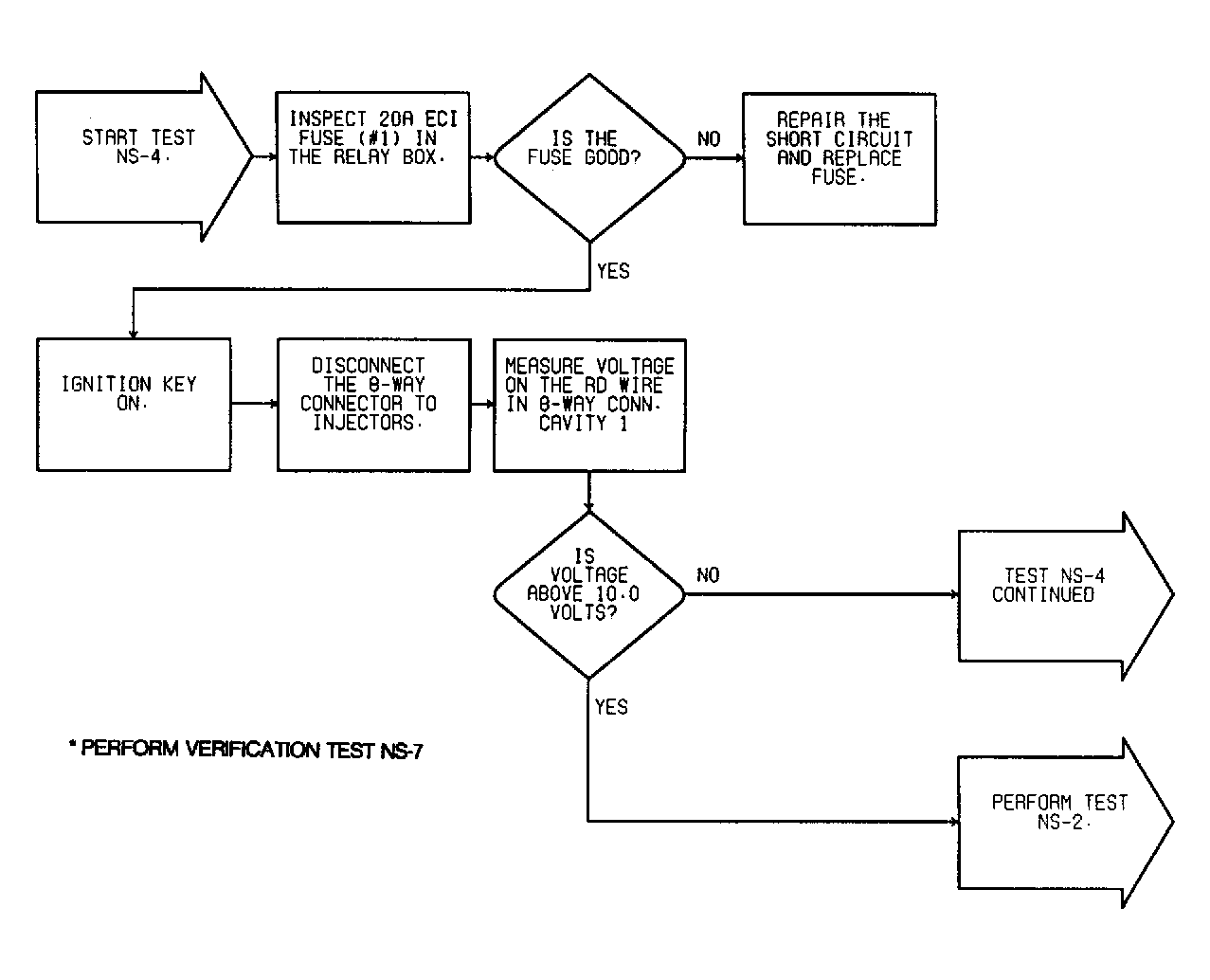

Fig 1: Test NS-4 Flow Chart - Code 41 - SOHC (1 Of 2) Testing Fuel Injector Circuit

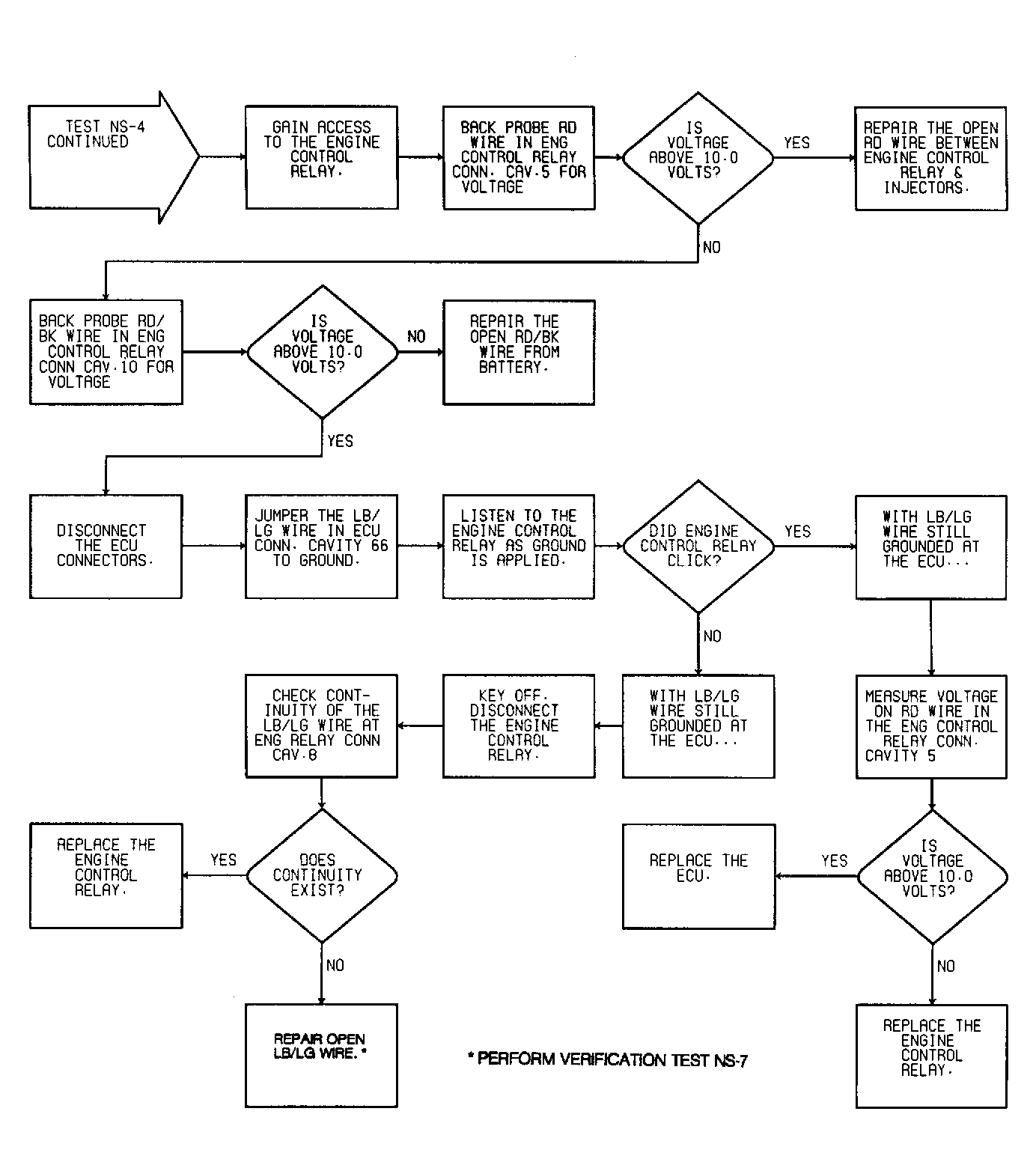

Fig 2: Test NS-4 Flow Chart - Code 41 - SOHC (2 Of 2) Testing Fuel Injector Circuit
