Dr-10: Code 24, Vehicle Speed Sensor Circuit

Fig 1: Test DR-10 Schematic - Code 24 - SOHC Vehicle Speed Sensor Circuit

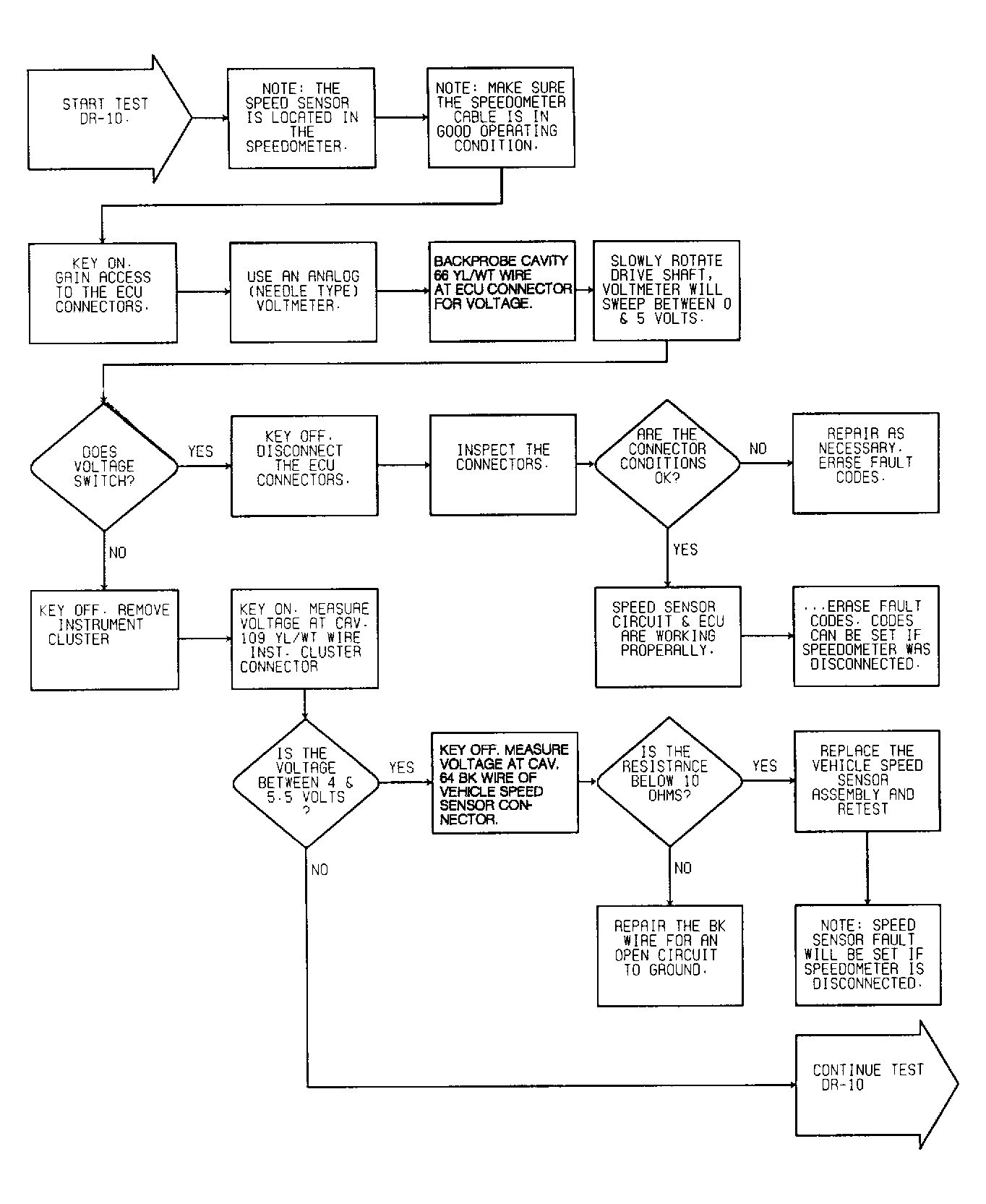

Fig 2: Test DR-10 Flow Chart - Code 24 - SOHC (1 Of 2) Vehicle Speed Sensor Circuit

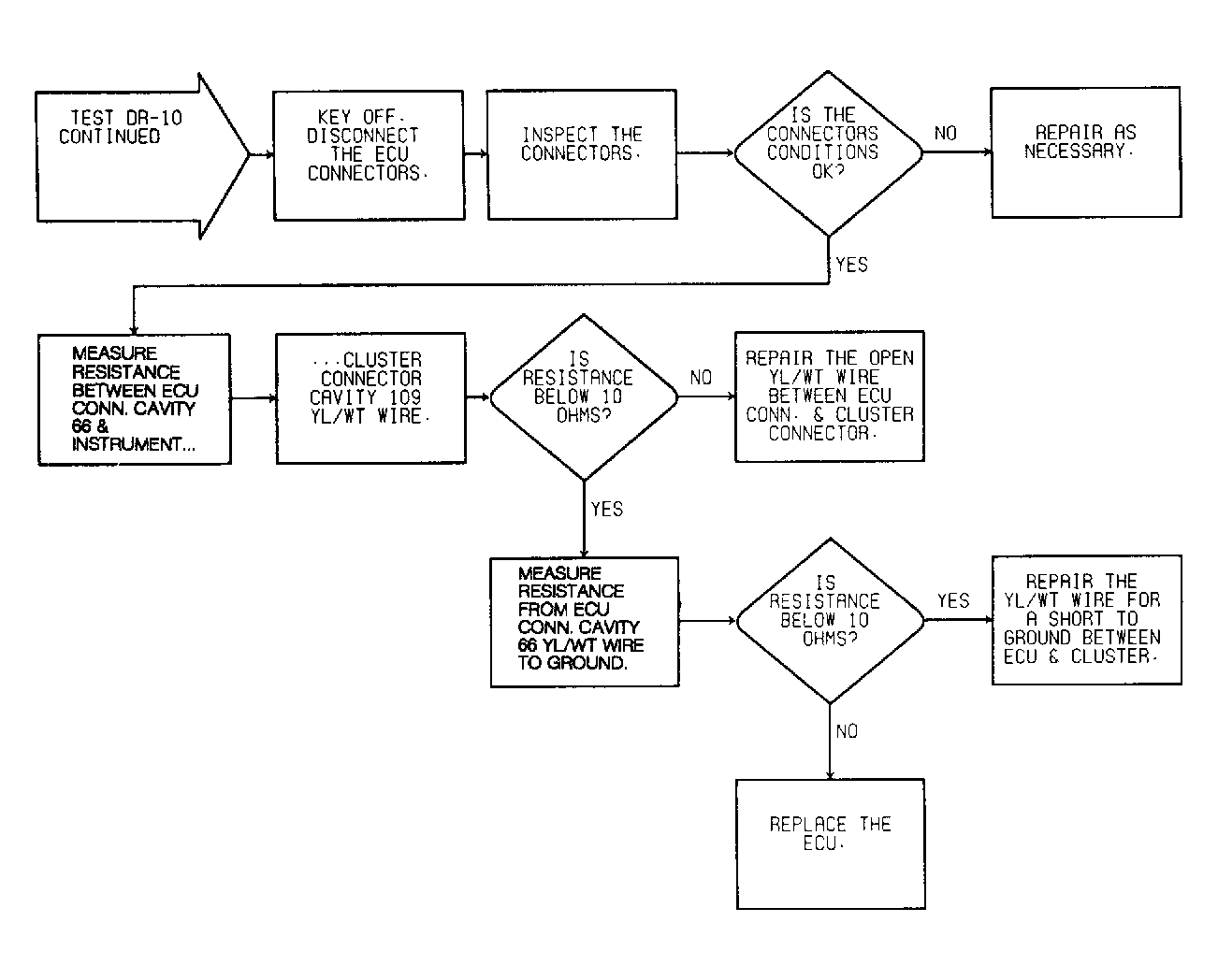

Fig 3: Test DR-10 Flow Chart - Code 24 - SOHC (2 Of 2) Vehicle Speed Sensor Circuit
