Dr-14: Code 43, EGR Temperature Sensor Circuit

Fig 1: Test DR-14 Schematic - Code 43 - SOHC (1 Of 2) EGR Temperature Sensor Circuit

Fig 2: Test DR-14 Schematic - Code 43 - SOHC (2 Of 2) EGR Temperature Sensor Circuit

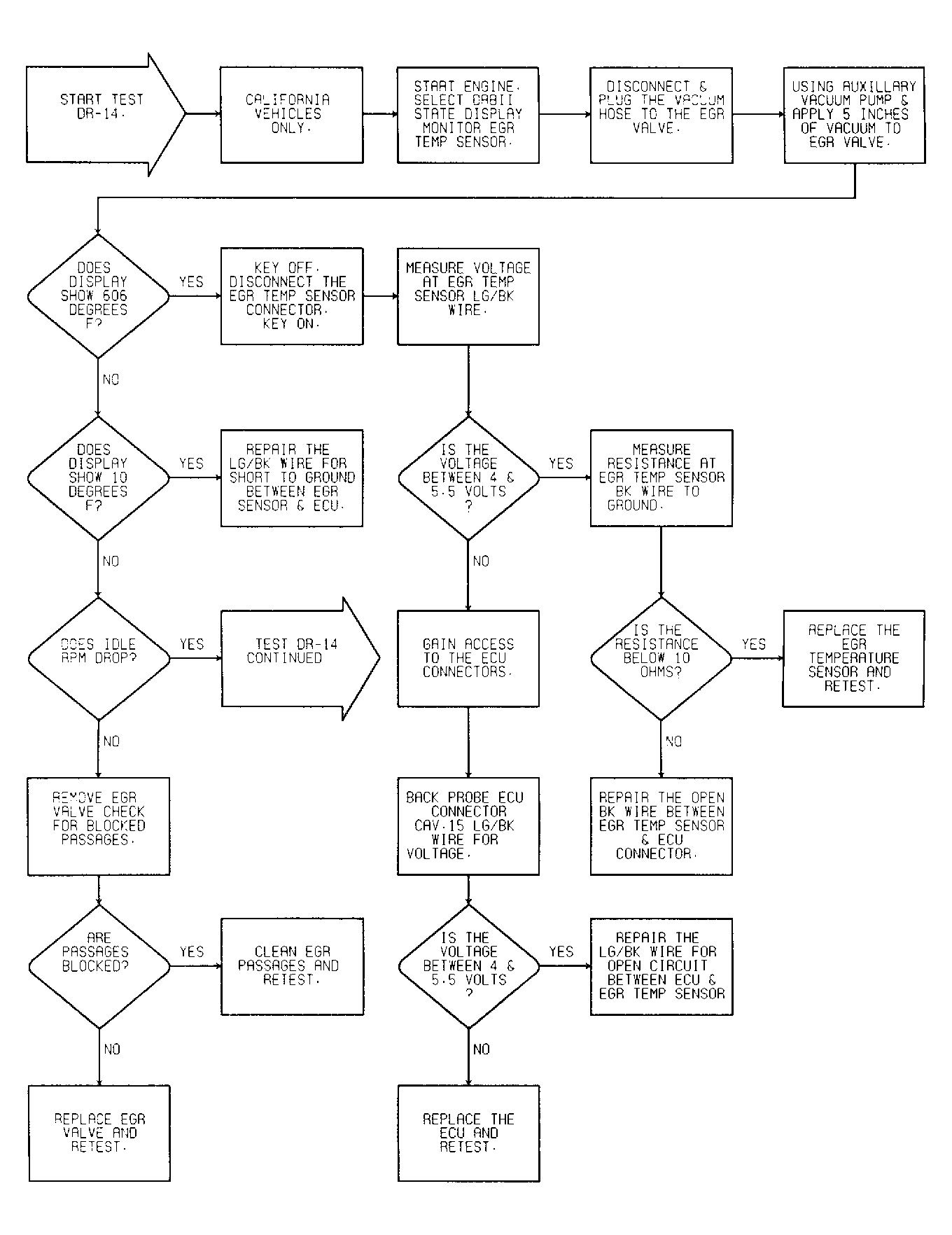

Fig 3: Test DR-14 Flow Chart - Code 43 - SOHC (1 Of 3) EGR Temperature Sensor Circuit

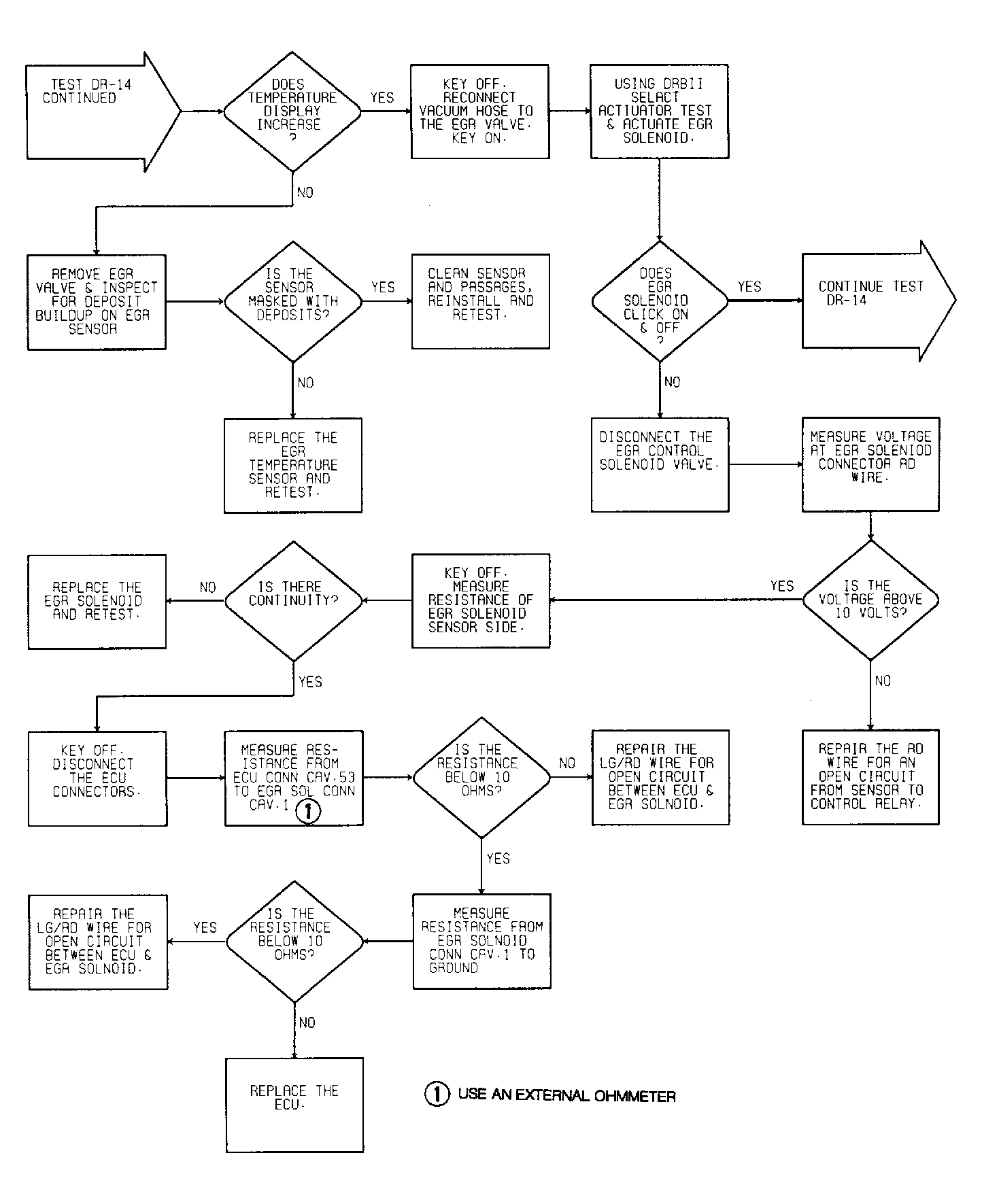

Fig 4: Test DR-14 Flow Chart - Code 43 - SOHC (2 Of 3) EGR Temperature Sensor Circuit

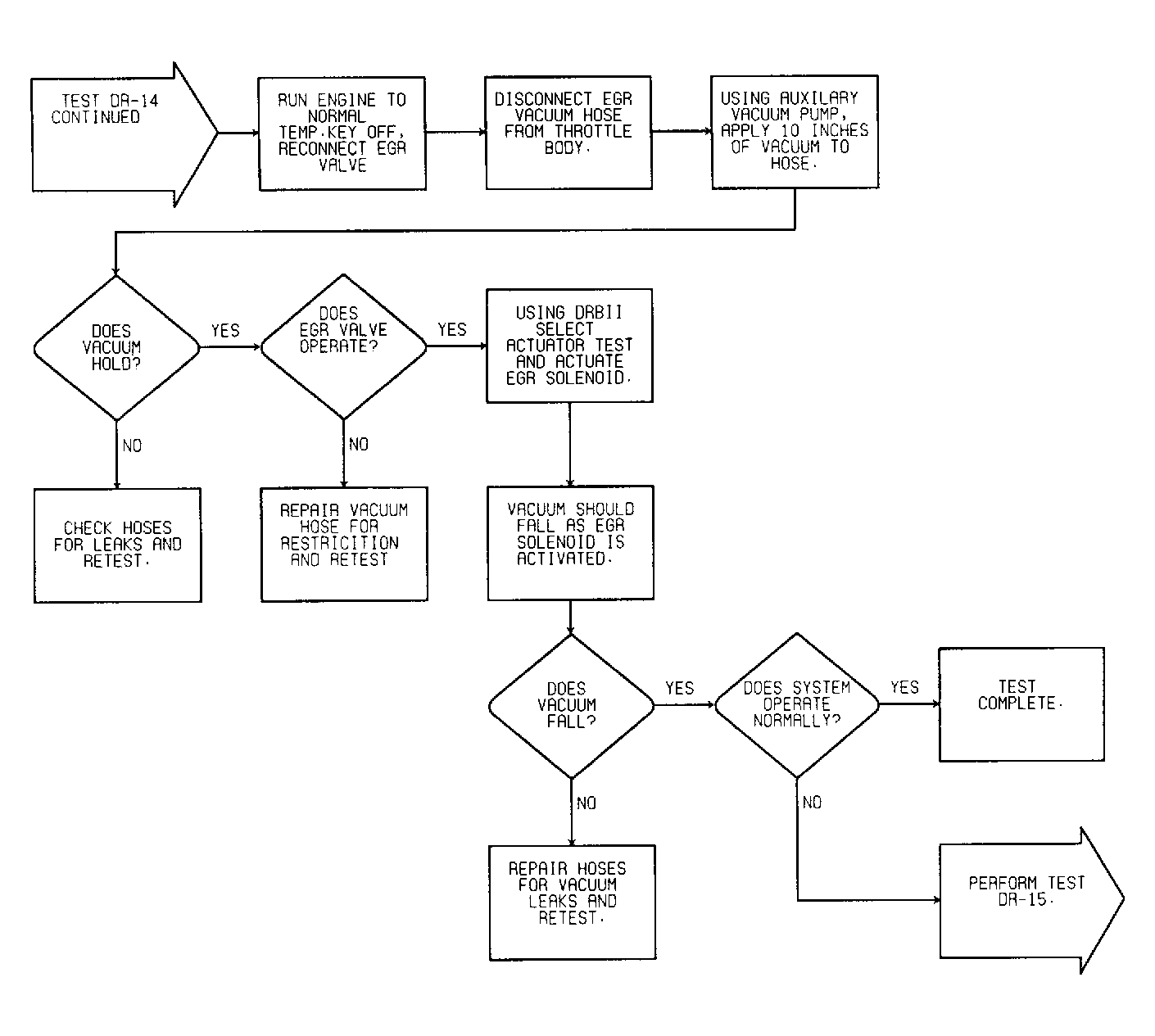

Fig 5: Test DR-14 Flow Chart - Code 43 - SOHC (3 Of 3) EGR Temperature Sensor Circuit
