Dr-16: No Fault Code Sensor Tests

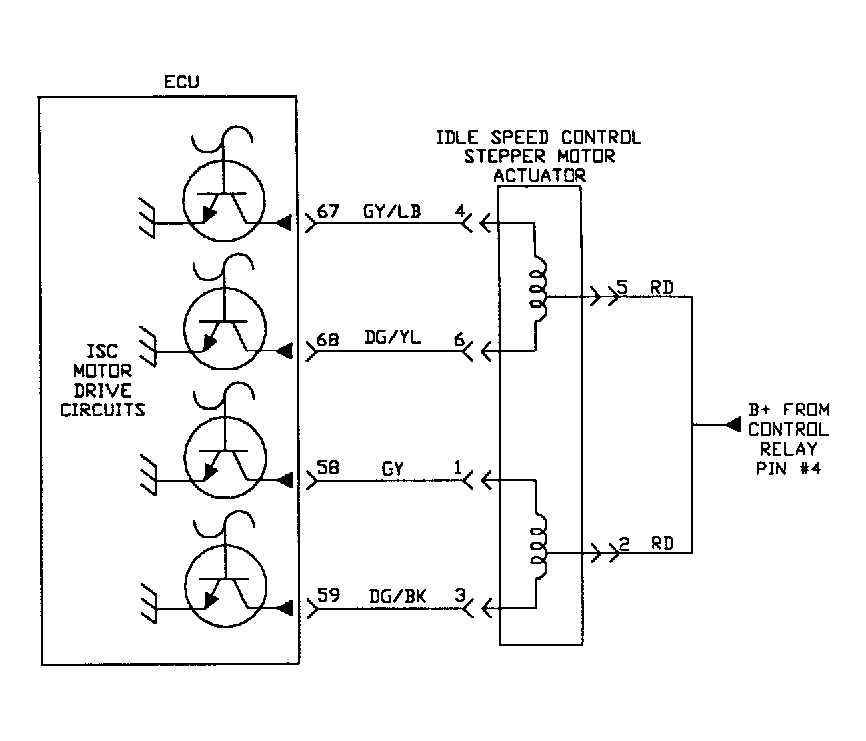

Fig 1: Test DR-16 Schematic - SOHC (1 Of 2) No Fault Code Sensor Tests

Fig 2: Test DR-16 Schematic - SOHC (2 Of 2) No Fault Code Sensor Tests

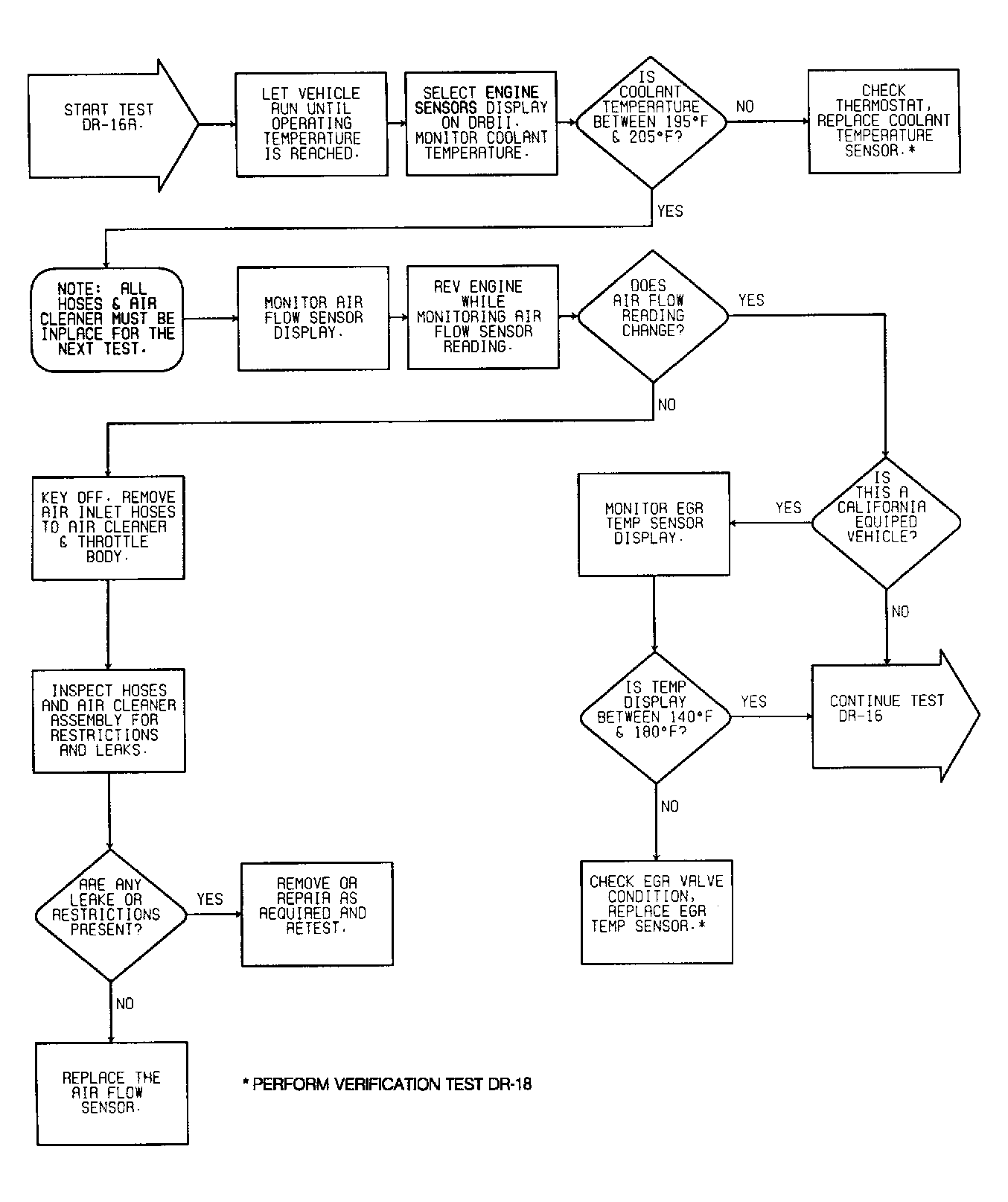

Fig 3: Test DR-16 Flow Chart - SOHC (1 Of 5) No Fault Code Sensor Tests

Fig 4: Test DR-16 Flow Chart - SOHC (2 Of 5) No Fault Code Sensor Tests

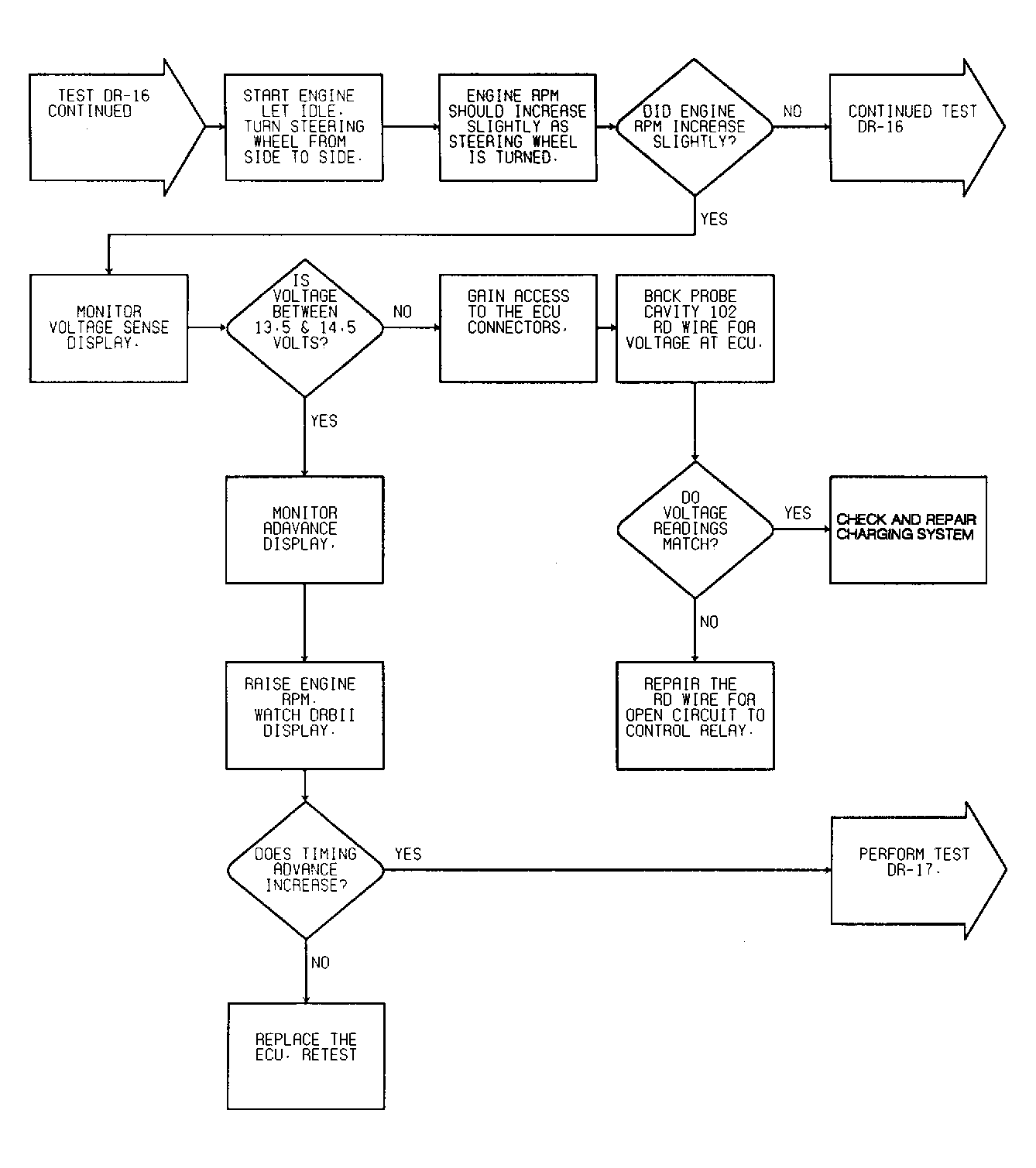

Fig 5: Test DR-16 Flow Chart - SOHC (3 Of 5) No Fault Code Sensor Tests

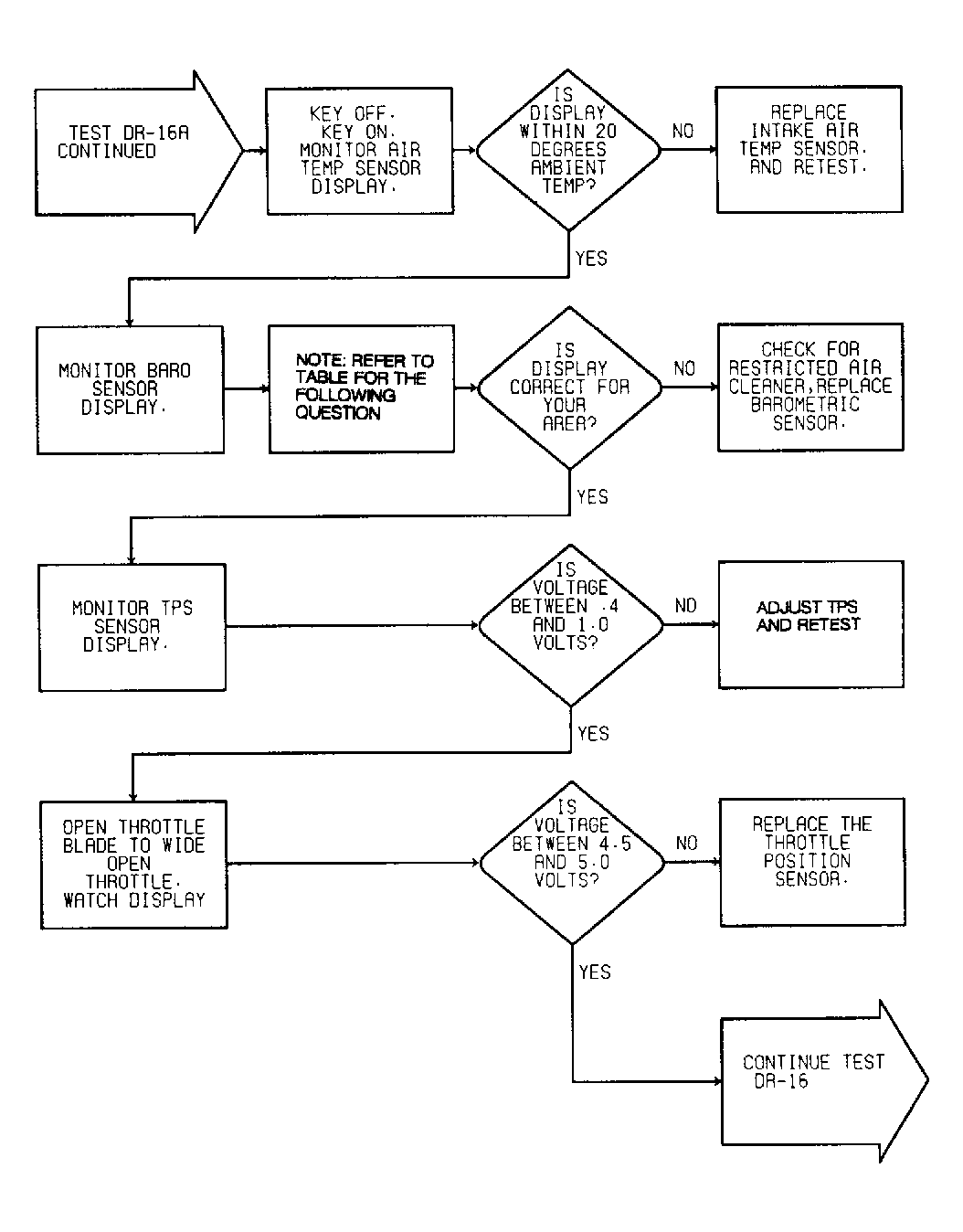

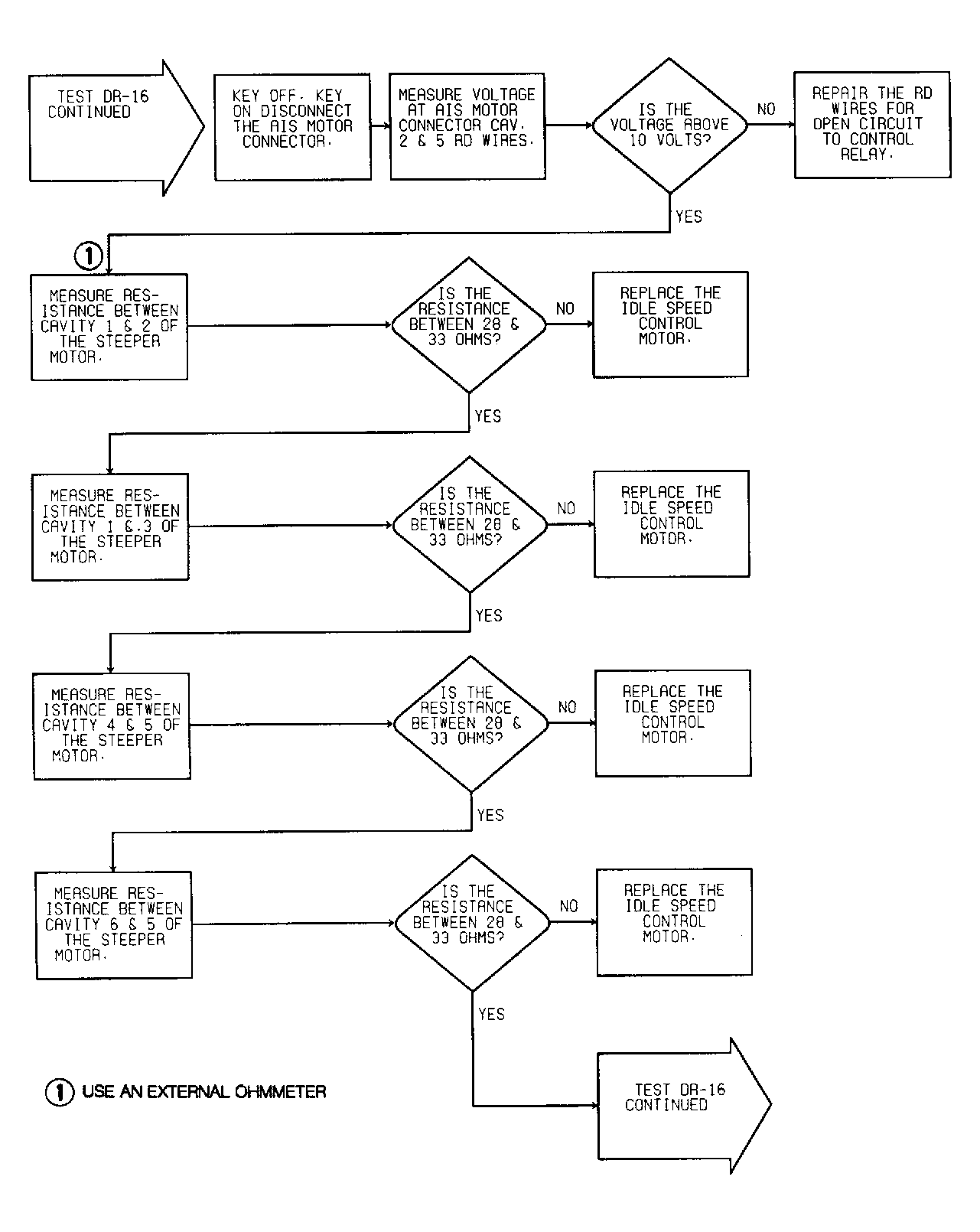

Fig 6: Test DR-16 Flow Chart - SOHC (4 Of 5) No Fault Code Sensor Tests

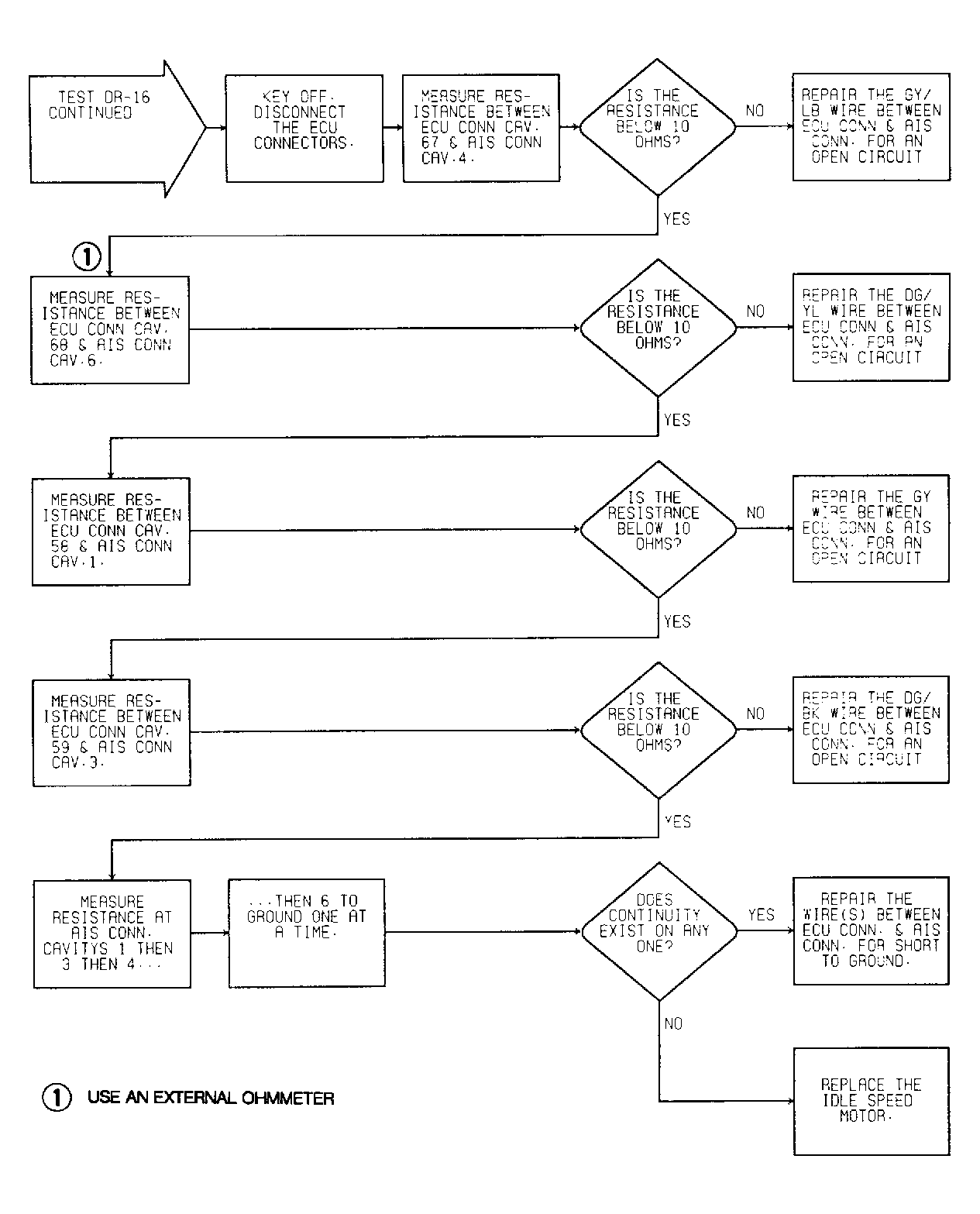

Fig 7: Test DR-16 Flow Chart - SOHC (5 Of 5) No Fault Code Sensor Tests
