Dr-11: Code 25, Barometric Pressure Sensor Circuit

Fig 1: Test DR-11 Schematic - Code 25 - SOHC Barometric Pressure Sensor Circuit

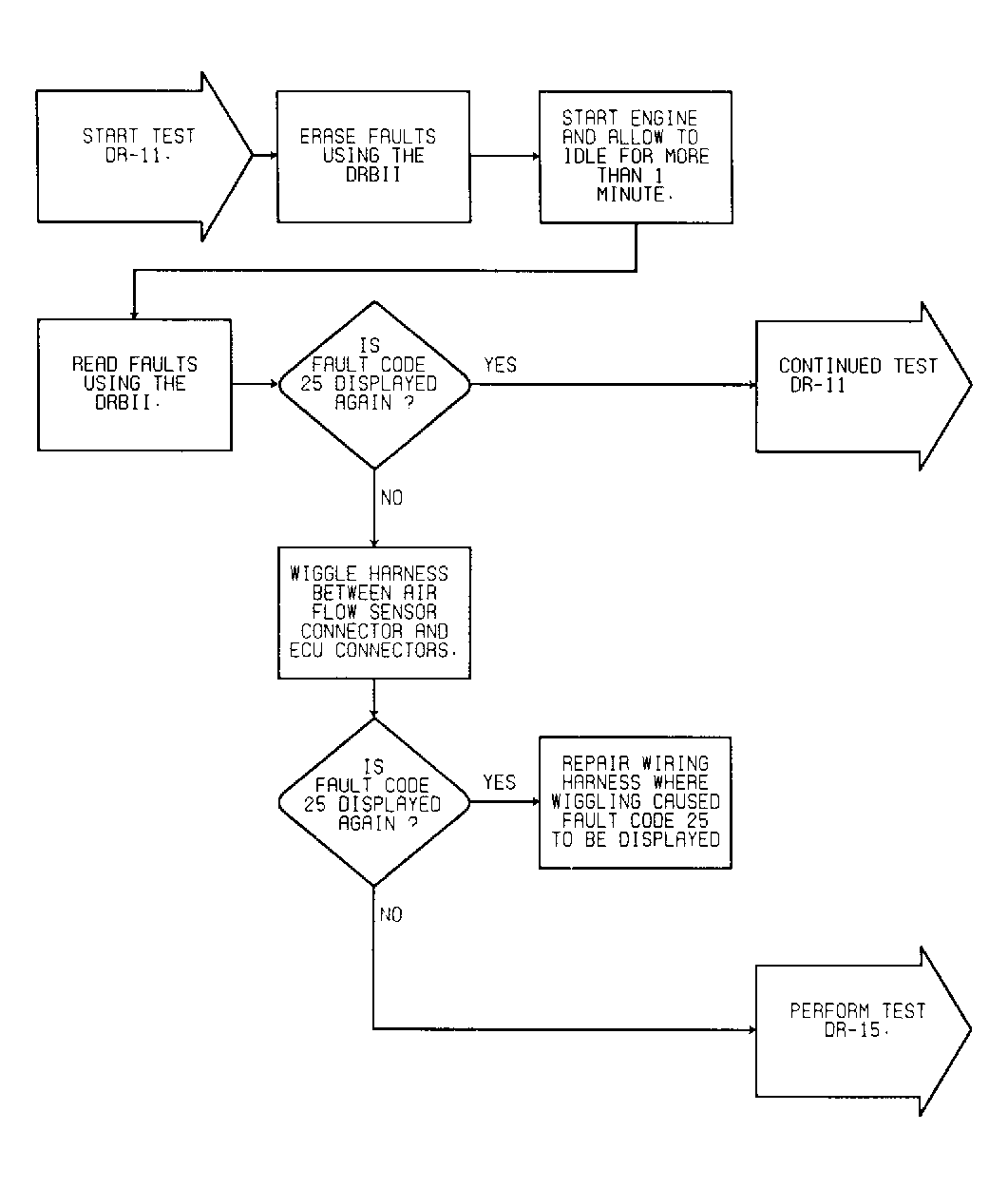

Fig 2: Test DR-11 Flow Chart - Code 25 - SOHC (1 Of 2) Barometric Pressure Sensor Circuit

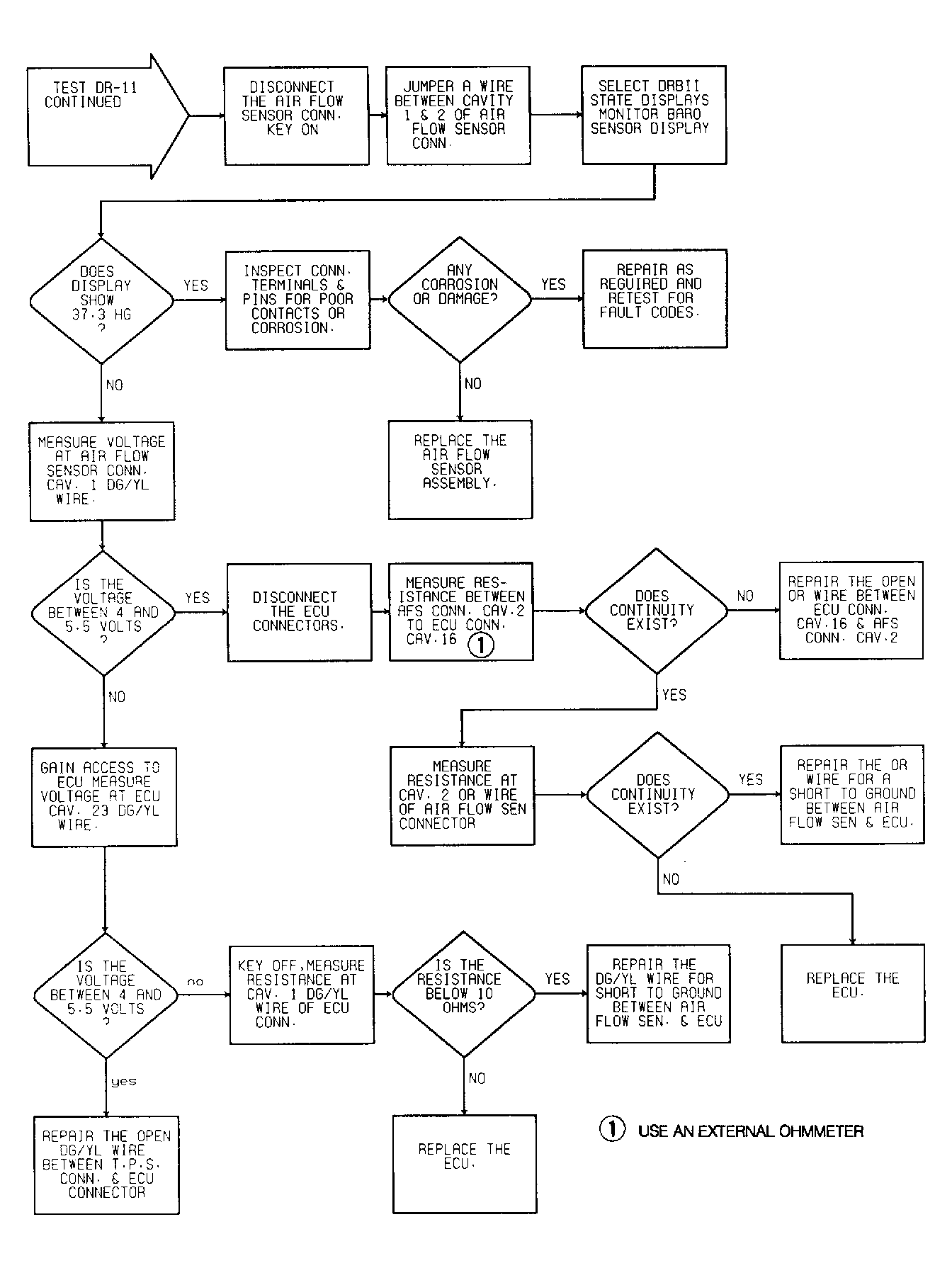

Fig 3: Test DR-11 Flow Chart - Code 25 - SOHC (2 Of 2) Barometric Pressure Sensor Circuit
