Dr-22: No Fault Code Sensor Tests

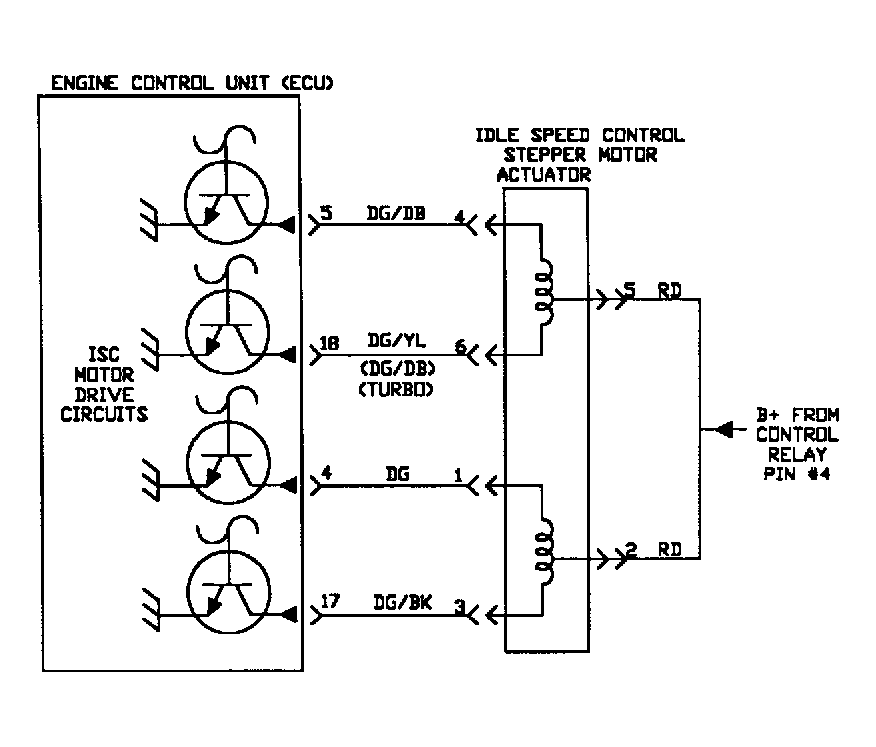

Fig 1: Test DR-22 Schematic - DOHC No Fault Code Sensor Tests

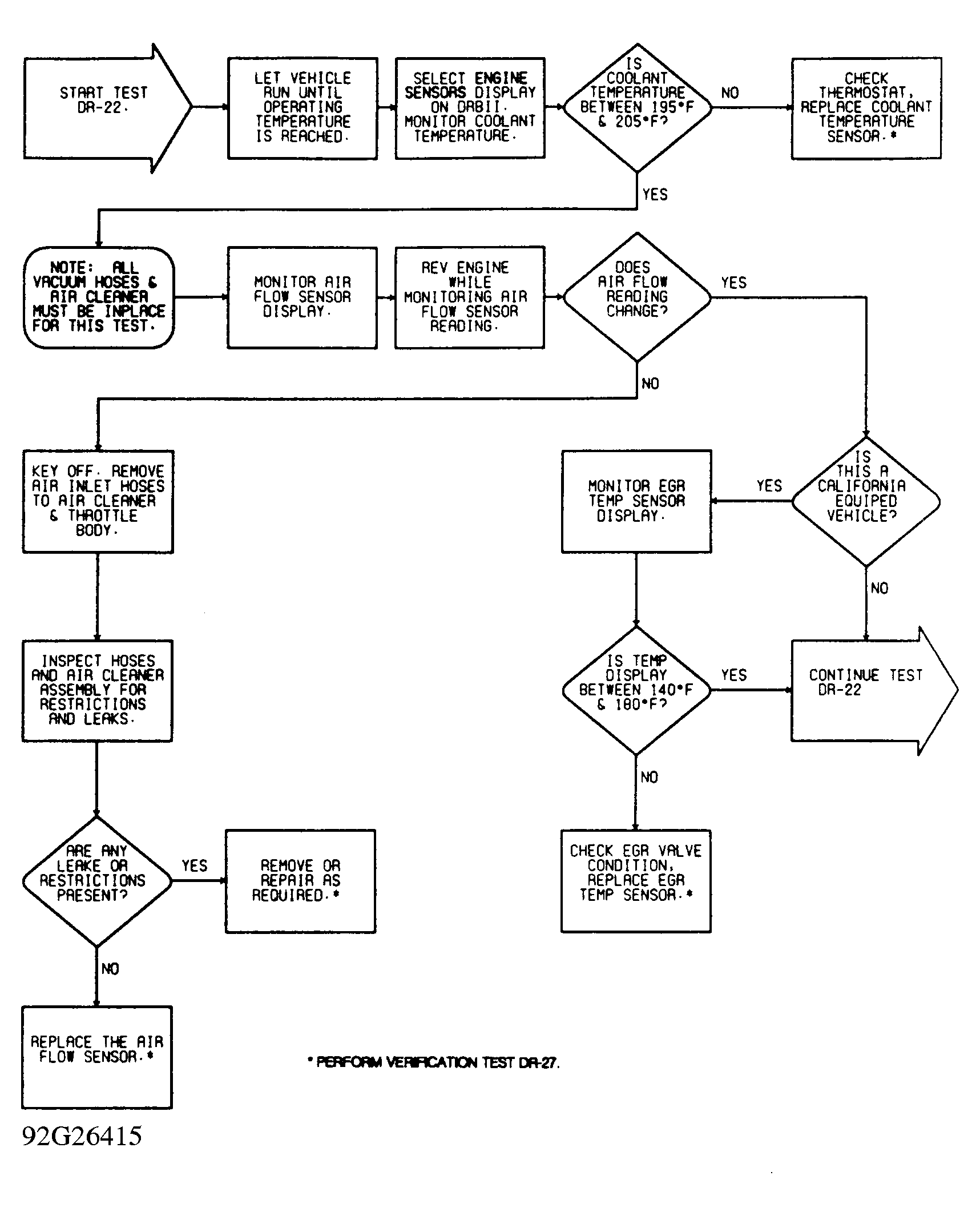

Fig 2: Test DR-22 Flow Chart - DOHC (1 Of 5) No Fault Code Sensor Tests

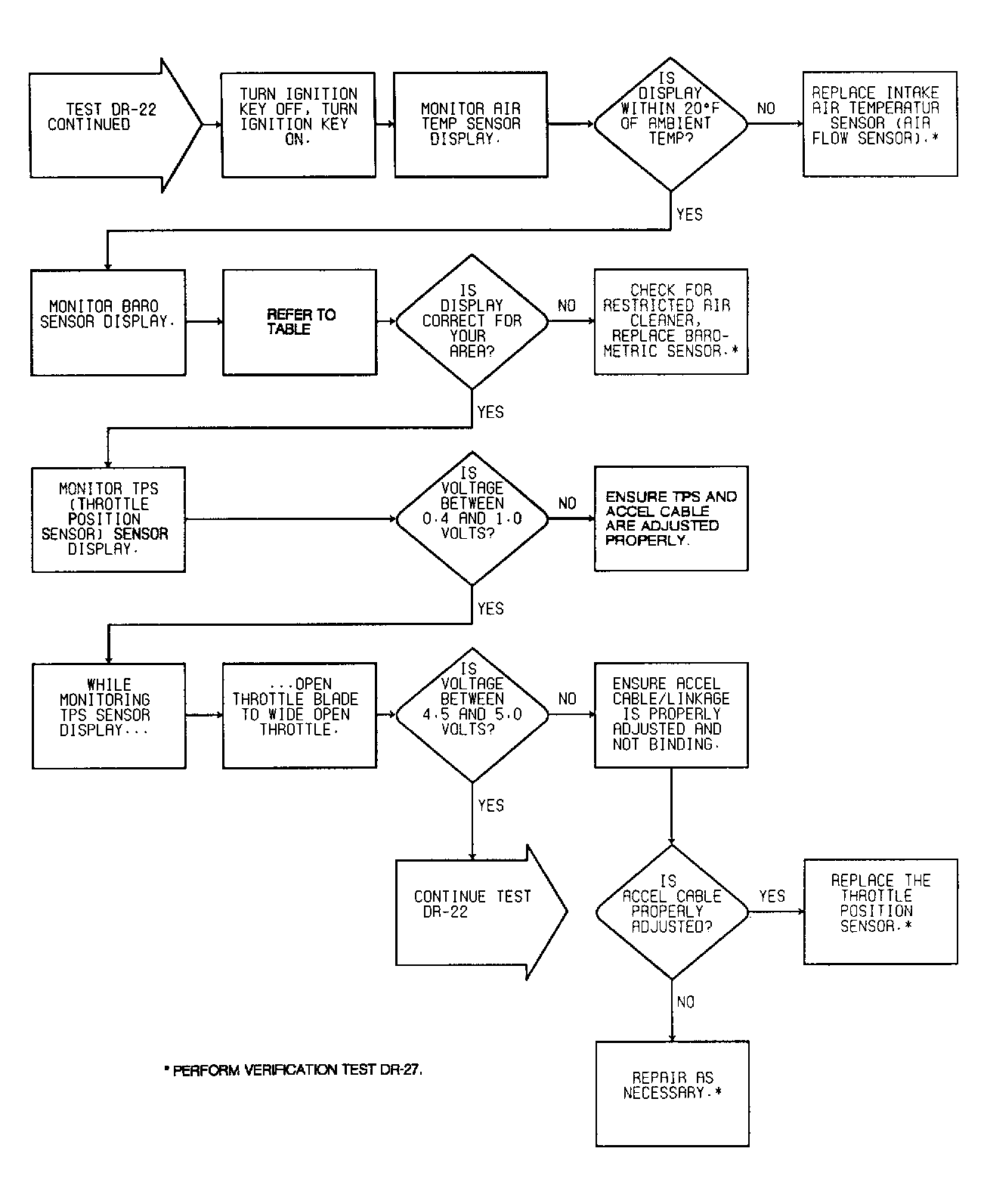

Fig 3: Test DR-22 Flow Chart - DOHC (2 Of 5) No Fault Code Sensor Tests

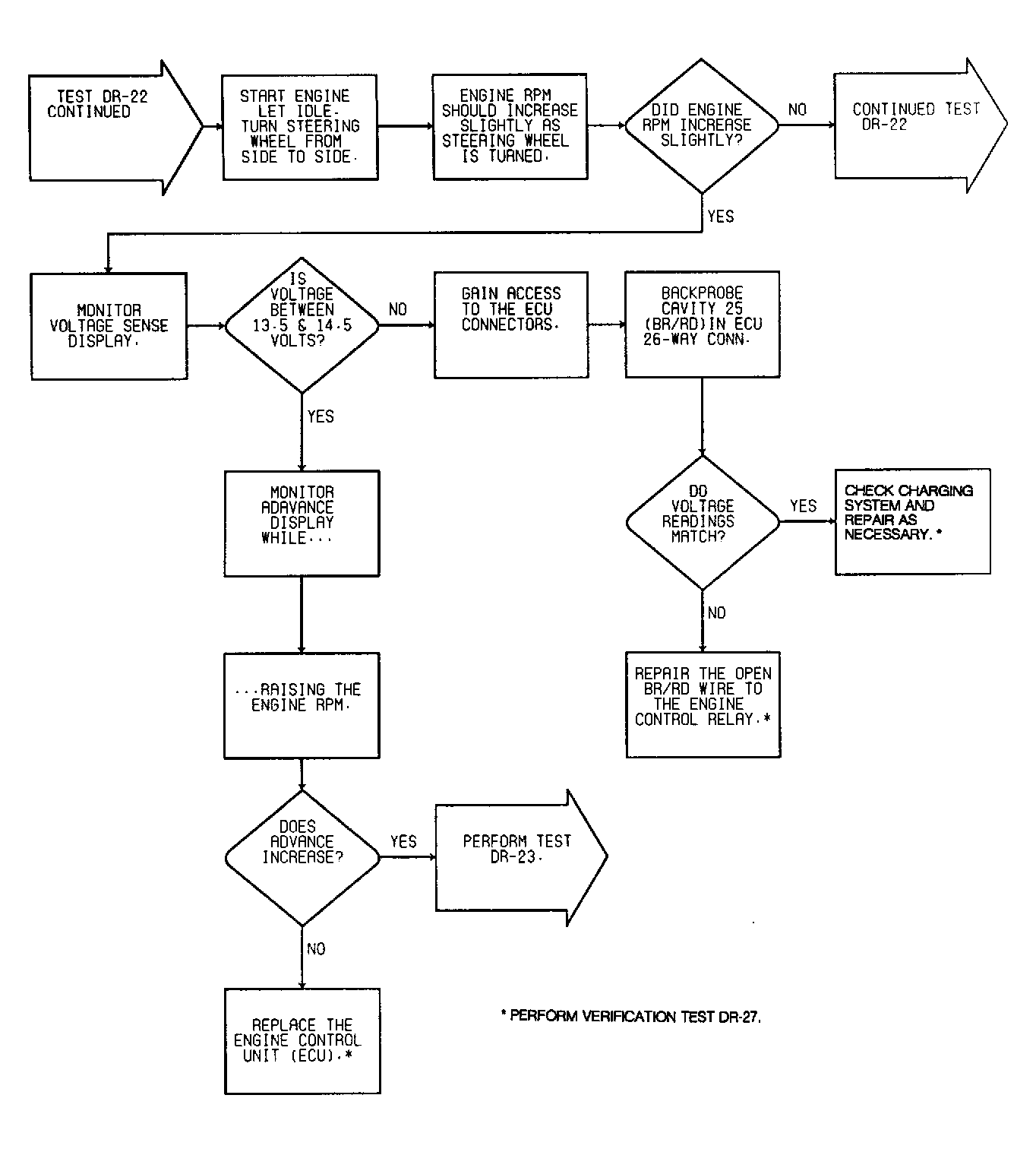

Fig 4: Test DR-22 Flow Chart - DOHC (3 Of 5) No Fault Code Sensor Tests

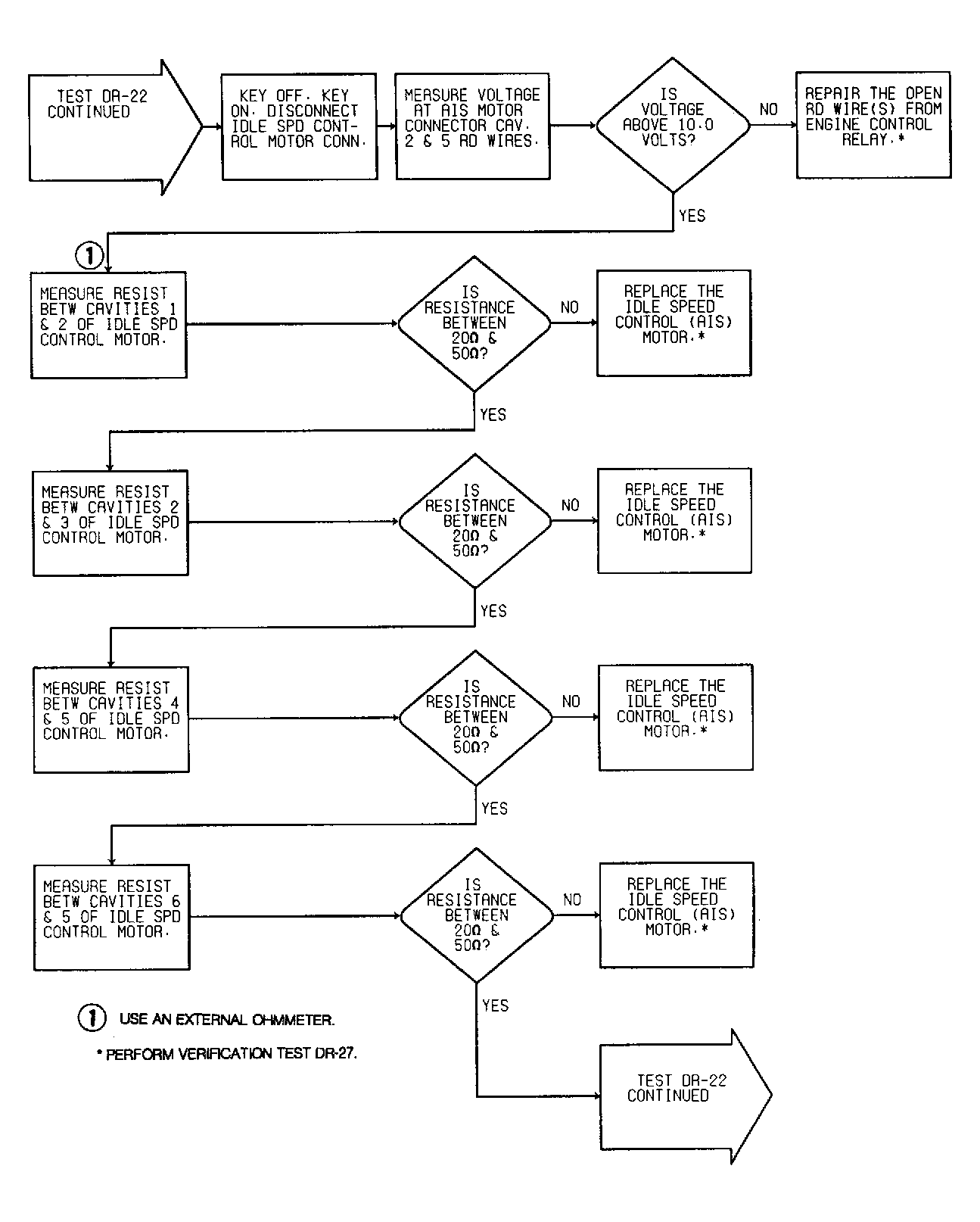

Fig 5: Test DR-22 Flow Chart - DOHC (4 Of 5) No Fault Code Sensor Tests

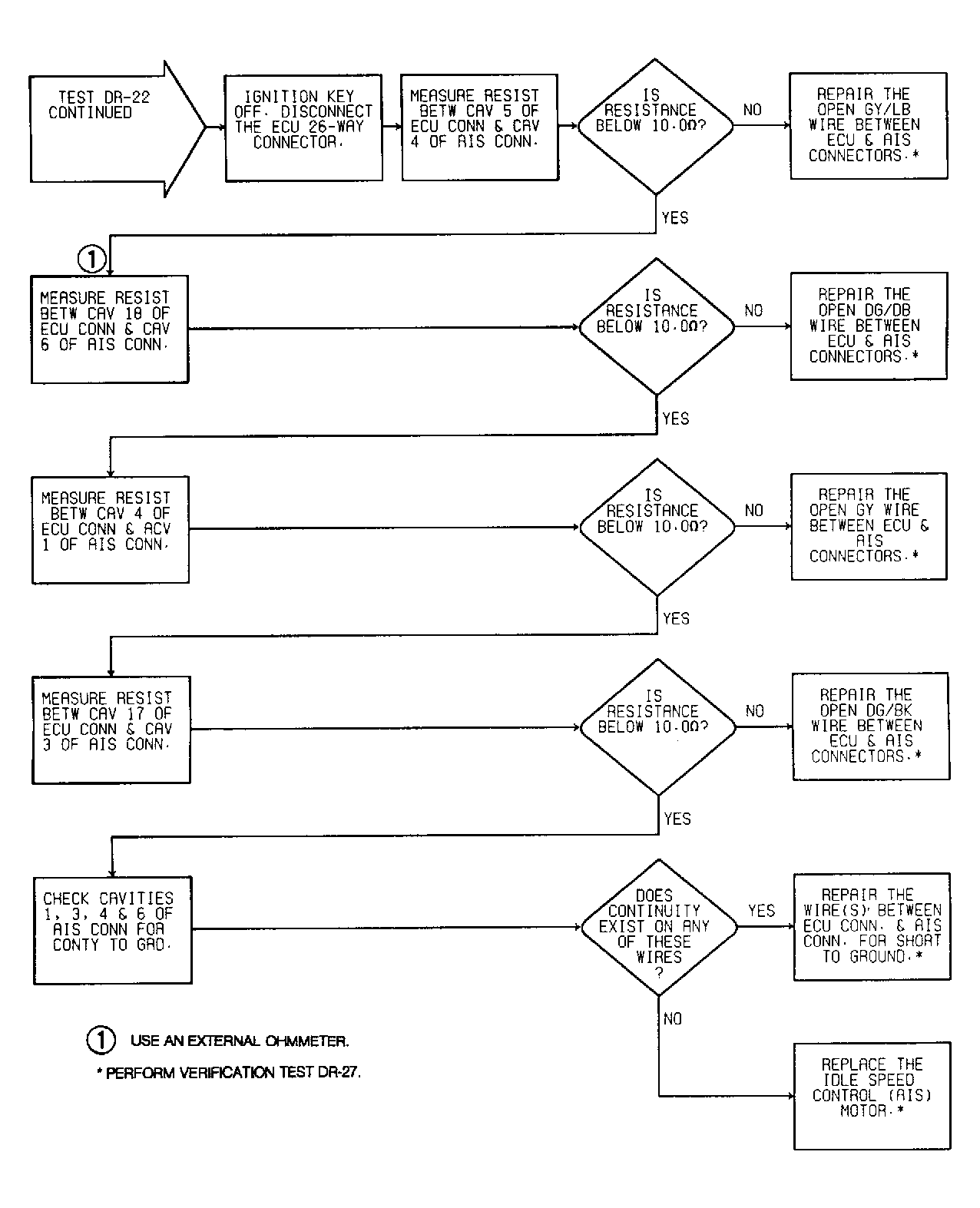

Fig 6: Test DR-22 Flow Chart - DOHC (5 Of 5) No Fault Code Sensor Tests
