Power Window Switch
Power Window Switch

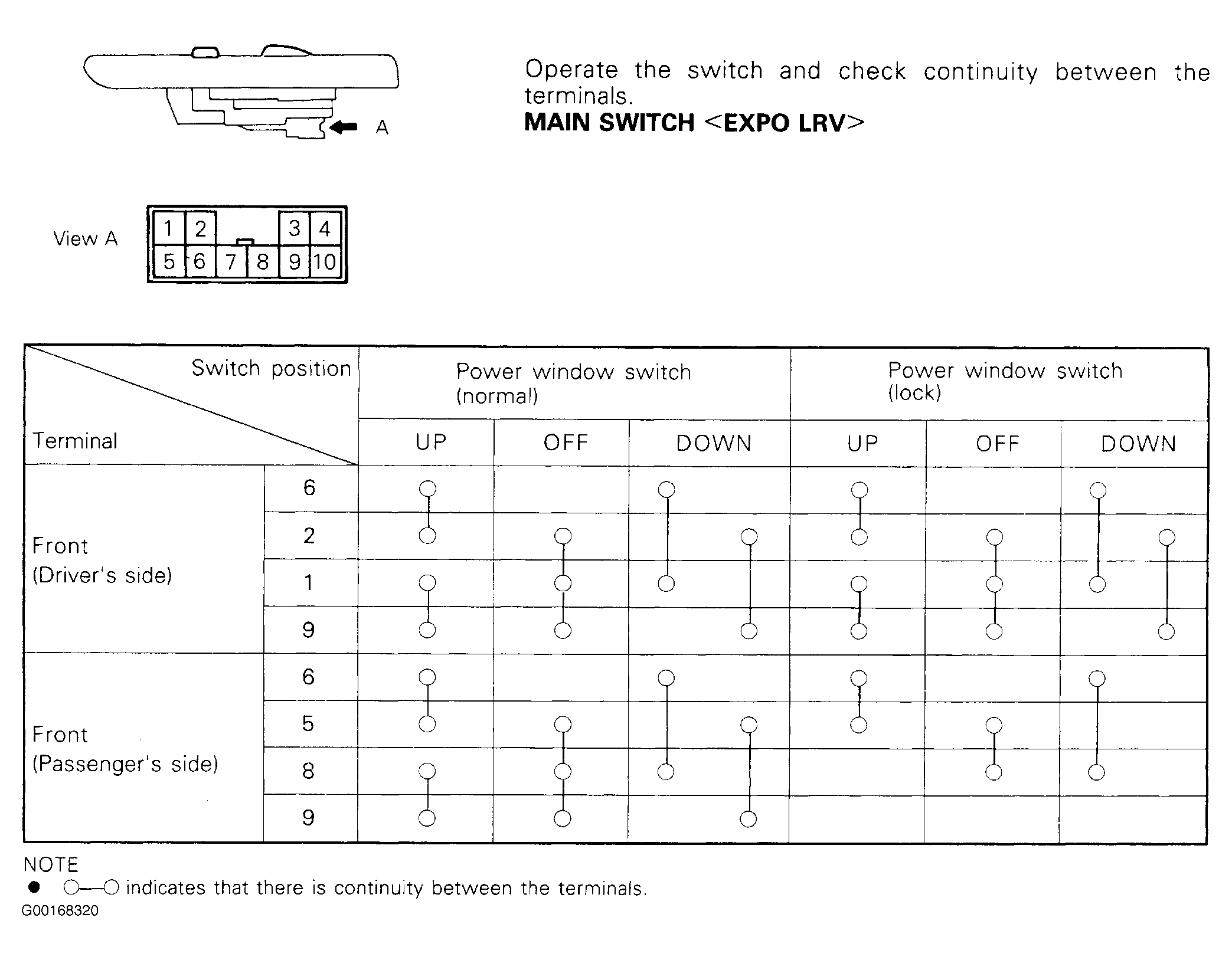

Fig 1: Testing Power Window Switch (Expo LRV)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Testing Main Switch (Expo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
